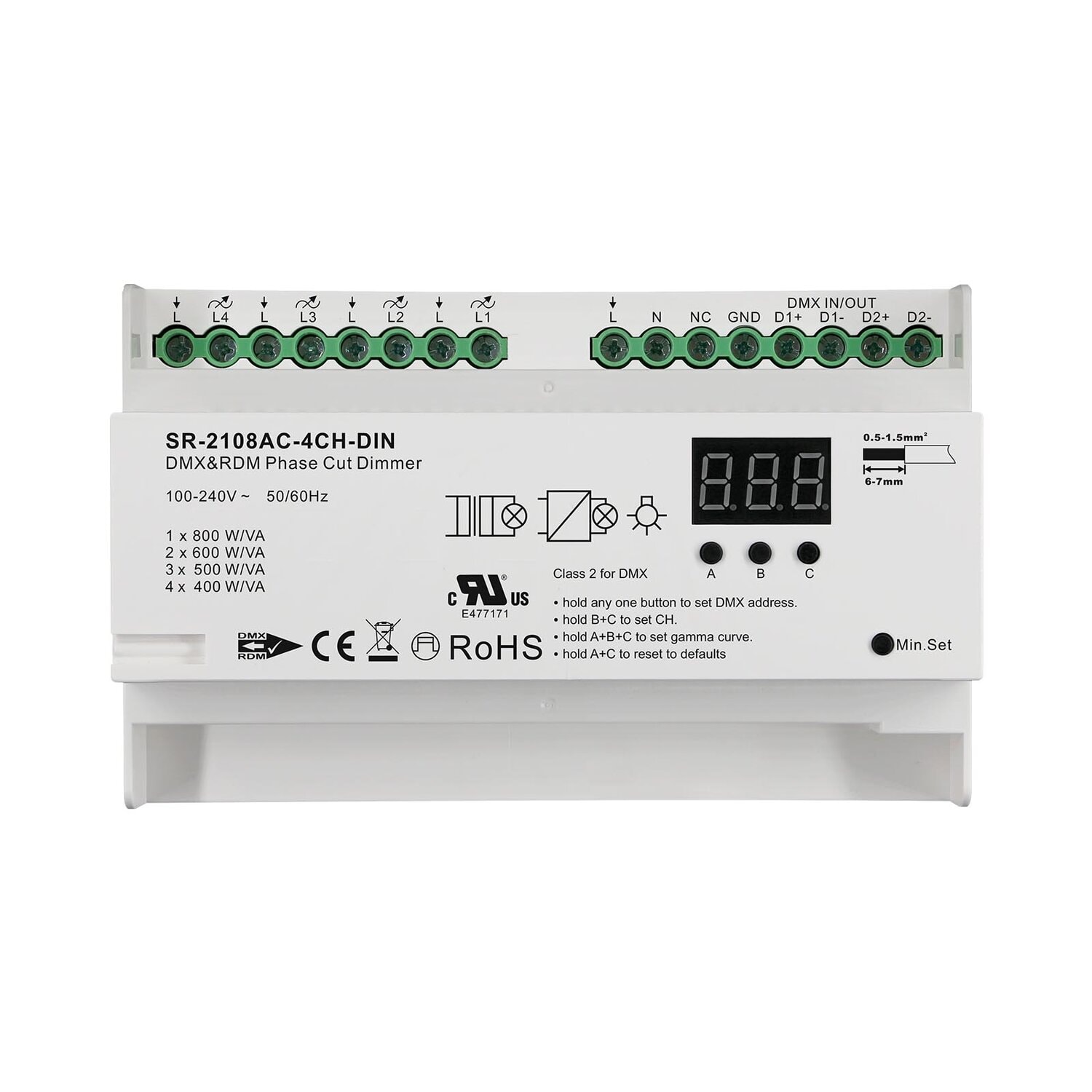

The SR-2108AC-4CH-DIN is a Triac DMX512 dimmer designed with 100-240VAC input and 100-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. The DMX512 dimmer is designed with standard DMX512 compliant control interface with digital numeric digital display to set and show DMX address freely.
The AC dimmer is both triac dimmable and mosfet dimmable and comes with 2 channel and maximum 1.2A per channel output. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness.
Also it is easy to delete the minimum brightness. The DMX512 triac dimmer can be compatible with a variety of DMX512 masters.
| Rated Input | Voltage | 100VAC | 100VAC | 120VAC | 120VAC | 240VAC | 240VAC | 100VAC | 100VAC | 120VAC | 120VAC | 240VAC | 240VAC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Input | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Input | Current | 8A | 4A | 8A | 4A | 6.5A | 1.67A | 8A | 4A | 8A | 4A | 6.5A | 3.5A |
| Rated Input | Power | 800W | 400W | 800W | 400W | 1600W | 400W | 800W | 400W | 800W | 400W | 1600W | 800W |
| Rated Output | Voltage | 100VAC | 100VAC | 120VAC | 120VAC | 240VAC | 240VAC | 100VAC | 100VAC | 120VAC | 120VAC | 240VAC | 240VAC |
| Rated Output | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Output | Max. Current | 2.0A/ch * 4 | 4.0A/ch * 1 | 2.0A/ch * 4 | 4.0A/ch * 1 | 4.0A/ch * 4 | 1.67A/ch * 1 | 2.0A/ch * 4 | 4.0A/ch * 1 | 2.0A/ch * 4 | 4.0A/ch * 1 | 4.0A/ch * 4 | 3.5A/ch * 1 |
| Rated Output | Max. Power | 200W/ch * 4 | 400W/ch * 1 | 200W/ch * 4 | 400W/ch * 1 | 400W/ch * 4 | 400W/ch * 1 | 200W/ch * 4 | 400W/ch * 1 | 200W/ch * 4 | 400W/ch * 1 | 400W/ch * 4 | 800W/ch * 1 |
| Rated Output | Load types | Resistive (LED Arrays) |
Resistive (LED Arrays) |
Resistive (LED Arrays) |
Resistive (LED Arrays) |
Resistive (LED Arrays) |
Resistive (LED Arrays) |
Tungsten (Incandescent, Halogen, Low voltage transformers, Electronic ballasts, LED drivers) |
Tungsten (Incandescent, Halogen, Low voltage transformers, Electronic ballasts, LED drivers) |
Tungsten (Incandescent, Halogen, Low voltage transformers, Electronic ballasts, LED drivers) |
Tungsten (Incandescent, Halogen, Low voltage transformers, Electronic ballasts, LED drivers) |
Tungsten (Incandescent, Halogen, Low voltage transformers, Electronic ballasts, LED drivers) |
Tungsten (Incandescent, Halogen, Low voltage transformers, Electronic ballasts, LED drivers) |
