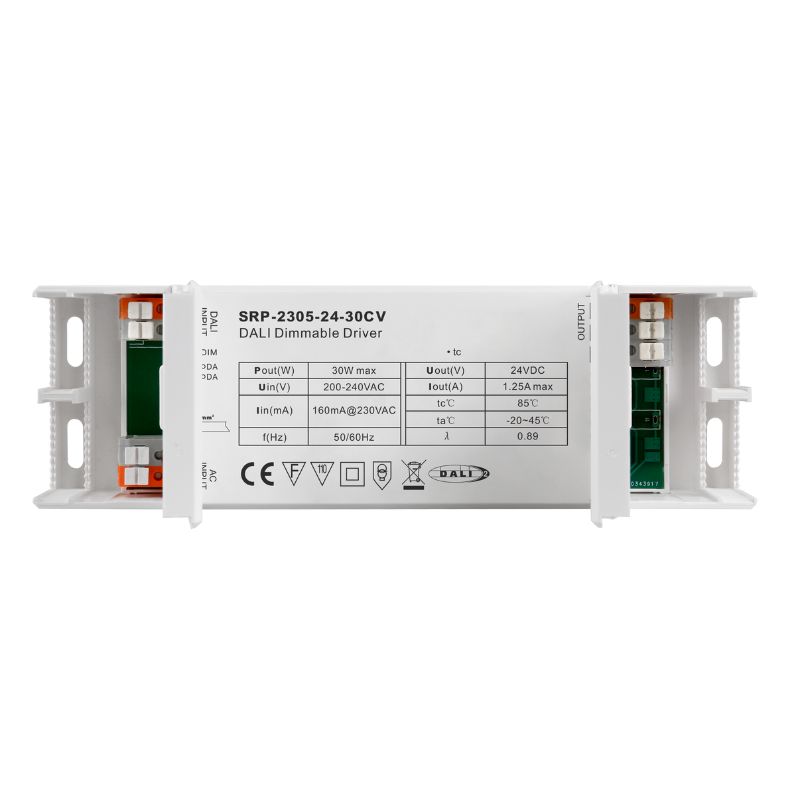

Product Description. This 1-channel 24VDC constant voltage output DALI LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2. With built-in DALI-2/Push interface and class Ⅱ power supply, this DALI DT6 device has full isolated plastic case. Besides, with built-in active PFC function, its PF > 0.9 and its efficiency > 86%. This driver’s dimming method is PWM digital dimming, with standard DALI logarithmic dimming curve. Moreover, it is compliant with Safety Extra Low Voltage standard, coupled with over load, over temperature protection. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
| Output | LED Channel | 1 | |
|---|---|---|---|
| Output | DC Voltage | 12V DC | 24V DC |
| Output | Max. Current | Max. 2.5A | Max. 1.25A |
| Output | Voltage Tolerance | ±1% | |
| Output | Rated Power | max. 30W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |
| Input | Efficiency (Typ.) | 86% @ 230VAC full load | |
| Input | AC Current (Typ.) | 0.16A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |
| Input | Leakage Current | < 0.5mA /230VAC | |
| Control | Dimming Interface | DALI (DALI consumption < 2mA)/Push | |
| Control | Dimming Range | 0.1%-100% | |
| Control | Dimming Method | Pulse Width Modulation | |
| Control | Dimming Curve | Logarithmic | |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed | |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ RH 70% | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190300H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature | |
| Others | Dimension | 170×53.4x28mm (L*W*H) |
