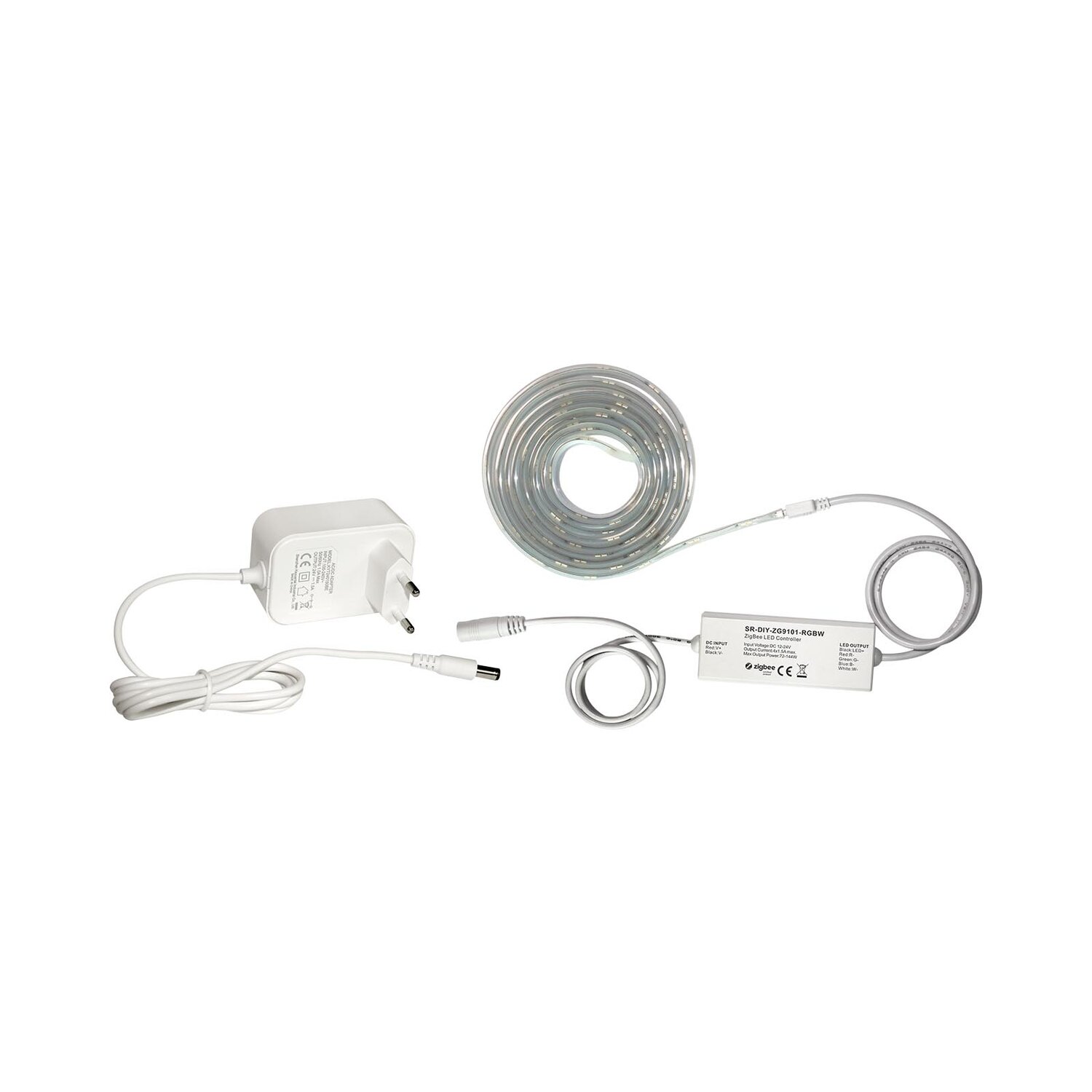

The DIY ZigBee RGBW Light Strip Kit is a complete solution based on the Zigbee 3.0 protocol, including a power adapter, RGBW LED controller, and RGBW strip, with plug-and-play setup and country-specific adapters available. It enables flexible installation without wiring, allowing users to shape lighting freely, while the W channel can be controlled separately via compatible Zigbee remotes or through a gateway’s color temperature interface. This Zigbee end device supports Touchlink commissioning, find and bind mode, self-forming networks without a coordinator, and can bind with up to 20 Zigbee green power remotes. It is compatible with universal Zigbee gateways and enables control of ON/OFF, brightness, and RGB color.
| Input Voltage | 100-240VAC, 50/60Hz | Input Voltage | 12/24VDC |
|---|---|---|---|
| Output Voltage | 24VDC | Output Current | 4CH, 1.5A/CH |
| Output Current | 1.5A | Output Power | 72W@12V, 144W@24V |
| Output Power | 36W | Output Type | Constant voltage |
| Output Type | Constant voltage | Dimension (LxWxH) | 84x20x14mm |
