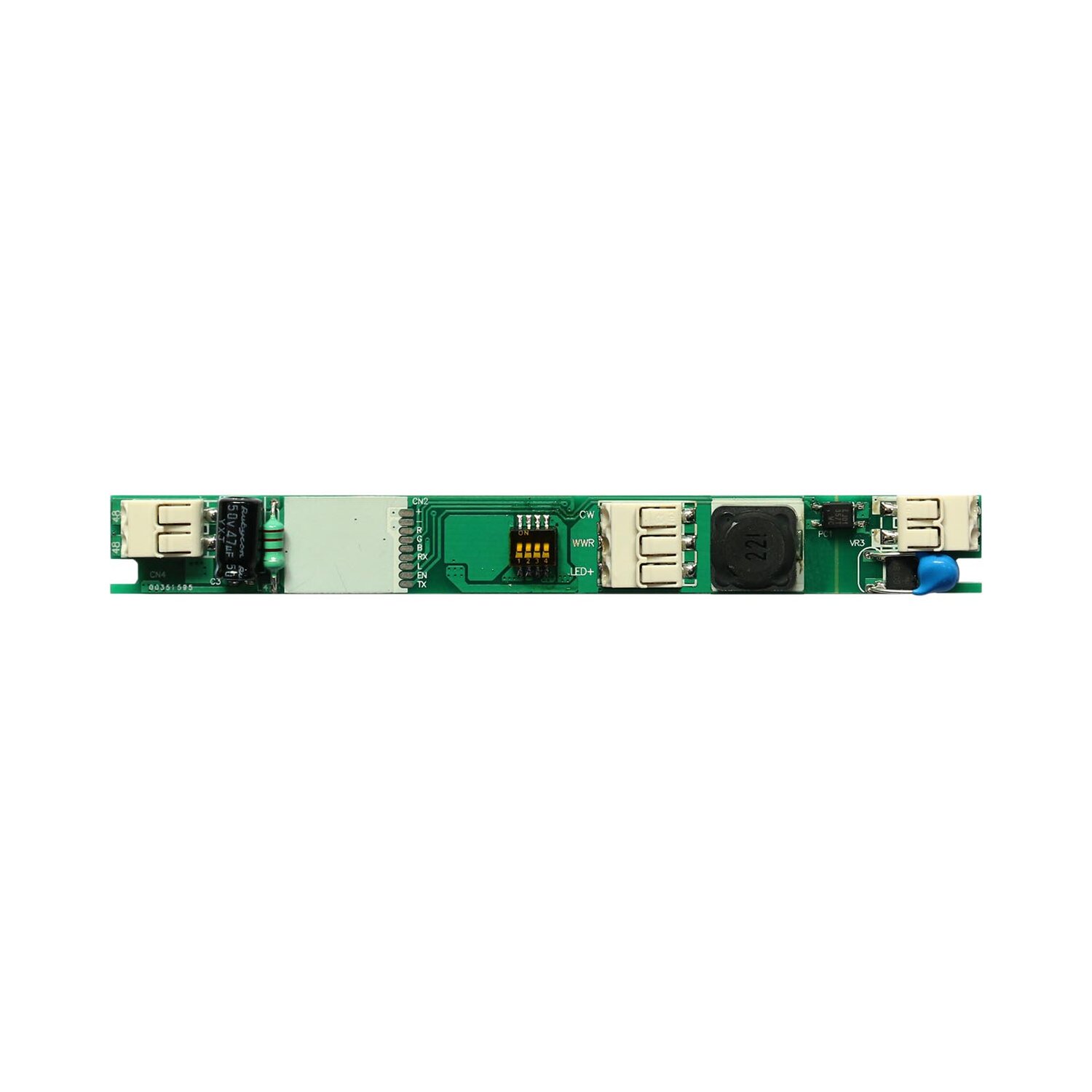

Product Description. With super-slim design, this DALI DT8 tunable white LED controller for magnet track light is specially devised for magnet track light and linear lighting.
Magnet absorption installation application ensures no high frequency interference sound. This controller has DC48V input, with max. output power 30W total.
Equipped with 2 channels 100-700mA constant current output, dips are used to select multi operation current. This device has deep and smooth dimming to 0.1%, without flicker.
It is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011. With built-in DALI-2 interface, this DALI DT8 device controls Warm White and Cool White output via a single DALI address.
Besides, it enables Dimming and Color Temperature Adjustment, and supports DT8 device commands, compatible with DALI masters that support DT8 commands. This controller can be configurated via DALI master USB interface.
Its waterproof grade is IP20, with 5-year warranty.
| Output | LED Channel | 2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output | Selectable Current | 100mA | 150mA | 150mA | 200mA | 200mA | 250mA | 250mA | 300mA | 300mA | 350mA | 350mA | 400mA |
| Output | DC Voltage Range | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V |
| Output | Selectable Current | 450mA | 450mA | 500mA | 500mA | 550mA | 550mA | 600mA | 600mA | 650mA | 650mA | 700mA | 700mA |
| Output | DC Voltage Range | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V | 6-42V |
| Output | Rated Power | Max. 30W | |||||||||||
| Input | Dimming Interface | DALI-2 (DT8, DALI consumption<2mA) | |||||||||||
| Input | Voltage | 48VDC±5% (Polarity Free) | |||||||||||
| Input | Current | 0.65A @ full load | |||||||||||
| Input | Efficiency | 95% | |||||||||||
| Input | Standby Power | <0.5W | |||||||||||
| Protection | Over Load | The load voltage is out of range, the current drops until the power is turned on again | |||||||||||
| Protection | Non-load | Prevents damage to the load when it is powered on | |||||||||||
| Protection | Short Circuit | Output close, auto recovery after fault removed | |||||||||||
| Protection | Anti-reverse | Prevent driver and load damage | |||||||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||||||
| Others | Dimension | 125*14.2*10mm (L*W*H) |
