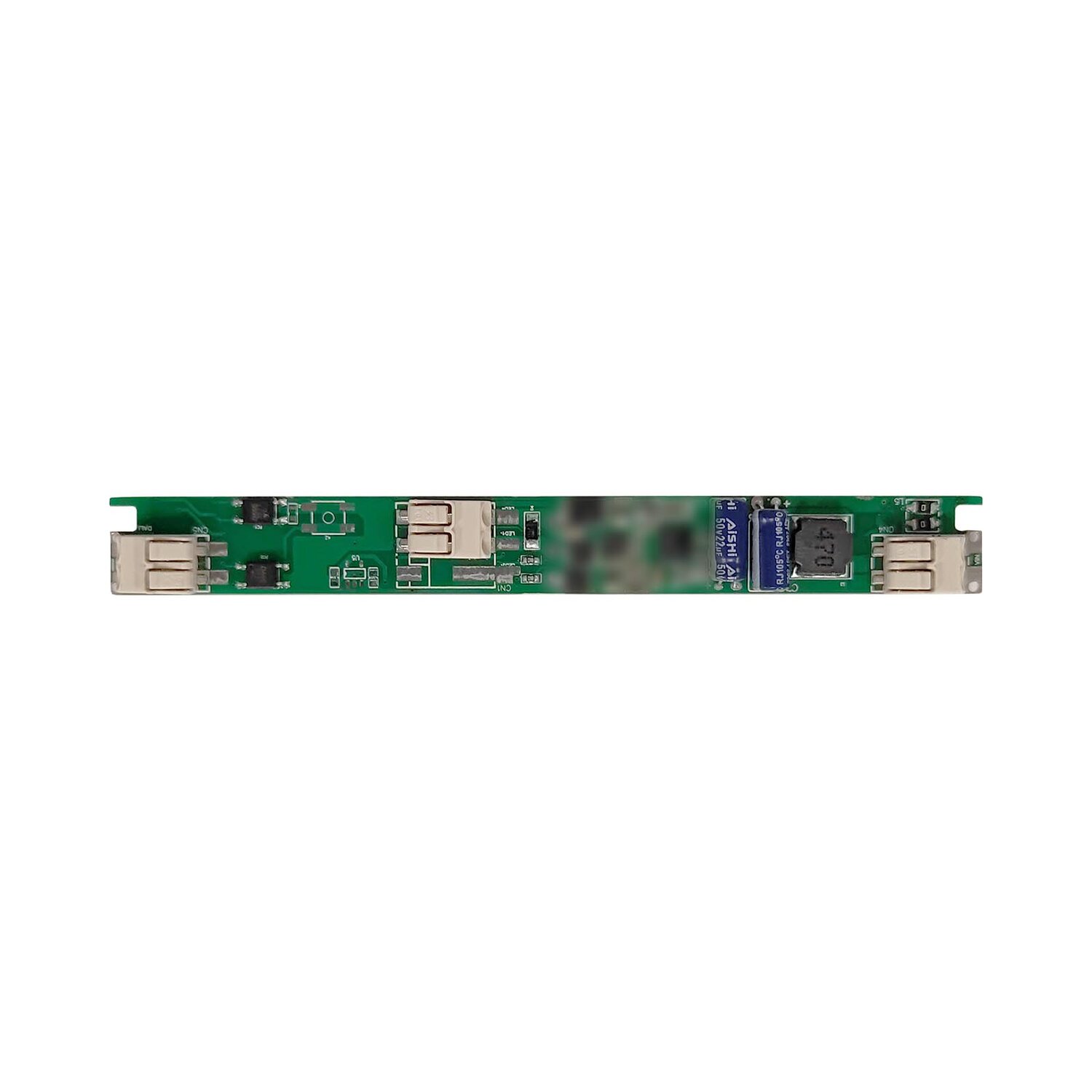

DALI LED Controller with Terminal for Magnet Track Light

SRP-2305-MT-48VCC100-700T
Product description
  • Super slim design DALI DT6 LED controller
  • Special design for magnet track light and linear lighting
  • Magnet absorption installation application, no high frequency interference sound
  • DC48V input, max. output power 28W total
  • 1 channel 100-700mA constant current output, dips to select multi operation current
  • Deep and smooth dimming to 0.1%, flicker free
  • In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
  • Built-in DALI-2 interface, DALI DT6 device
  • Match all DALI systems in the market
  • Waterproof grade:IP20
  • 5 years warranty

This super-slim DALI DT6 LED controller with terminals is specially designed for magnetic track lighting and linear lighting systems, combining a compact form factor with reliable lighting control. Featuring a 48V DC input and a single-channel constant current output adjustable from 100mA to 700mA via DIP switches, it delivers up to 28W total output power. The built-in DALI-2 interface enables seamless integration with DALI lighting control systems, while deep, smooth, flicker-free dimming down to 0.1% ensures precise light adjustment. Its magnetic absorption mounting design allows convenient installation, with quiet operation free from high-frequency interference noise. Compliant with IEC 62386-101, IEC 62386-102, and IEC 62386-207 Ed. 2, this controller is compatible with DALI systems on the market, making it a versatile solution for modern magnetic track and linear lighting applications.

Output LED Channel 1
Output Selectable Current 100mA 150mA 200mA 250mA 300mA 350mA 400mA
Output DC Voltage Range 3-40V 3-40V 3-40V 3-40V 3-40V 3-40V 3-40V
Output Selectable Current 450mA 500mA 550mA 600mA 650mA 700mA
Output DC Voltage Range 3-40V 3-40V 3-40V 3-40V 3-40V 3-40V
Output Rated Power Max. 28W
Input Dimming Interface DALI-2 (DALI consumption < 2mA)
Input Voltage 48VDC±5% (Polarity Free)
Input Current 0.65A @ full load
Input Efficiency 95%
Input Standby Power <0.5W
Protection Over Load Yes. Remove the fault conditions and re-power the device.
Protection Non-load Yes. Remove the fault conditions and re-power the device.
Protection Short Circuit Yes. Remove the fault conditions and re-power the device.
Protection Anti-reverse Prevent driver and load damage
Environment Working Temp. -20°C~+45℃
Environment Working Humidity 10% ~ 95% RH non-condensing
Environment Storage Temp. & Humidity -40°C~+80°C, 10%~95%RH
Others Dimension 125*14*10mm(L*W*H)
