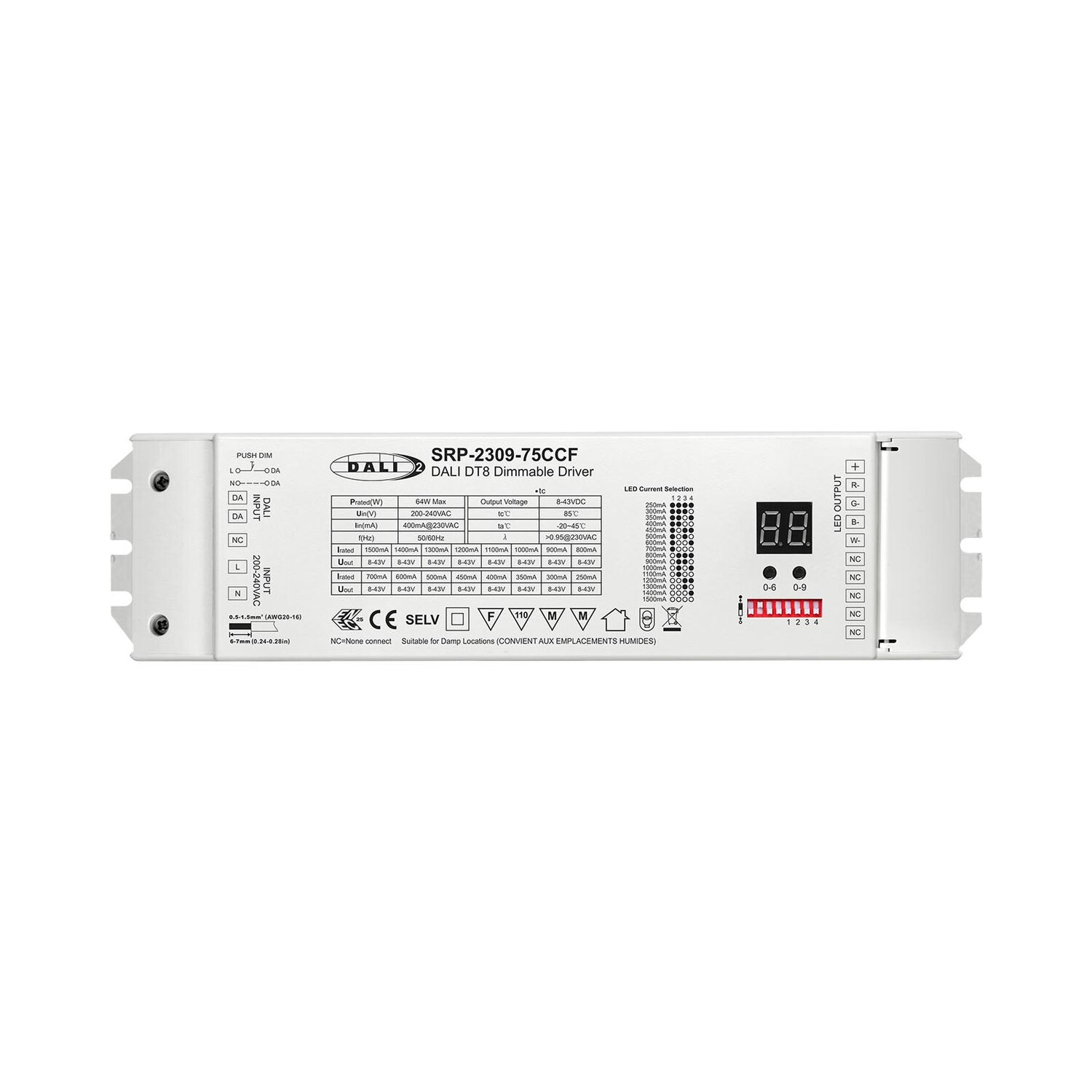

75W DALI DT8 LED Driver(Constant Current)

SRP-2309-75CCF
Product description
  • Dimmable LED driver
  • In compliance with IEC62386-101: 2014, IEC62386-102: 2014, IEC62386-207Ed2, 1EC62386-209: 2011
  • Built-in DALI-2 interface, DALI DT8 device
  • 4 channels constant current output, total output power up to 75W
  • 300mA-1500mA output current optional
  • Output current level selectable by DIP switches
  • Class ll power supply, full isolated plastic case
  • Power factor 0.9, efficiency 87%
  • Color control as defined in the DALI specification device type 8
  • Any of the three color types RGBW, XY Coordinate, Tc can be preset by factory setting
  • Supports DT8 device commands, compatible with DALI masters that support DT8 commands
  • Configuration via DALI master USB interface
  • Control of four PWM outputs via a single DALI address
  • Compliant with Safety Extra Low Voltage standard
  • Short circuit, over load, over temperature protection
  • IP20 rating, suitable for indoor LED lighting applications
  • 5 years warranty
SRP 2309 75CCF 01 1
SRP 2309 75CCF 01 1


The 75W DALI DT8 LED Driver is a dimmable LED driver with a built-in DALI-2 interface supporting DALI DT8 device commands, featuring four channels of constant current output with selectable current levels from 300mA to 1500mA by DIP switches and a total output power of up to 75W, compliant with IEC62386-101:2014, IEC62386-102:2014, IEC62386-207 Ed2, and IEC62386-209:2011 standards, offering power factor of 0.9 and efficiency of 87%, factory presettable to any of the three DT8 color types (RGBW, XY Coordinate, Tc), controllable via a single DALI address through four PWM outputs, compatible with universal DALI masters that support DT8 commands and configurable via DALI master USB interface, and includes short circuit, overload, and over temperature protection.

Output LED Channel 4
Output Selectable Current 300mA 350mA 400mA 450mA 500mA 600mA 700mA
Output DC Voltage Range 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V
Output Selectable Current 800mA
Output DC Voltage Range 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V
Output Current Tolerance ±25mA/ 5%
Output Rated Power ≤ Max. 64W/CH, CH1+CH2+CH3+CH4 75W
Input Voltage Range 200-240V AC
Input Frequency Range 50/60Hz
Input Power Factor (Typ.) > 0.9
Input Total Harmonic Distortion ≤ THD 15% (@ full load / 230VAC)
Input Efficiency (Typ.) 87% @ 230VAC full load
Input AC Current (Typ.) 400mA @ 230VAC
Input Leakage Current < 5mA /230VAC
Input Standby Power Consumption < 0.5W
Control Dimming Interface DALI DT8 (DALI consumption<2mA)/Push
Control Dimming Range 0.1%-100%
Control Dimming Method Pulse Width Modulation
Control Dimming Curve Logarithmic
Protection Short Circuit Yes, recovers automatically after fault condition is removed
Protection Over Voltage Yes, recovers automatically after fault condition is removed
Protection Over Temperature Yes, recovers automatically after fault condition is removed
Environment Working Temp -20℃ ~ +45℃
Environment Max. Case Temp 85℃(Ta=”45℃”)
Environment Working Humidity 10% ~ 95% RH non-condensing
Environment Storage Temp. & Humidity -40℃ ~ +80℃，10%~95% RH
Safety & EMC Safety Standards ENEC EN61347-1, EN61347-2-13 approved
Safety & EMC Withstand Voltage I/P-O/P: 3.75KVAC
Safety & EMC Isolation Resistance I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
Safety & EMC EMC Emission EN55015, EN61000-3-2, EN61000-3-3
Safety & EMC EMC Immunity EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
Others MTBF 188300H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
Others Dimension 244x64x32mm (L*W*H)
