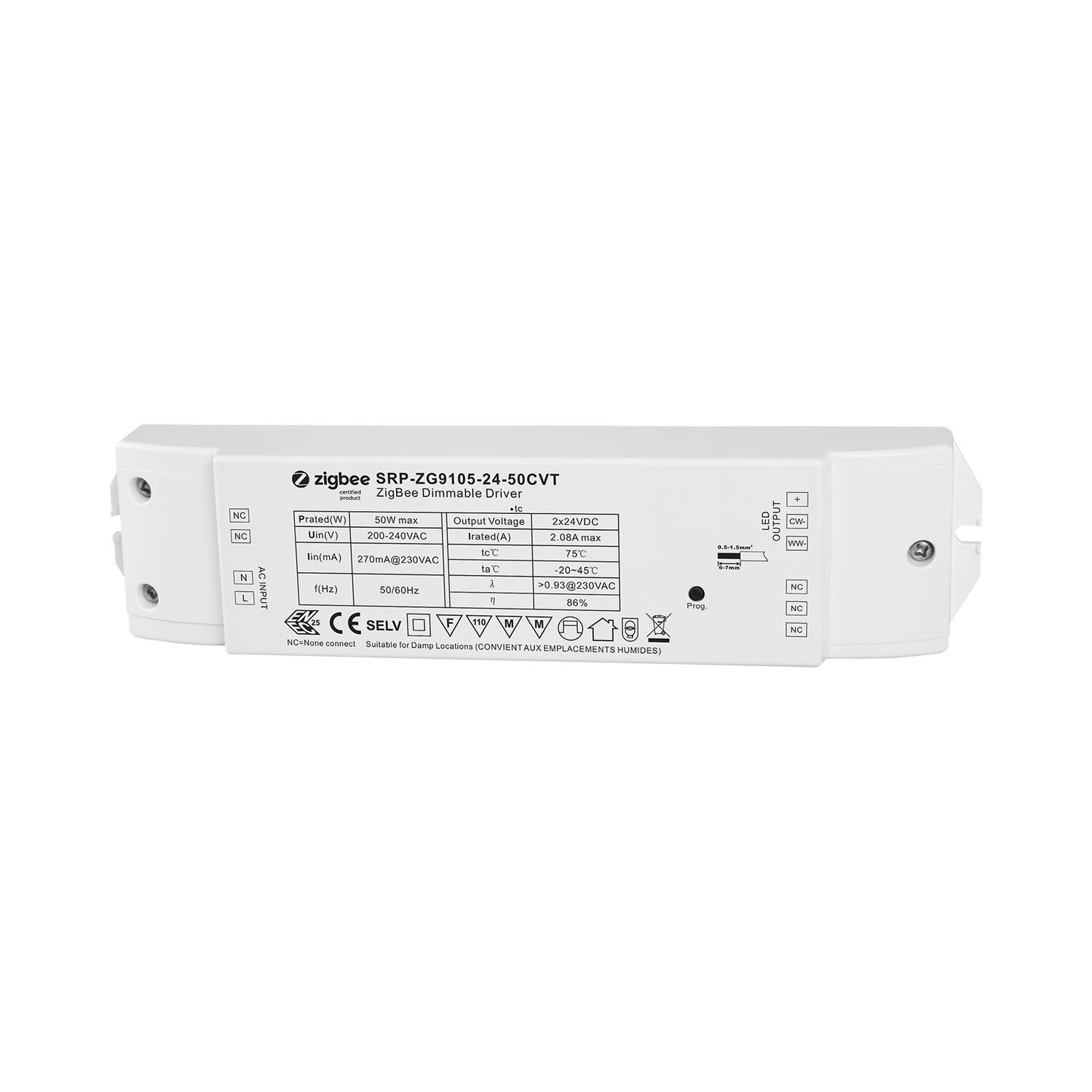

The 50W ZigBee CCT LED Driver is a dimmable driver for tunable white LED lights, based on the Zigbee 3.0 protocol. It has a maximum output power of 50W, with two channels offering 12/24V DC constant voltage output. This driver features a high power factor and efficiency, along with deep and smooth dimming down to 0.1%. It allows control of ON/OFF, light intensity, and CCT for connected CCT LED lights. As a Zigbee end device, it supports Touchlink commissioning for easy pairing with compatible Zigbee remotes, and also supports find and bind mode to bind Zigbee remotes. It can bind up to 20 Zigbee green power remotes and is compatible with universal Zigbee gateway products and CCT Zigbee remotes, making it ideal for use with tunable white LED lighting systems.
| Output | DC Voltage | 12VDC | 24V DC |
|---|---|---|---|
| Output | Max. Current | Max. 4.16A/ch, ch1+ch2=4.16A | Max. 2.08A/ch, ch1+ch2=2.08A |
| Output | Rated Power | max. 50W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency | 50/60Hz | |
| Input | Power Factor (Typ.) | >0.9 | |
| Input | Efficiency (Typ.) | 85% @ 230VAC | 88% @ 230VAC |
| Input | Input Current | 0.27A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |
| Protection | Over Current | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190300H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |
| Others | Dimension | 210*50*32mm (L*W*H) |
