4in175W DALI DT8 LED Driver(Constant Current)

SRP-2309PRO-75CCF
Product description
  • Dimmable LED driver
  • In compliance with IEC 62386-101: 2014, IEC 62386-102: 2014, IEC 62386-207 Ed2, IEC 62386-209: 2011
  • Built-in DALI-2 interface, DALI DT8 device
  • 4 channels constant current output, total output power up to 75W
  • 300mA-1500mA output current optional
  • Output current level selectable by DIP switches
  • Class power supply, full isolated plastic case
  • Power factor 0.9, efficiency 87%
  • 4 universal device types in 1: primary N, Tc, XY coordinate, RGBW, can be set by the buttons
  • DALI DT8 device to control RGBW outputs or tunable white outputs via a single DALI address
  • Only 1 address required to control 4 outputs separately under primary N mode
  • Control of four PWM outputs via DALI device type 8
  • Color control as defined in the DALI specification device type 8
  • Color type primary N, Tc, XY coordinate, RGBW can be set by manual set buttons
  • Supports DT8 device commands, compatible with DALI masters that support DT8 commands
  • Configuration via DALI master USB interface
  • Control of four PWM outputs via a single DALI address
  • Compliant with Safety Extra Low Voltage standard
  • Short circuit, over load, over temperature protection
  • IP20 rating, suitable for indoor LED lighting applications
  • 5 years warranty

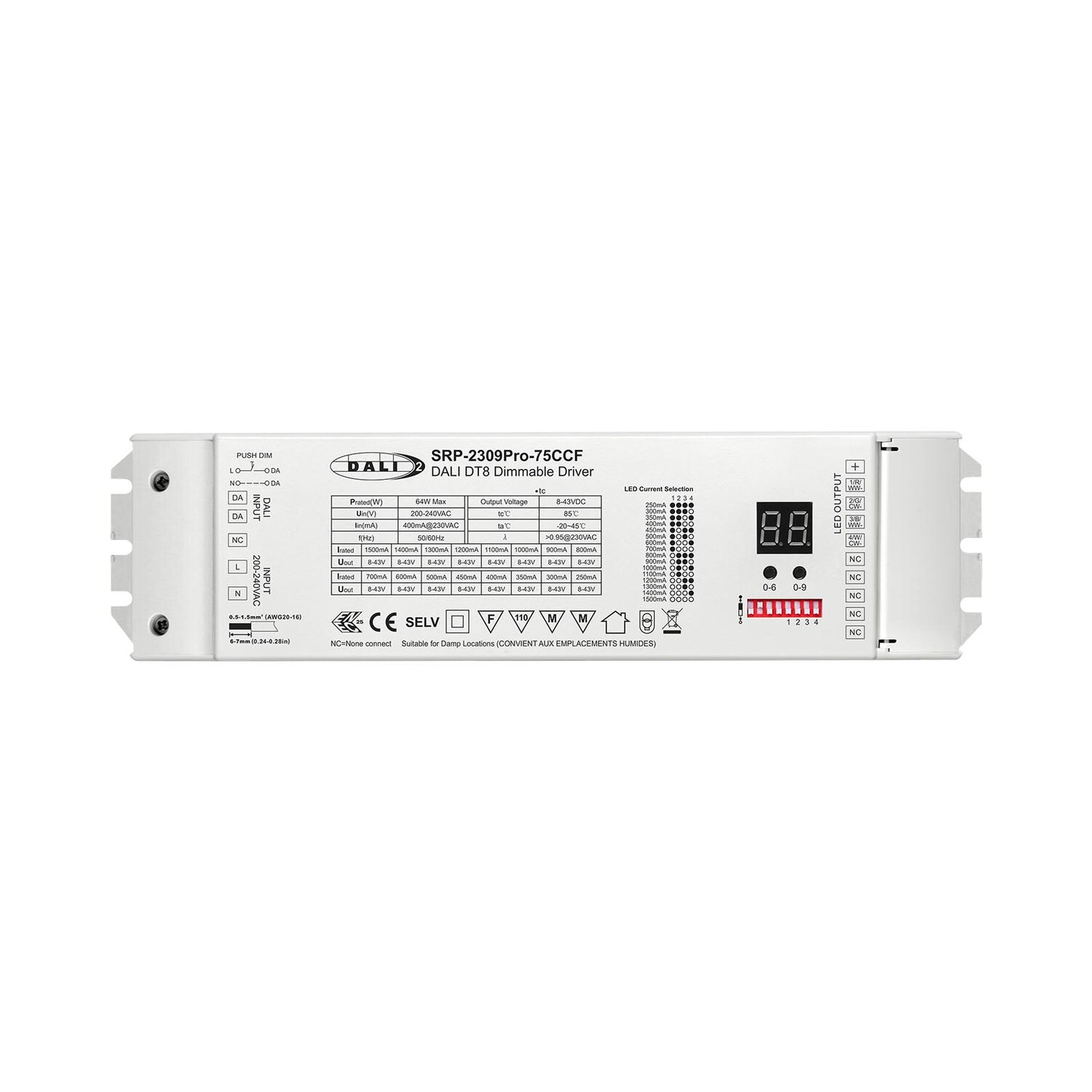

SRP 2309Pro 75CCF 01 1
SRP 2309Pro 75CCF 01 1


The 4 in 1 75W DALI DT8 LED Driver is a dimmable constant current LED driver with four channels, offering output current options from 300mA to 1500mA selectable by DIP switches, compliant with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and IEC 62386-209:2011, featuring a built-in DALI-2 interface as a DALI DT8 device and a fully isolated Class II power supply with a power factor of 0.9 and efficiency of 87%, supporting four universal device types—primary N, Tc, XY coordinate, and RGBW—that can be set by buttons, enabling control of RGBW or tunable white outputs via a single DALI address with separate control of four PWM outputs in primary N mode, compatible with DALI masters that support DT8 commands, configurable via DALI master USB interface, and providing short circuit, overload, and over-temperature protection.

Output LED Channel 4
Output Selectable Current 300mA 350mA 400mA 450mA 500mA 600mA 700mA 800mA
Output DC Voltage Range 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V
Output Selectable Current 900mA 1000mA 1100mA 1200mA 1300mA 1400mA 1500mA
Output DC Voltage Range 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V 8-43V
Output Current Tolerance ±3%
Output Rated Power ≤ Max. 64W/CH, CH1+CH2+CH3+CH4 75W
Input Voltage Range 200-240V AC
Input Frequency Range 50/60Hz
Input Power Factor (Typ.) > 0.9
Input Total Harmonic Distortion ≤ THD 15% (@ full load / 230VAC)
Input Efficiency (Typ.) 87% @ 230VAC full load
Input AC Current (Typ.) 400mA @ 230VAC
Input Leakage Current < 0.5mA /230VAC
Input Standby Power Consumption < 1W
Control Dimming Interface DALI DT8 (DALI consumption<2mA)/Push
Control Dimming Range 0.1%-100%
Control Dimming Method Pulse Width Modulation
Control Dimming Curve Logarithmic
Protection Short Circuit Yes, recovers automatically after fault condition is removed
Protection Over Voltage Yes, recovers automatically after fault condition is removed
Protection Over Temperature Yes, recovers automatically after fault condition is removed
Environment Working Temp -20℃ ~ +45℃
Environment Max. Case Temp 85℃(Ta=”45℃”)
Environment Working Humidity 10% ~ 95% RH non-condensing
Environment Storage Temp. & Humidity -40℃ ~ +80℃，10%~95% RH
Safety & EMC Safety Standards ENEC EN61347-1, EN61347-2-13 approved
Safety & EMC Withstand Voltage I/P-O/P: 3.75KVAC
Safety & EMC Isolation Resistance I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
Safety & EMC EMC Emission EN55015, EN61000-3-2, EN61000-3-3
Safety & EMC EMC Immunity EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
Others MTBF 188300H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
Others Dimension 244x64x32mm (L*W*H)
