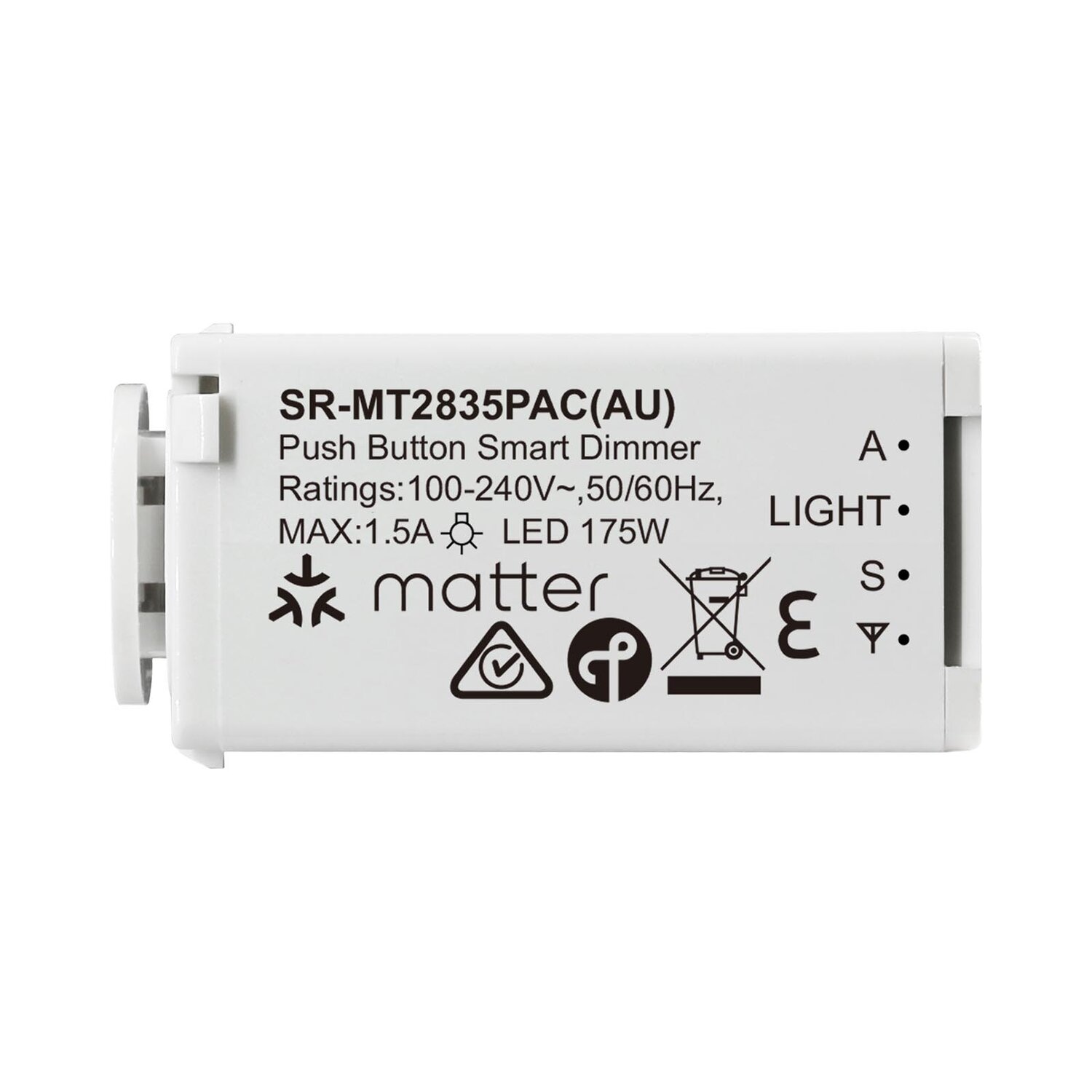

The Matter Push Button Smart Dimmer features advanced microprocessor control and an implemented algorithm for smart light source detection. It includes active power and energy metering functionality, along with a soft start function and innovative minimum dimming level and startup brightness setting functions. The dimmer supports a variety of light sources, such as conventional incandescent and HV halogen lights, ELV halogen lamps, dimmable LED bulbs (with electronic transformers), MLV halogen lamps (with ferromagnetic transformers), and dimmable CFL tube lamps. The Bypass extension unit supports dimmable light sources with a power factor greater than 0.5 and a minimum power of 3VA. It is compatible with trailing edge for resistive and capacitive loads, and leading edge for inductive loads.
| Tension d'entrée | 100-240VAC |
|---|---|
| Fréquence d'entrée | 50/60Hz |
| Tension de sortie | 100-240VAC |
| Courant de sortie | 1,5 A max. |
| Radiofréquence | 2.4GHz |
| Taille (LxLxH) | 45 × 21 × 21 mm |
| Température ambiante | -20 °C à +50 °C |
