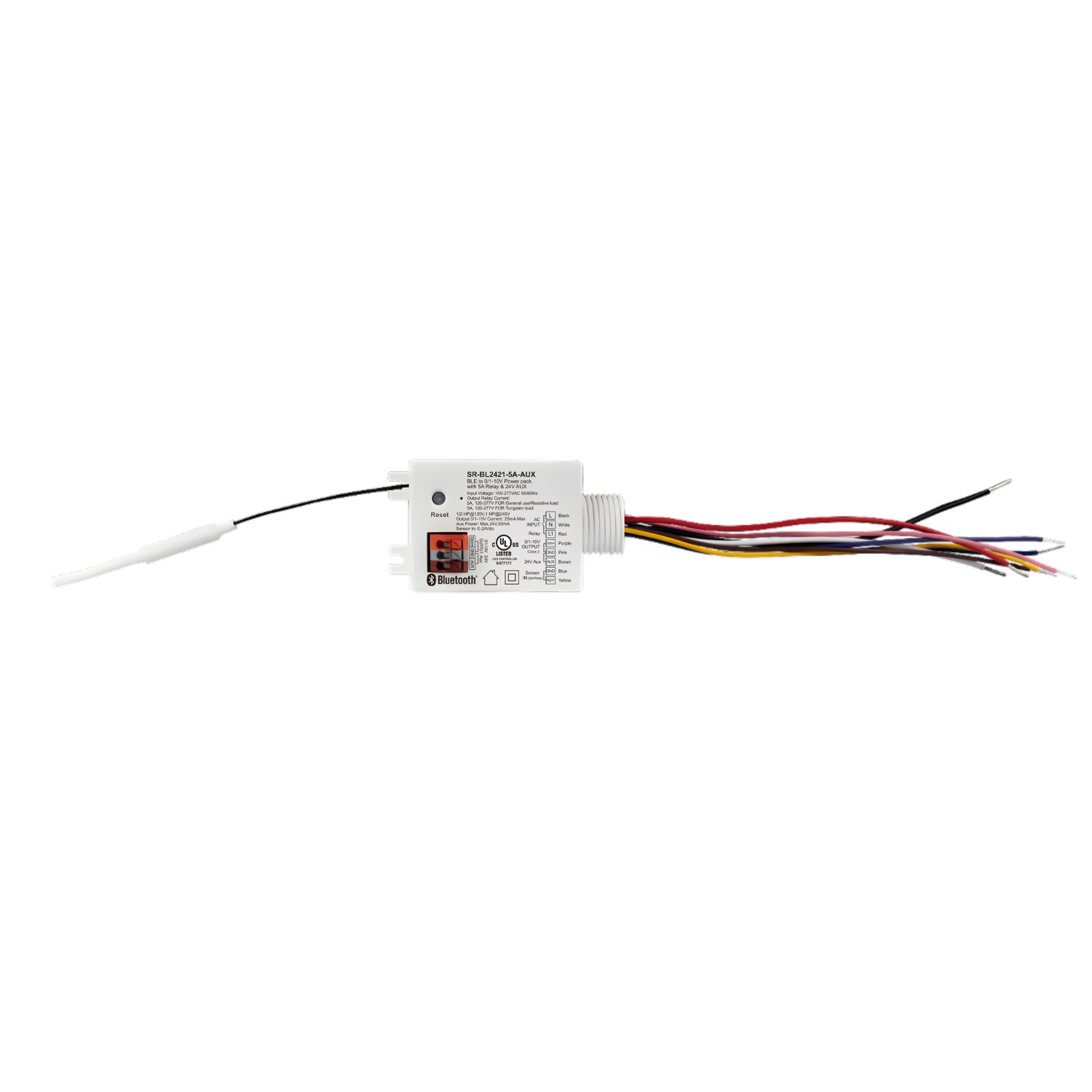

SR-BL2421-5A-AUX is a Bluetooth to 0–10V signal converter based on a Bluetooth mesh network. It features a built-in 25mA 0–10V output and a 5A relay, along with a sensor input that allows connection of third-party sensors using logic signals to control power packs or 0–10V loads. The mesh network extends control distance by transmitting signals between devices, and all devices on the 0–10V line can be broadcast controlled via SunSmart Commissioning tools. It supports Sunricher kinetic energy switches and EnOcean EWSSB and EWSDB switches. UL listed (PAZX) and UL 2043 plenum rated, it includes an IPEX antenna, IP20 rating, and a 5-year warranty.
|
Entrée
|
Puissance |
100-277VAC |
|---|---|---|
| Signal |
Bluetooth |
|
|
Sortie, 0/1-10V |
Actuel |
Max. 25mA |
| Sortie, relais | Tension de commutation |
100-277VAC |
| Actuel |
Max. 5 A |
|
| Enviroment | Température de fonctionnement |
-20℃-+55℃ |
|
Humidité relative |
8% à 80% |
|
| Autres | Taille |
78,2 × 43,4 × 31,7 mm |
| Caractéristiques des relais | ||
| Type de charge |
100-277VAC Signal Converter with 5A Relay |
|
| AC Usage général |
5 A à 120-277 V CA |
|
| Résistif |
5A@120VAC, 5A@277VAC |
|
| Capacitif |
3A à 120-277 V CA |
|
| Moteur |
0.5 HP@120VAC, 1 HP@250VAC |
|
