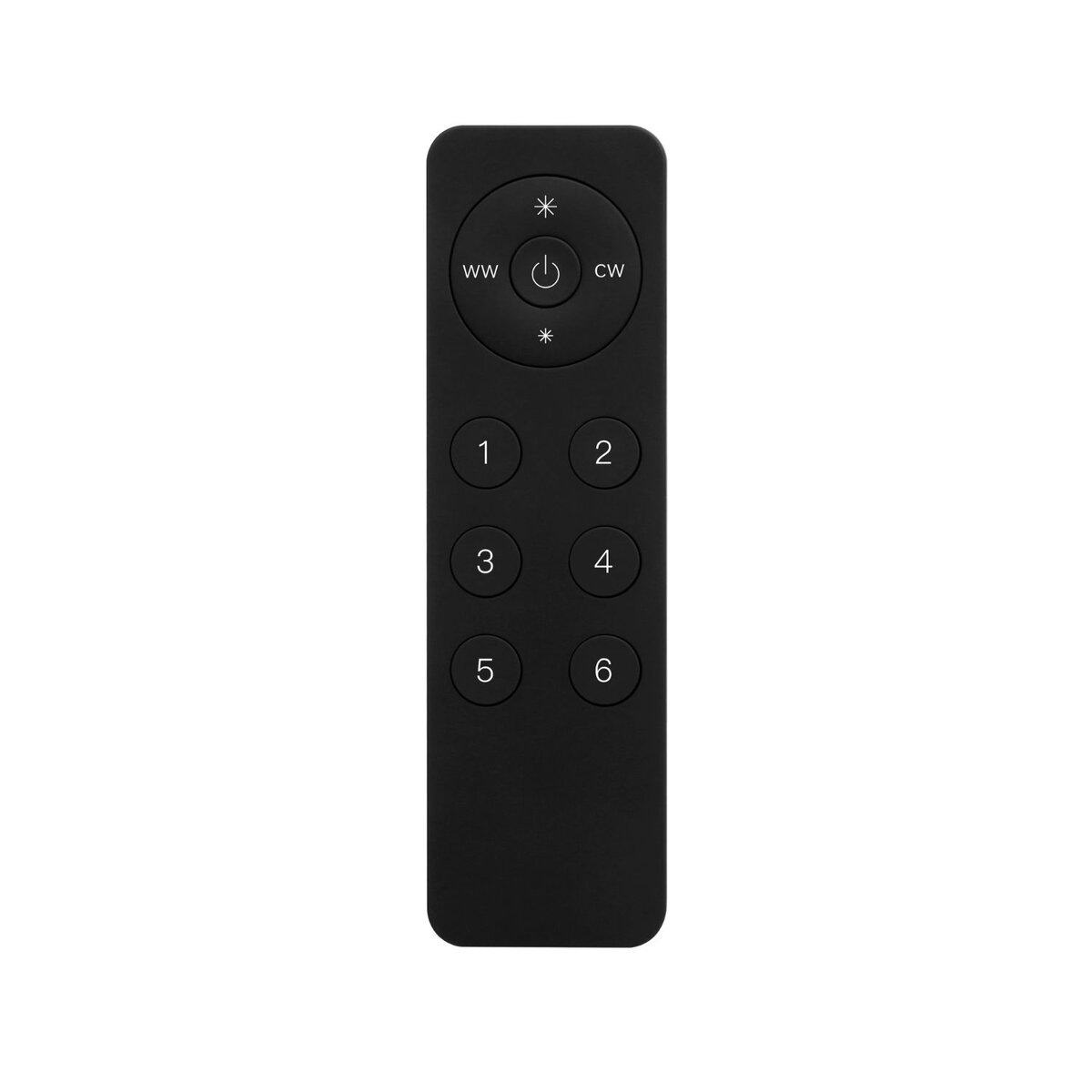

The Zigbee CCT remote is based on the Zigbee 3.0 standard and is designed to control 2-PIN Zigbee CCT lighting devices. Battery powered with low power consumption, it supports Touchlink commissioning and Find and Bind mode for pairing with Zigbee lighting devices. The remote supports up to 6 groups, with each group binding up to 30 lighting devices. Operating at 2.4 GHz for global use, it provides a transmission range of up to 30 m. The remote is compatible with universal Zigbee Gateway products, providing flexible control for Zigbee CCT lighting systems.
| Protokoll | ZigBee 3.0 |
| Betriebsspannung | 3VDC (CR2025) |
| Übertragungsfrequenz | 2.4GHz |
| Übertragungsbereich (Freifeld) | 30m |
| Schutzart | IP20 |
| Dimmbereich | 0.1%-100% |
| Dimension | 136,3×38,9×10,7 mm |
| Schutzgrad | IP20 |
