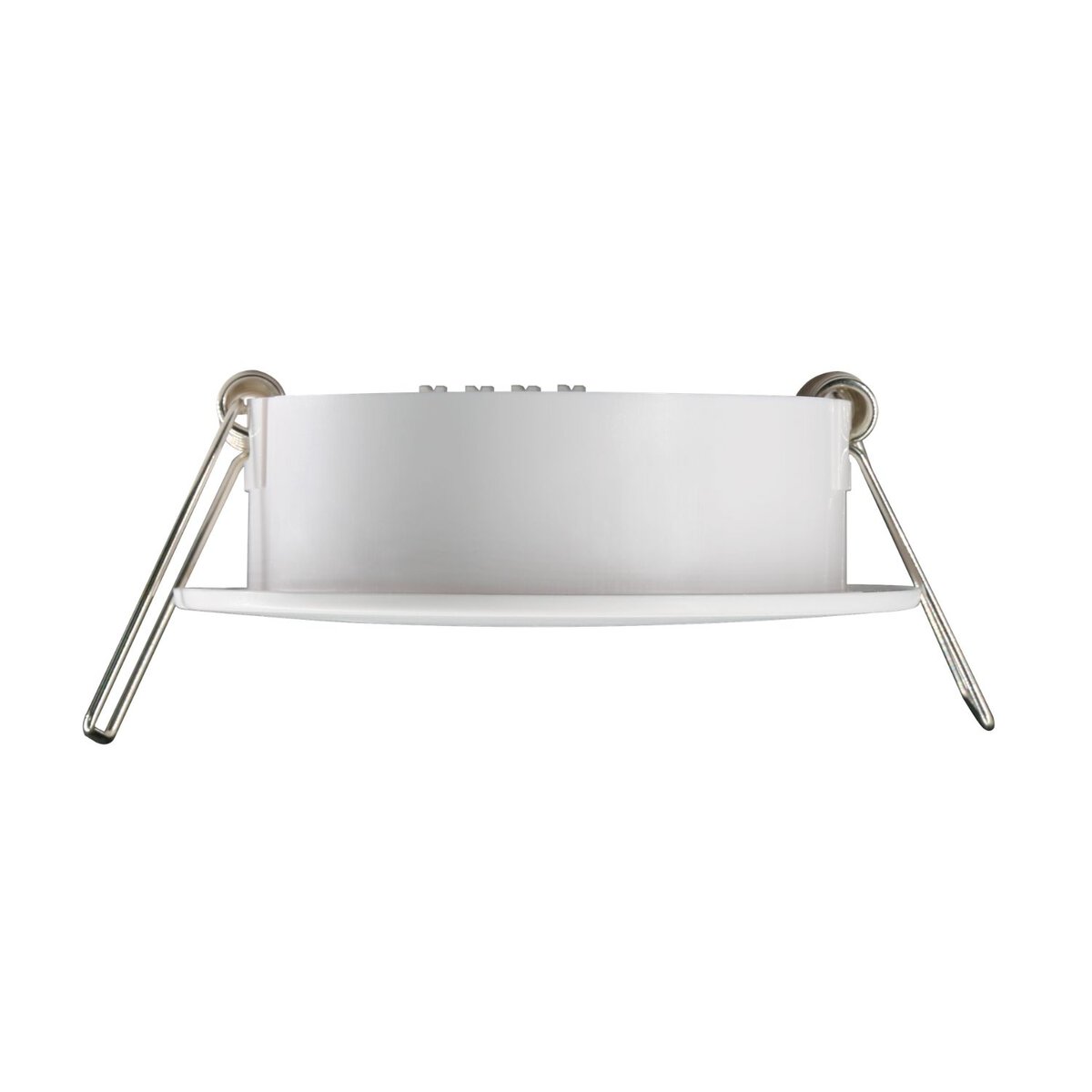

The 4 in 1 sensor is a device that combines presence sensing, daylight harvesting, temperature sensing and humidity sensing with Zigbee radio circuits. It is suitable for sensor based automation for a Zigbee system. Recessed ceiling mounting is suitable for standalone installation.
| Dimensions / Weight | See dimensions |
| Cutting Hole | 70-73mm |
| Material / Color | ABS / White |
| Wire Gauge | 26-16 AWG (0.2-1.3 mm2) |
| Strip Length | 0.28-0.35 in. / 7-9 mm |
| Power Supply | 100-240VAC via cables |
| Current Consumption | Max. 30mA @ 230VAC |
| Power Consumption | Max. 4.5W |
| Cable Dimensions | 14AWG, 15CM |
| Cable Code | L: brown, N: blue |
| Status Indicators | Green (Zigbee network) |
| Status Indicators | Red (motion detection) |
| Radio Frequency | 2.4 GHz |
| Wireless Protocol | Zigbee 3.0 |
| Wireless Range | 100 feet (30m) Line of Sight |
| Radio Certification | FCC/IC, CE |
| Occupancy Sensing Type | Microwave sensor |
| Microwave High Frequency | 24 GHz ISM band, detect heart beat, breathing of human being |
| Detection Sensitivity | 1-16 (default 9), 1 is 100% the max. sensitivity, 16 is the min. sensitivity |
| Presence Detection Range | around 6m radius @ 3m mounting height |
| Illuminance Measuring Range | 0~1000 lux |
| Temperature Range and Precision | -40°C~+125°C, ±0.1°C |
| Humidity Range and Precision | 0-100% RH (non-condensing), 2% |
| Recommended Mounting Height | Ceiling mounted, 10ft (3m) |
| Sensing Information | Can be shared within Zigbee mesh network |
