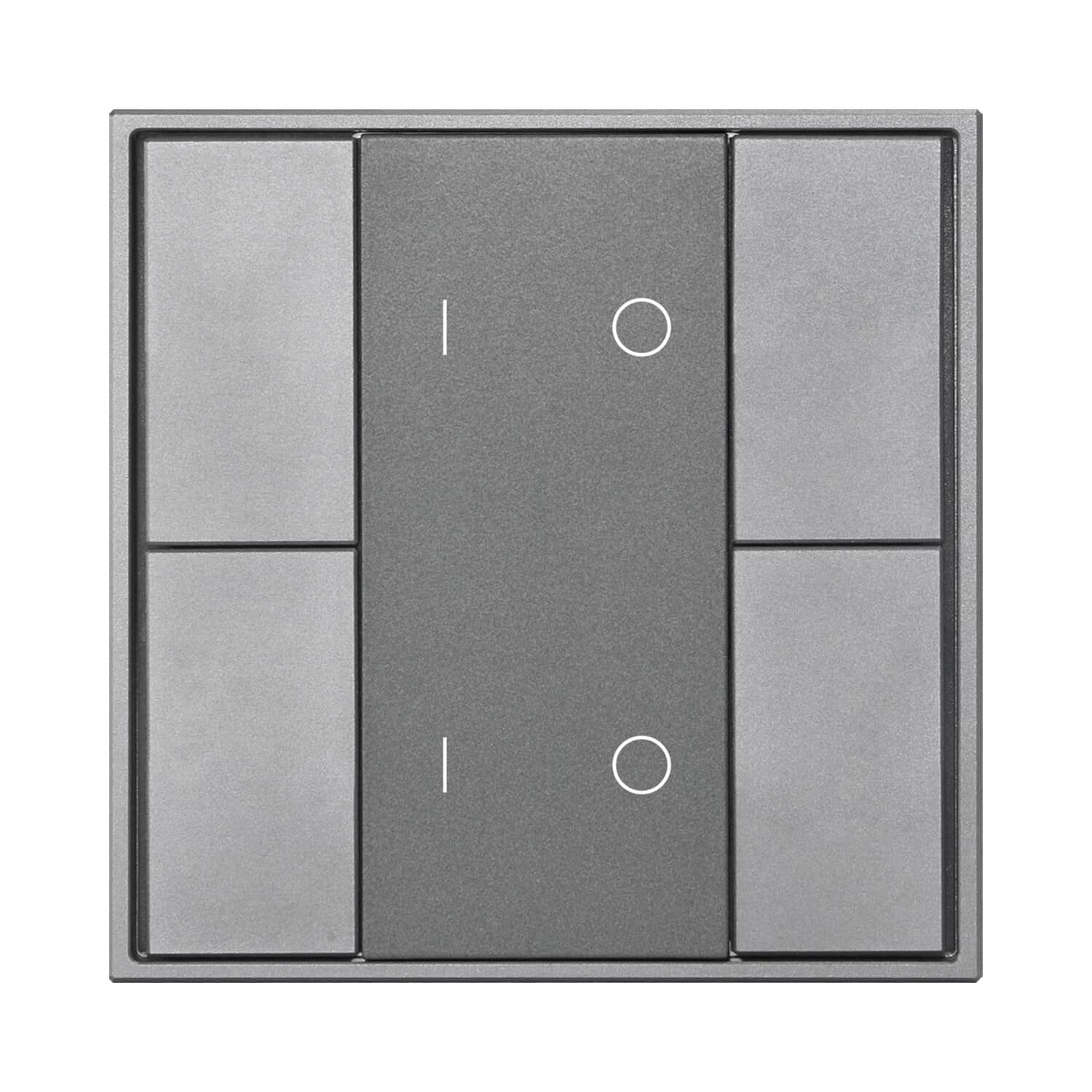

The ZigBee Wireless Dimmer Switch is a Zigbee 3.0-based device designed to control universal single color Zigbee lighting devices, supporting touchlink commissioning without a coordinator and find and bind mode for simplified pairing. It allows binding of up to 2 groups with a maximum of 30 devices, operates on the 2.4 GHz global frequency band, and offers a transmission range of up to 30 meters with long battery life mesh technology. It is compatible with universal Zigbee Gateway products.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3VDC (CR2032) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 80x80x10.5mm |
