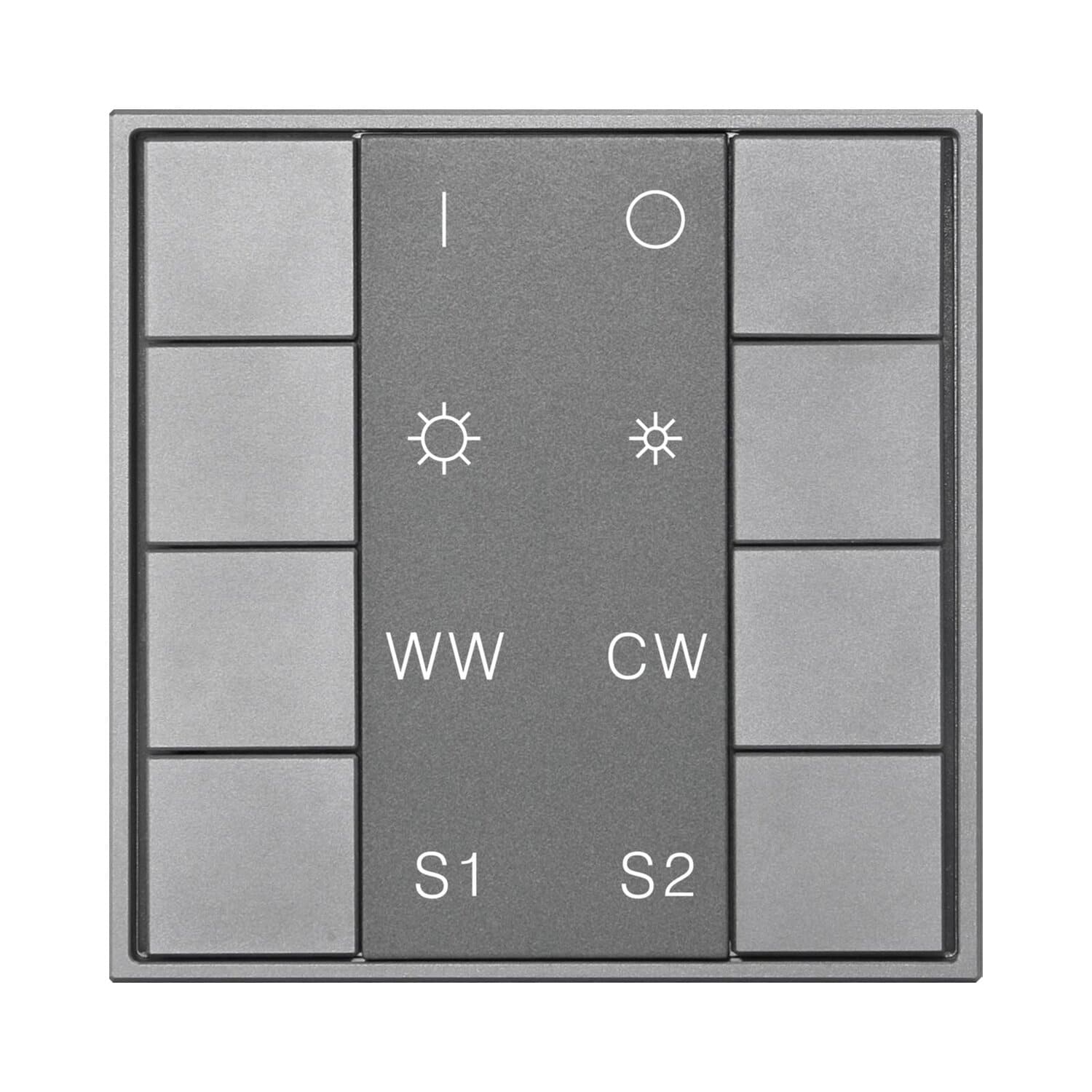

The ZigBee Wireless CCT Remote is a Zigbee 3.0-based device that enables control of universal CCT Zigbee lighting devices, supporting touchlink commissioning without a coordinator and find and bind mode for easy pairing. It allows binding of one group with up to 30 devices, offers the ability to save and recall two scenes per group, and operates on the 2.4 GHz global frequency band with a transmission range of up to 30 meters. With long battery life mesh technology, it is compatible with universal Zigbee Gateway products.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3VDC (CR2032) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 80x80x10.5mm |
