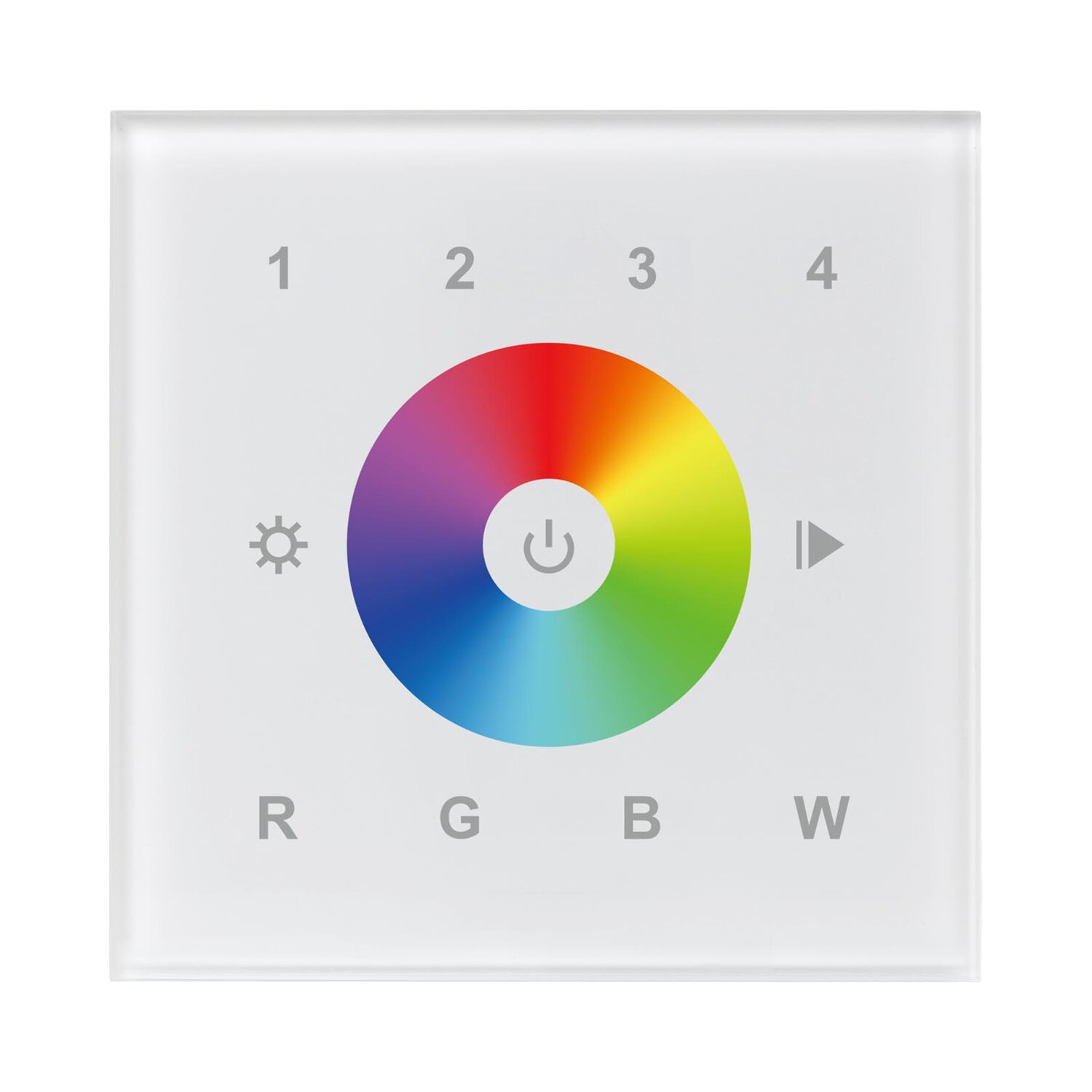

SR-ZG9001T4-RGBW-EU is a RGB+W ZigBee touch remote controller that enables switch, dimming and RGB color control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee touch panel supports 4 groups for binding lighting devices and enables to control RGB+W ZigBee lighting devices, and each touch panel can bind maximum 30 devices. It is designed with AC100-240V power input. Ultra sensitive glass panel with full touch control enables smooth switch, dimming and RGB color adjustment operation. It enables to play built-in color running effects with adjustable speed. The ZigBee RGBW remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard. Standard Europe size is available and compatible with existing wall boxes for easy installation.
| Protocol | ZigBee 3.0 |
|---|---|
| Input Voltage | 100-240VAC |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 86x86x29.1mm |
