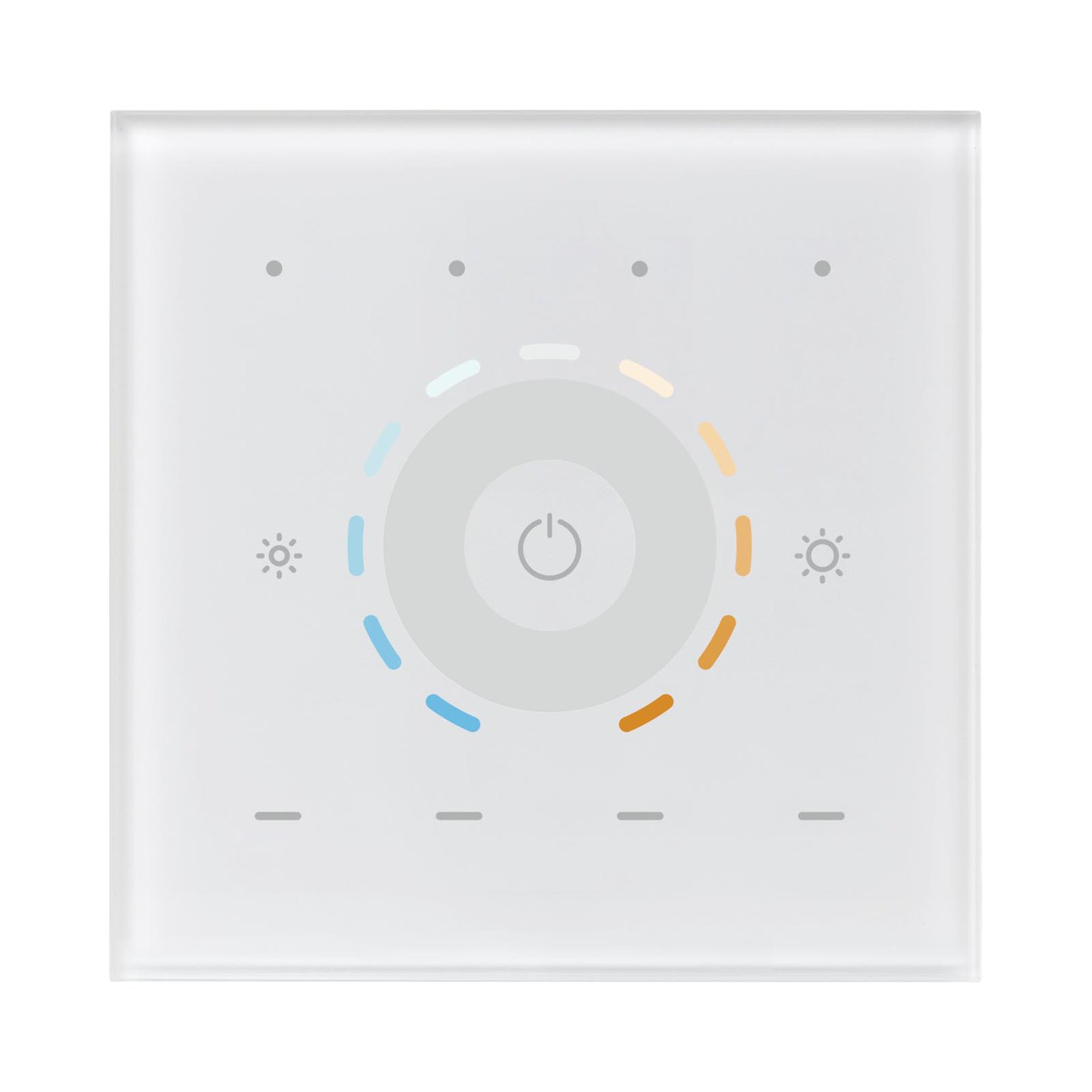

The ZigBee Wall Touch CCT Remote is a Zigbee 3.0 CCT controller featuring a full touch glass interface for smooth correlated color temperature and light intensity adjustment, allowing touchlink commissioning to pair with Zigbee lighting devices without a coordinator, supporting find and bind mode for pairing within the same network, managing up to four groups with a maximum of 30 bound devices, operating on the 2.4 GHz global frequency with a transmission range of up to 30 meters, and compatible with universal Zigbee gateways and CCT Zigbee lighting devices.
| Protocol | ZigBee 3.0 |
|---|---|
| Input Voltage | 100-240VAC |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 86x86x29.1mm |
