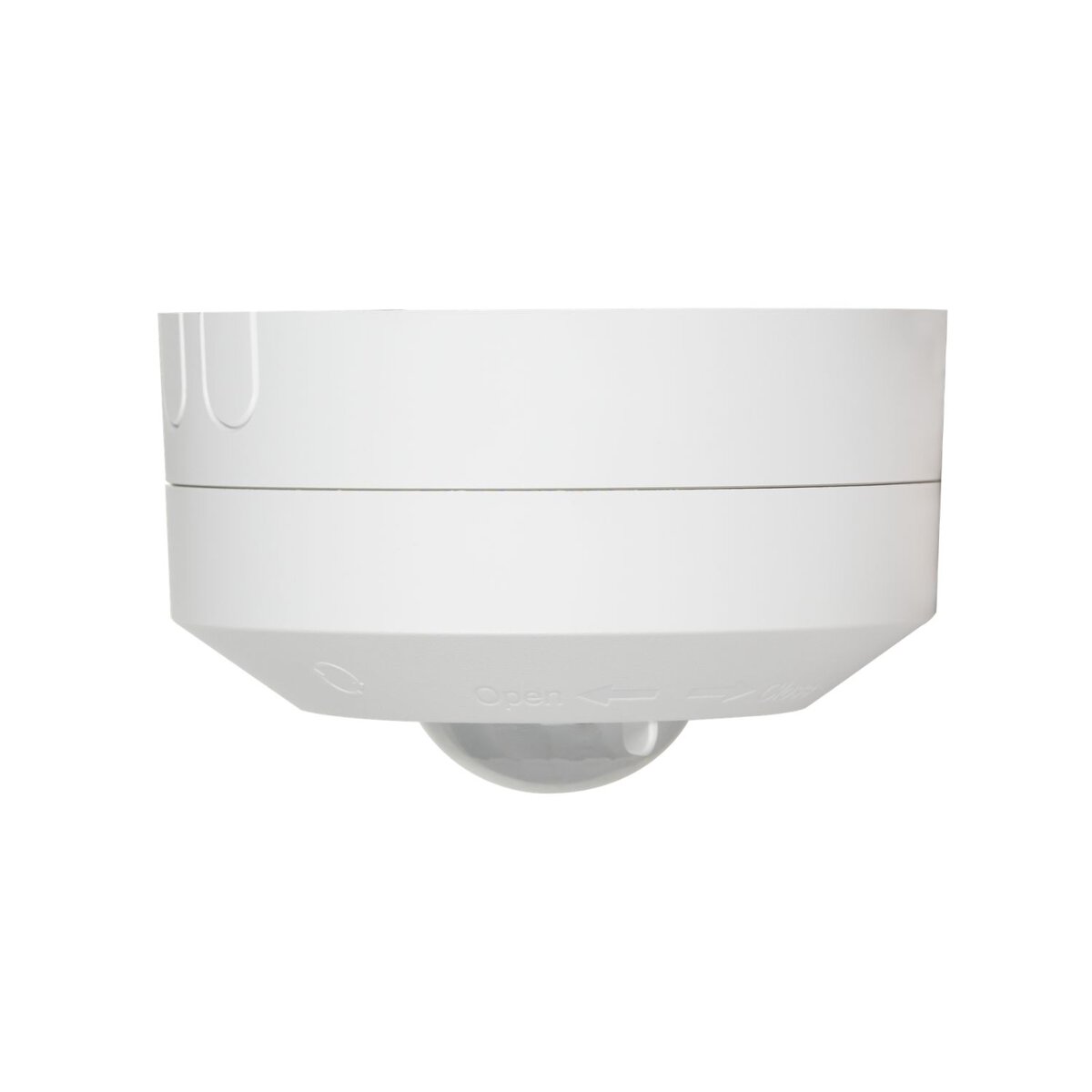

The Zigbee to DALI PIR Sensor integrates occupancy sensing, daylight harvesting, DALI dimming control, and Zigbee wireless communication into a compact device. When used with DALI LED drivers, it enables DALI-based luminaires to be upgraded with smart wireless control and sensor-driven automation without additional wiring, allowing lighting manufacturers to deliver wirelessly controllable and sensor-equipped fixtures with minimal configuration and installation effort. The sensor is well suited to low-bay applications requiring a medium-sized detection area and sensor-based lighting automation.
| Wireless Protocol | Zigbee 3.0 |
| Radio Frequency | 2.4 GHz |
| Wireless Range | 100 feet (30 m) line of sight |
| Operating Voltage | 100‒277 V AC, 50/60 Hz |
| Relay | Resistive: Max. 10 A @ 120-277 V AC Capacitive: Max. 8 A @ 120-277 V AC Inductive: Max. 7 A @ 120-277 V AC |
| DALI | Max. 80 mA DALI bus output |
| Standby Power | ＜0.5 W |
| Occupancy Sensing Type | PIR sensor |
| Detection Range | Max. φ10-12 m @ 3 m height (Low-bay) Max. φ26 m @ 12 m height (High-bay) |
| Installation Height | 2-6 m, max. 6 m (Low-bay) Max. 12 m (High-bay) |
