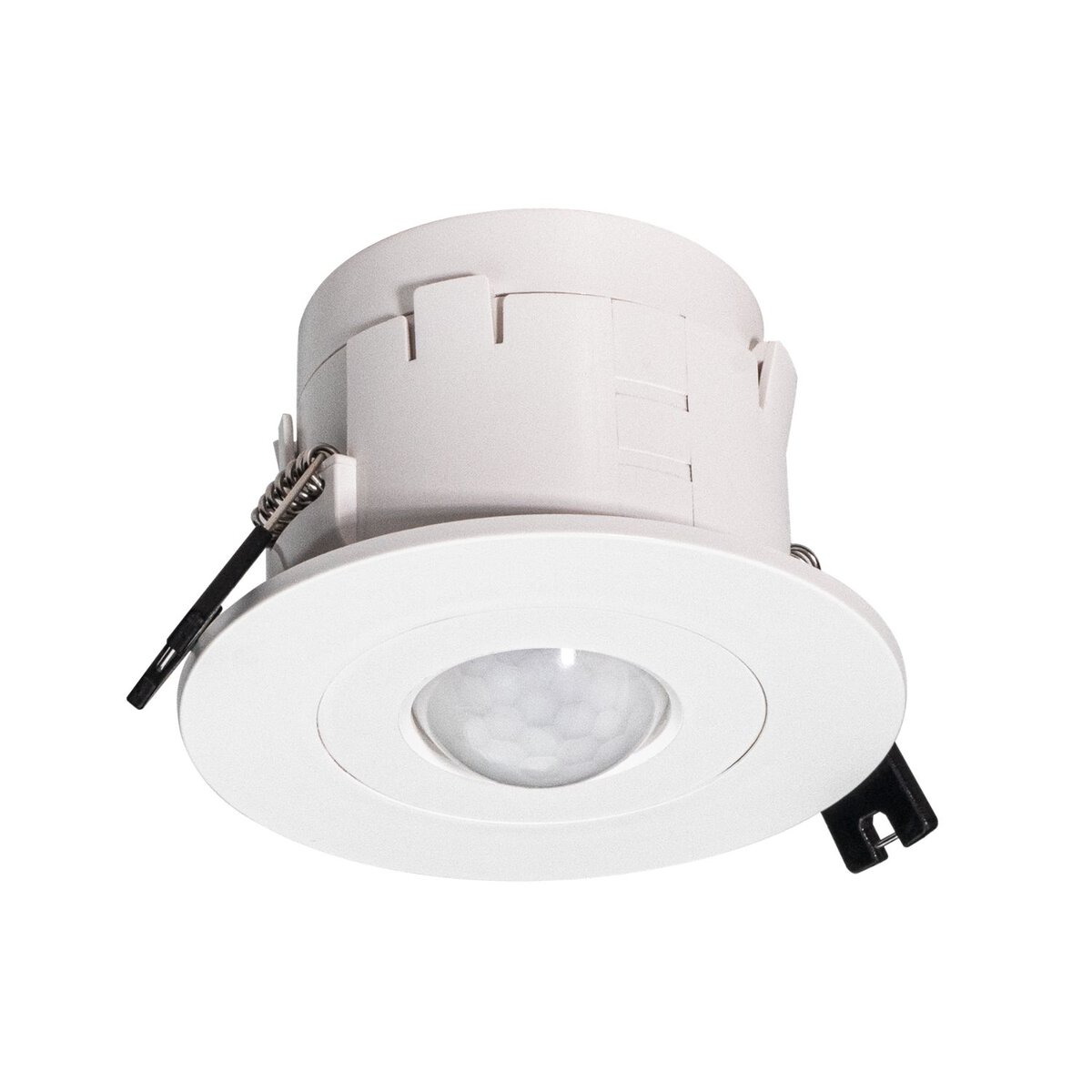

The Zigbee to DALI PIR Sensor integrates occupancy sensing, daylight harvesting, DALI dimming control, and Zigbee wireless communication into a compact device. When used with DALI LED drivers, it enables DALI-based luminaires to be upgraded with smart wireless control and sensor-driven automation without additional wiring, allowing lighting manufacturers to deliver wirelessly controllable and sensor-equipped fixtures with minimal configuration and installation effort. The sensor is well suited to low-bay applications requiring a medium-sized detection area and sensor-based lighting automation.
| Wireless Protocol | Zigbee 3.0 |
| Radio Frequency | 2.4 GHz |
| Wireless Range | 100 feet (30 m) line of sight |
| Operating Voltage | 220‒240 V AC, 50/60 Hz |
| Relay | Max. 10 A, 400 W LED |
| Average Input Current | ＜30mA |
| Power Consumption | ＜1 W |
| Max Tx Power | +8 dBm |
| Status Indicator | Red-Movement detection；Green-Network status |
| Occupancy Sensing Type | PIR sensor |
| Detection Range | φ10 m @ 3 m height @ default sensitivity |
| Installation Height | Max. 6 m |
