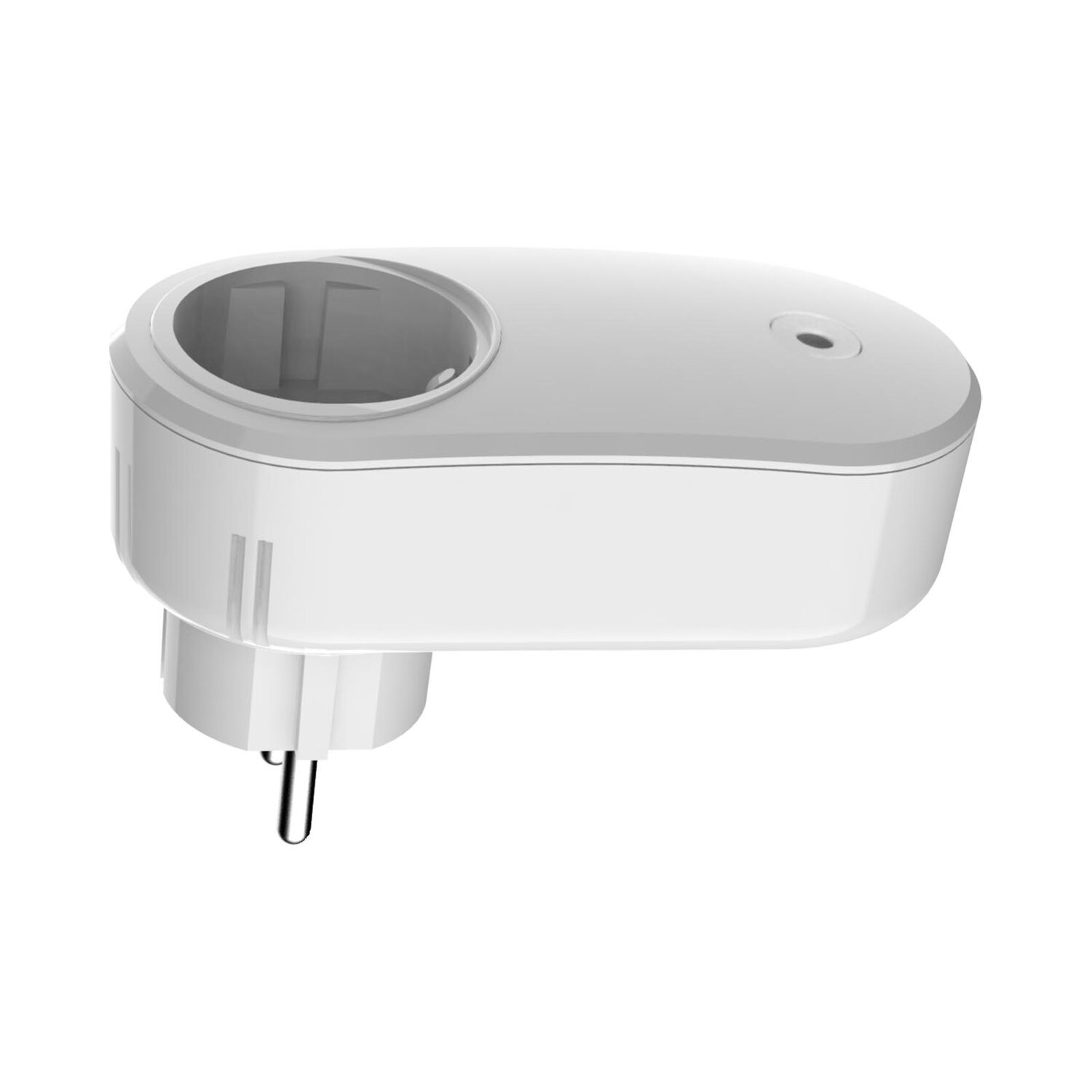

Product Description. Based on latest ZigBee 3.0 protocol, this ZigBee smart plug enables to control ON/OFF of the load and supports max. 16 scenes.
With waterproof grade of IP20, this ZigBee end device supports Touchlink commissioning, supports find and bind mode to bind a ZigBee remote, supports zigbee green power and can bind max. 20 zigbee green power switches, and supports over current protection and power metering, and enables to report power consumption to gateway.
| Zigbee profile | 0x0104(ZHA) |
|---|---|
| Device ID | 0x000A(Plug-in Unit) |
| Radio Frequency | 2.4GHz |
| Input Voltage | AC200-240V, 50/60Hz |
| Max. Load | 16A |
| Over Current Protection | 16.1A |
| Operating temperature | 0 to 40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 114.8×54.8×74.7(mm) |
| LED Indicator State | Definition (16.1A Over Current) |
| Flashes red slowly | Over current |
| Stays solid orange | Load power > 2200W |
| Stays solid yellow | Load power 2001-2200W |
| Stays solid green | Load power 1501-2000W |
| Stays solid cyan | Load power 1001-1500W |
| Stays solid blue | Load power <= 1000W |
| Flashes purple slowly | Firmware updating via OTA |
| Stays solid white at a low brightness | Load switched off |
