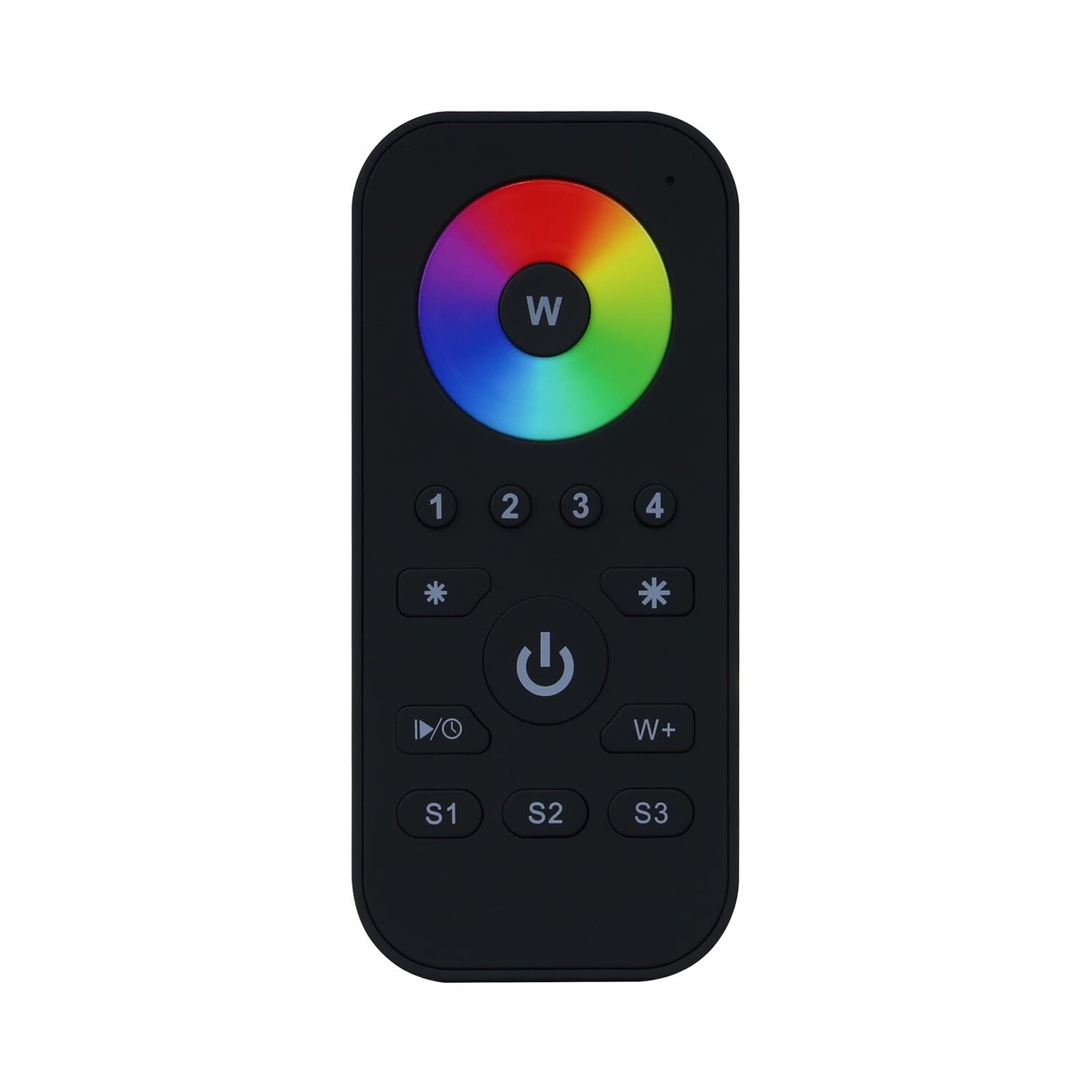

ZigBee RGBW Remote

SR-ZG2819S-RGB
Product description
  • Zigbee RGBW remote based on Zigbee 3.0
  • Enables to control RGB, RGBW and RGB+CCT lighting devices
  • Highly sensitive & highly stable touch color wheel, fast & precise color control
  • Battery powered remote with low power consumption
  • Enables to pair Zigbee lighting devices through touchlink commissioning
  • Supports find and bind mode to pair with Zigbee lighting devices
  • Supports 4 groups for binding max. 30 lighting devices
  • 2.4 GHz global operation
  • Transmission range up to 30m
  • Compatible with universal Zigbee Gateway products
  • Compatible with universal RGBW and RGB+CCT Zigbee lighting devices

SR-ZG2819S-RGB is a RGB ZigBee remote control that enables switch, dimming and RGB color control and works with a ZigBee gateway/coordinator, it shall be added to a ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices.
It is a low cost ZigBee remote powered by 3 AAA batteries due to robust, reliable ZigBee PRO networkking. The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
It enables to adjust RGB color and brightness of RGB ZigBee lighting devices. It enables to save and recall 4 scenes for each group.
The ZigBee remote supports Touchlink commissioning to bind a lighting device directly without a zigbee hub or after the remote and device are both added to the same zigbee hub network.

Protocol ZigBee 3.0
Operation Voltage 4.5V(3xAAA battery)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Protection Type IP20
Dimming Range 0.1%-100%
Dimension 120x55x17mm
Protection Grade IP20
