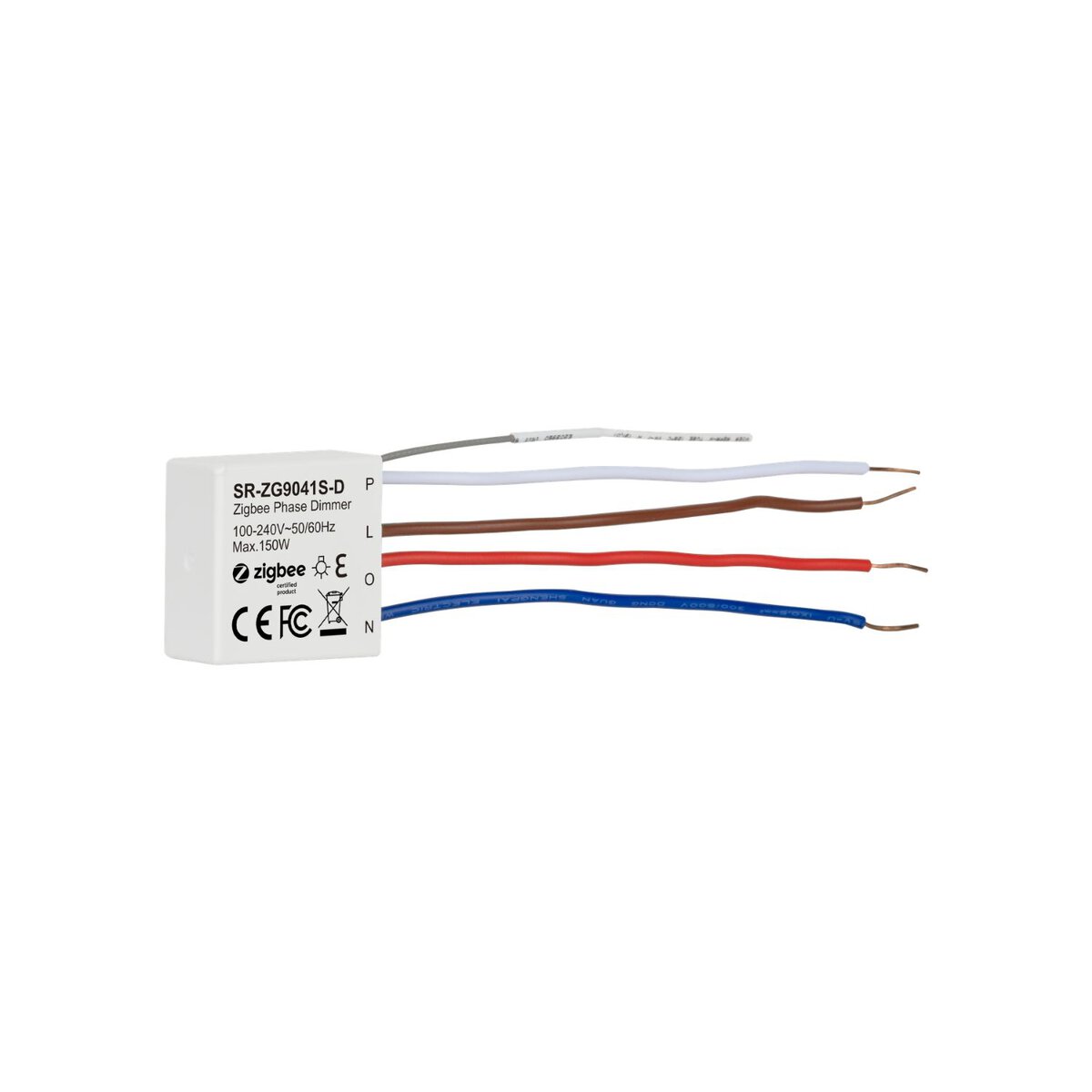

The Zigbee AC Phase Cut Dimmer is a compact smart dimming solution based on the latest Zigbee 3.0 protocol, supporting both two-wire and three-wire installations. It controls ON/OFF and brightness for various dimmable light sources, including LED, halogen, and CFL lamps. Featuring trailing-edge dimming, power metering, and smart load detection, it ensures smooth, safe, and efficient lighting control. Compatible with Zigbee remotes and gateways, it offers Touchlink pairing, overload protection, and soft start for enhanced reliability and user comfort. Ideal for modern smart home or commercial lighting systems.
| Input Voltage | 100-240VAC |
| Output Voltage | 100-240VAC |
| Output Current | 0.1-0.65A |
| Max. Number of Parallel Connected Load | 6 |
| Size(LxWxH) | 29.7×29.5x14mm |
