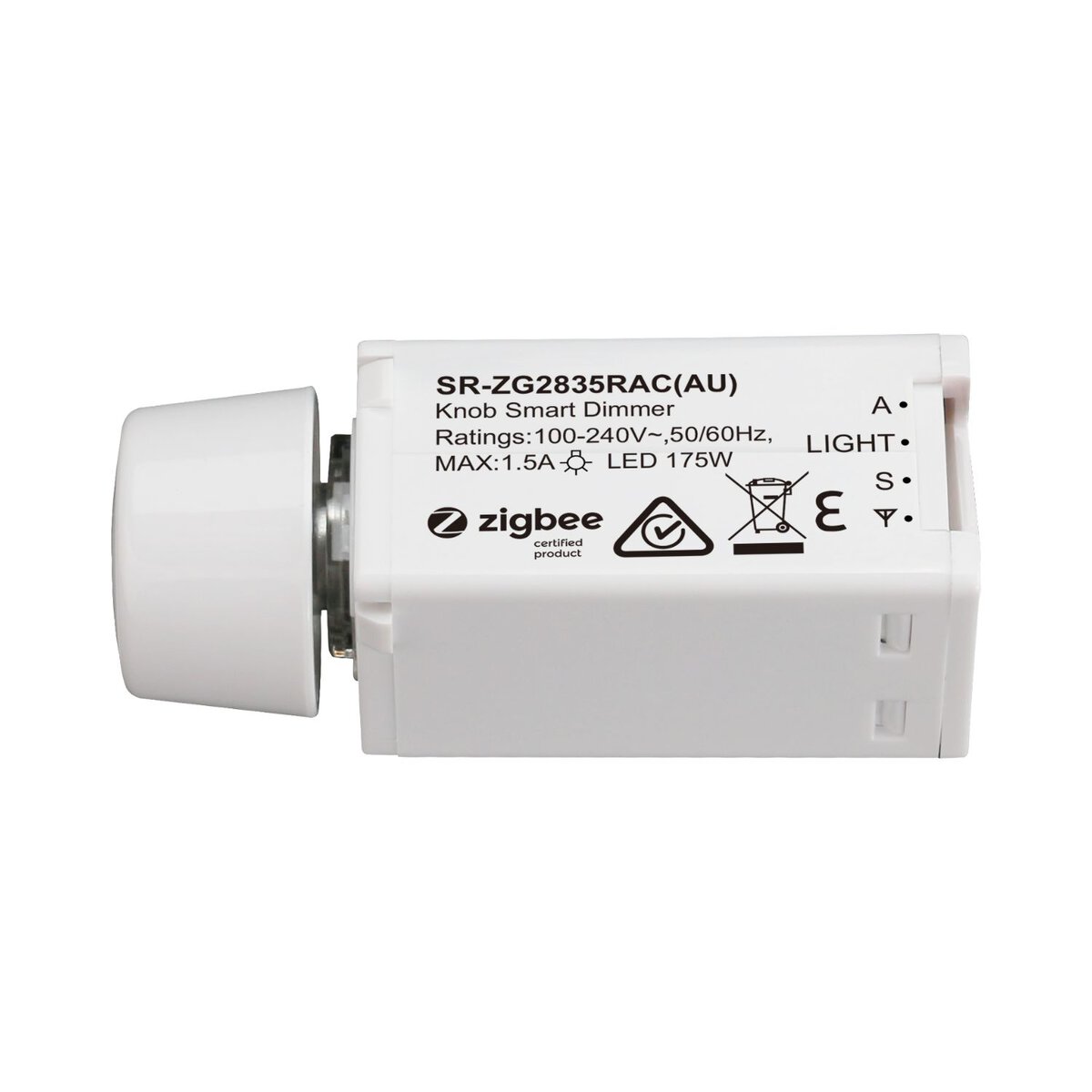

ZigBee Knob Smart Dimmer

SR-ZG2835RAC(AU)

Product description

ZigBee knob smart dimmer based on latest ZigBee 3.0 protocol
Neutral free, simple wiring
Supports resistive loads, capacitive loads or inductive loads
Enables to set minimum brightness and startup brightness
1 channel output, up to 350W
Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
Enables to control ON/OFF and light intensity of connected light source
ZigBee end device that supports Touchlink commissioning
Can be controlled by zigbee gateway, zigbee remote, local button
Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
Supports self-forming zigbee network without coordinator and add other devices to the network
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power switches
Compatible with universal ZigBee gateway products
With push switch input, can be controlled by universal AC push switches
Standard size, can be compatible with existing Australia wall switch plate
Radio Frequency: 2.4GHz
Waterproof grade: IP20

The Zigbee knob smart dimmer is based on the latest Zigbee 3.0 protocol and features neutral-free wiring for simple installation. It supports resistive, capacitive, and inductive loads, with 1-channel output up to 350W. Both leading-edge and trailing-edge versions are available, factory preset according to the selected version. The dimmer enables ON/OFF and light intensity control, with adjustable minimum and startup brightness. It supports Touchlink commissioning, Find and Bind mode, Zigbee Green Power, and self-forming Zigbee networks without a coordinator. It can be controlled via Zigbee gateways, remotes, local buttons, or AC push switches, and supports up to 20 Zigbee Green Power switches. The standard size fits existing Australia wall switch plates.

Input Voltage	100-240VAC
Input Frequency	50/60Hz
Output Voltage	100-240VAC
Output Current	1.5A max
Radio Frequency	2.4GHz
Size(LxWxH)	58.5x22x22mm
Ambient Temperature	-20℃ ~ +50℃
