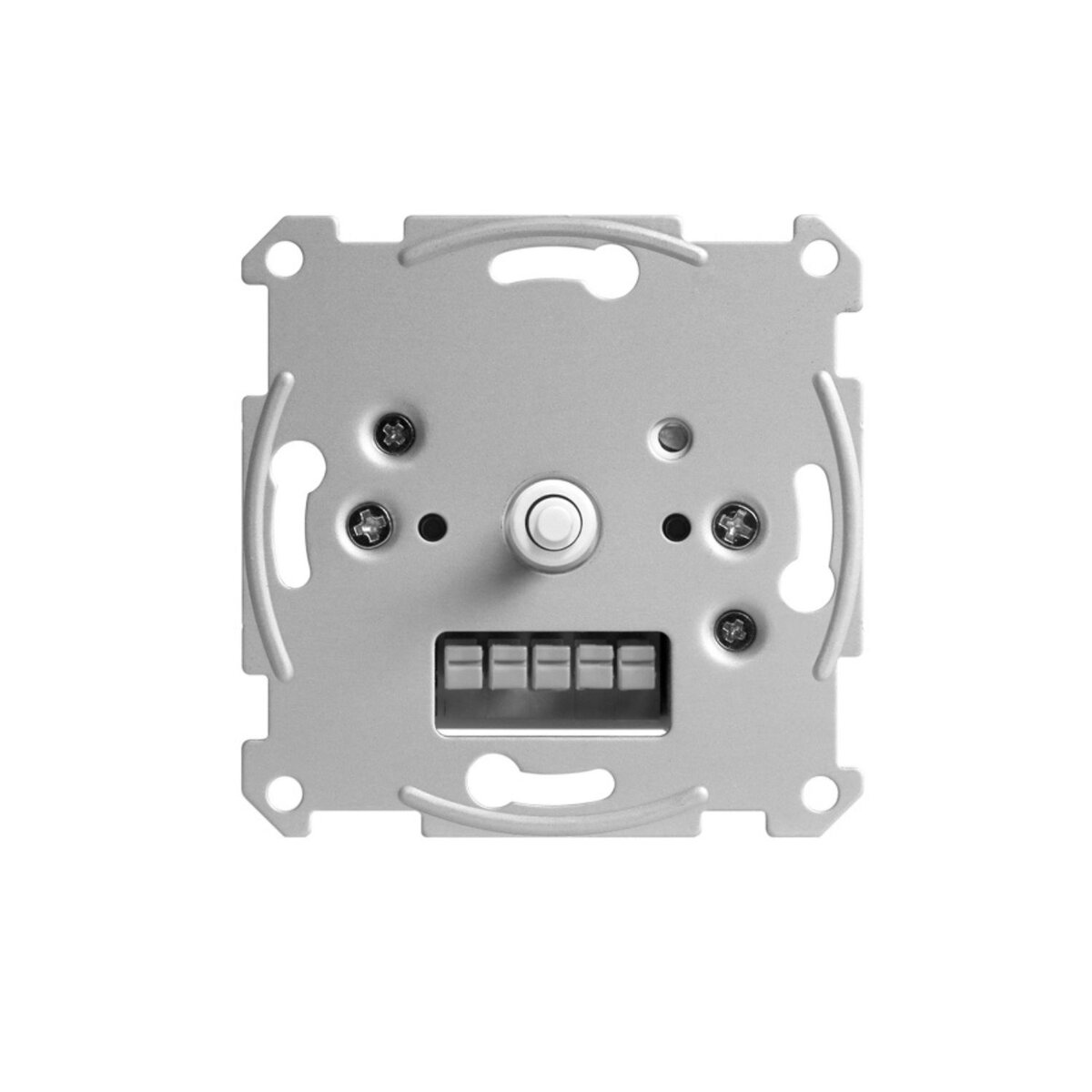

ZigBee Knob Smart Dimmer

SR-ZG2835RAC-NF
Product description
  • ZigBee knob smart dimmer based on latest ZigBee 3.0 protocol
  • 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
  • Supports resistive loads, capacitive loads or inductive loads
  • Supports minimum and startup brightness setting
  • 1 channel output, up to 600W
  • Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
  • Enables to control ON/OFF and light intensity of connected light source
  • ZigBee end device that supports Touchlink commissioning
  • Can be controlled by zigbee gateway, zigbee remote and local rotary knob
  • Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
  • Supports self-forming zigbee network without coordinator and add other devices to the network
  • Supports find and bind mode to bind a ZigBee remote
  • Supports zigbee green power and can bind max. 20 zigbee green power remotes
  • Compatible with universal ZigBee gateway products
  • With push switch input, can be controlled by universal AC push switches
  • Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
  • Radio Frequency : 2.4GHz
  • Waterproof grade: IP20
SR ZG2835RAC NF
SR ZG2835RAC NF


The Zigbee knob smart dimmer is based on the latest Zigbee 3.0 protocol and supports a wide 100–240VAC input and output voltage. It can operate with or without a neutral wire through self-adaptive wiring. Supporting resistive, capacitive, and inductive loads, it provides 1-channel output up to 600W, with leading-edge and trailing-edge versions available. Minimum and startup brightness can be configured. The dimmer supports ON/OFF and light intensity control via a Zigbee gateway, remote, or local rotary knob. It supports Touchlink commissioning, Find and Bind mode, self-forming Zigbee networks, and Zigbee Green Power, with up to 20 Green Power remotes. Compatible with universal Zigbee gateways, it can also be controlled by AC push switches.

Input Voltage 100-240VAC
Output Voltage 100-240VAC
Output Current 2.8A max
Size(LxWxH) 71x71x41mm
