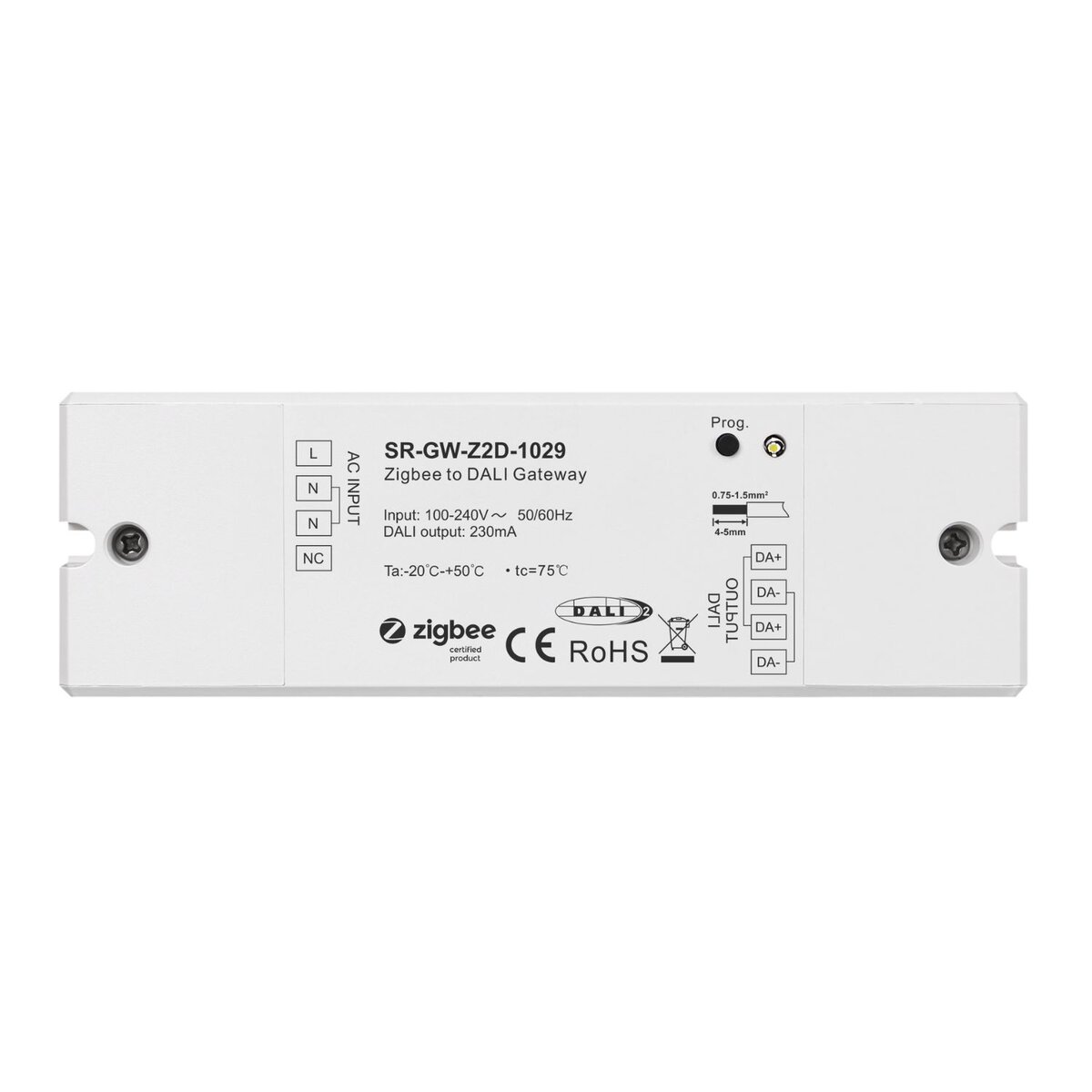

Zigbee DALI Controller

SR-GW-Z2D-1029

Product description

Zigbee-DALI bidirectional communication controller
Can control DALI system through the Zigbee system
Supports one DALI bus, allowing connection of 16 control gears (DT6, DT7, DT8) + 16 input devices (sensors, keypad…)
Up to 16 control gears, 16 input devices, 200 groups, and 200 scenes can be configured in the Zigbee system
Can also control Zigbee devices through the DALI input devices connected to the gateway such as push buttons and sensors
Supports DALI parts 251, 252, 253, can directly read and display energy report, lamp status and diagnostics data from D4i drivers
Waterproof grade: IP20
5 years warranty

This Zigbee DALI Controller is a comprehensive bridge device designed to seamlessly integrate ZigBee wireless networks with wired DALI lighting control systems in commercial and residential applications. Supporting one DALI bus with connections for DT6/DT7/DT8 control gears, push buttons, motion sensors, light sensors, and input sensors. With its bidirectional communication capability, the device enables control of both DALI systems through ZigBee networks and ZigBee devices through DALI input devices such as push buttons, sensors, making it an ideal solution for hybrid wireless and wired control environments.

Input Voltage	100-240VAC
Power Consumption	Max. 5.4W @ 220V full load
Output Voltage	16VDC
Guranteed DALI Current Output	230mA
Output Signal	DALI
Size(LxWxH)	145×46.5x16mm
Ambient Temperature	-20℃ ~ +50℃
