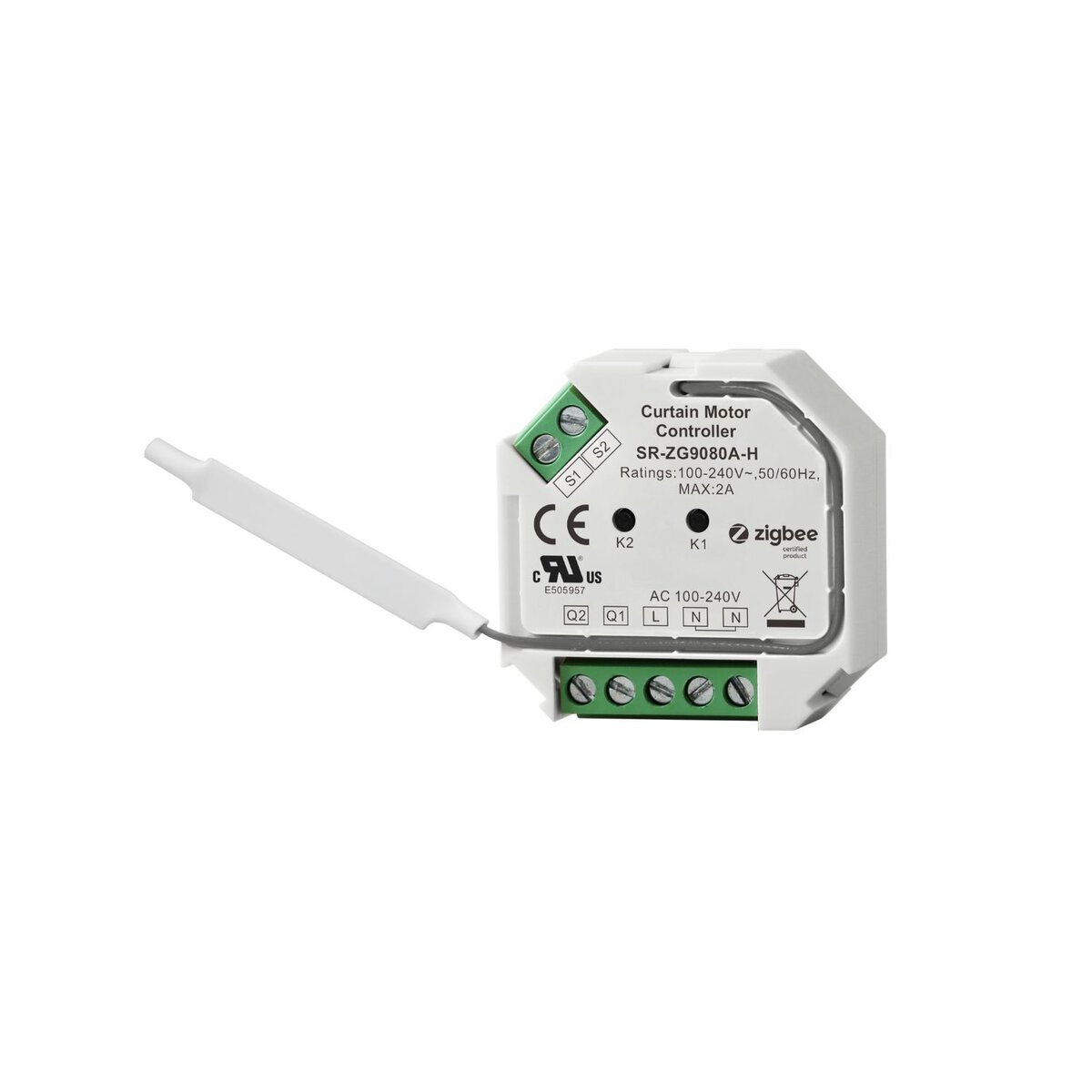

The Zigbee curtain motor controller is based on the latest Zigbee 3.0 protocol and supports various curtain types, including roller blinds, shutter blinds, and drapes. It can be controlled via a smart app or directly by a Zigbee remote, while external switches enable local control even when the controller is not added to a Zigbee network. Supporting both ON/OFF and level control, it provides accurate curtain control. The controller supports Touchlink commissioning, self-forming Zigbee networks without a coordinator, and Find and Bind mode for pairing a Zigbee remote. It also supports Zigbee Green Power and can bind up to 20 Zigbee Green Power remotes. Compatible with universal Zigbee Gateway products.
| Zigbee Protocol | Zigbee 3.0 |
| Input Voltage | AC100-240V |
| Output Voltage | AC100-240V |
| Max. Load Current | 2A |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 8% to 80% |
| Dimension (LxWxH) | 45.5x45x20.3mm |
