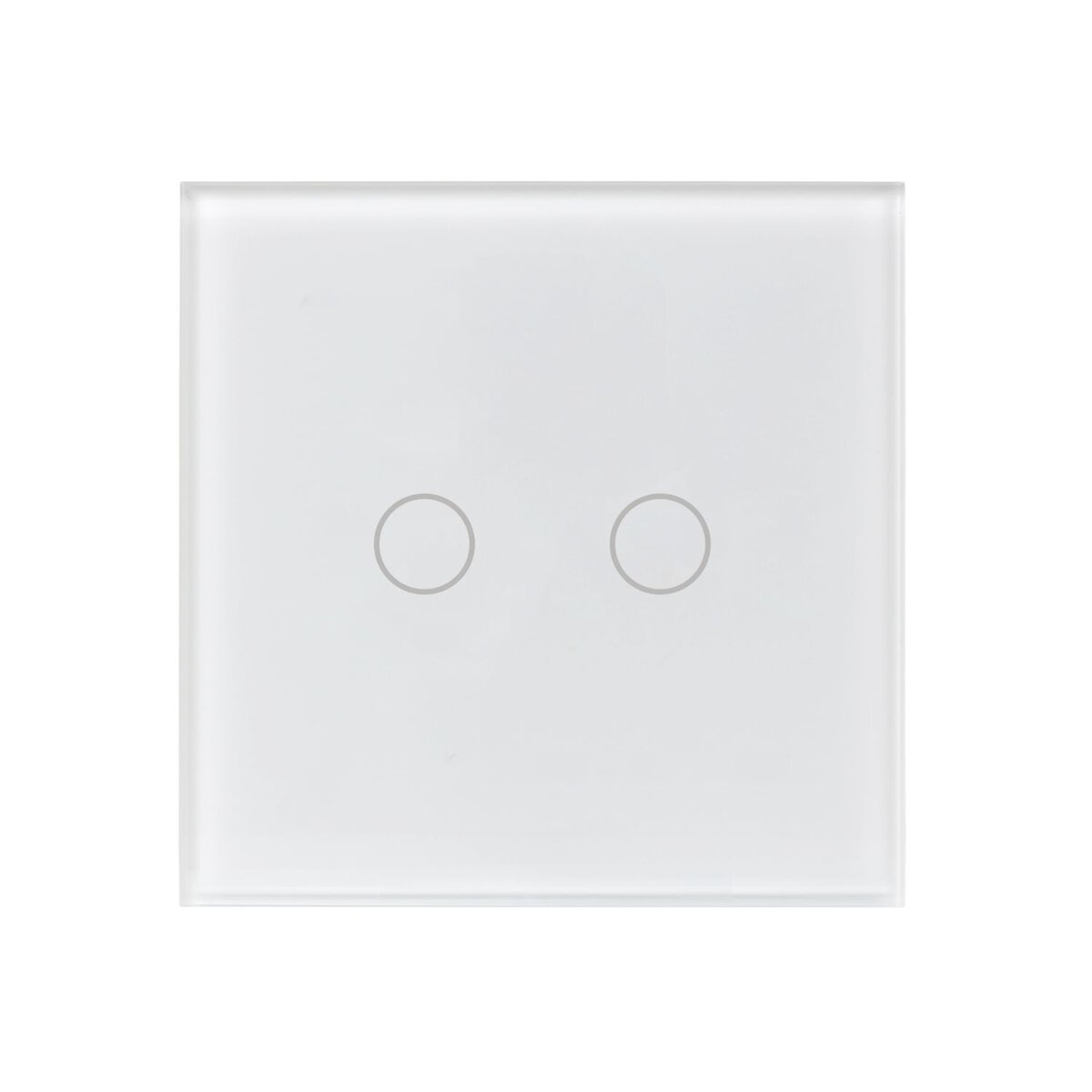

The Zigbee 2-gang lighting on/off touch panel is based on the latest Zigbee 3.0 protocol and supports a wide 100–240VAC input and output voltage. It can operate with a two-wire connection without a neutral lead and features a soft start function. With 2-channel output and a total maximum load of 1000W, it supports resistive, capacitive, and inductive loads for ON/OFF control of connected light sources. The panel supports Touchlink commissioning and can function as either a Zigbee lighting device or a Zigbee remote switch, using passive or active Touchlink accordingly. It is compatible with universal Zigbee Gateway products and provides active power and energy metering functionality. The Bypass is available as an extension unit.
| Input Voltage | 100-240VAC |
| Output Voltage | 100-240VAC |
| Output Power |
Incandescent: 1000W; Fluorescent: 750W; Hologen: 650W; LED/CFL: 550W |
| Size(LxWxH) | 86x86x31.8mm |
