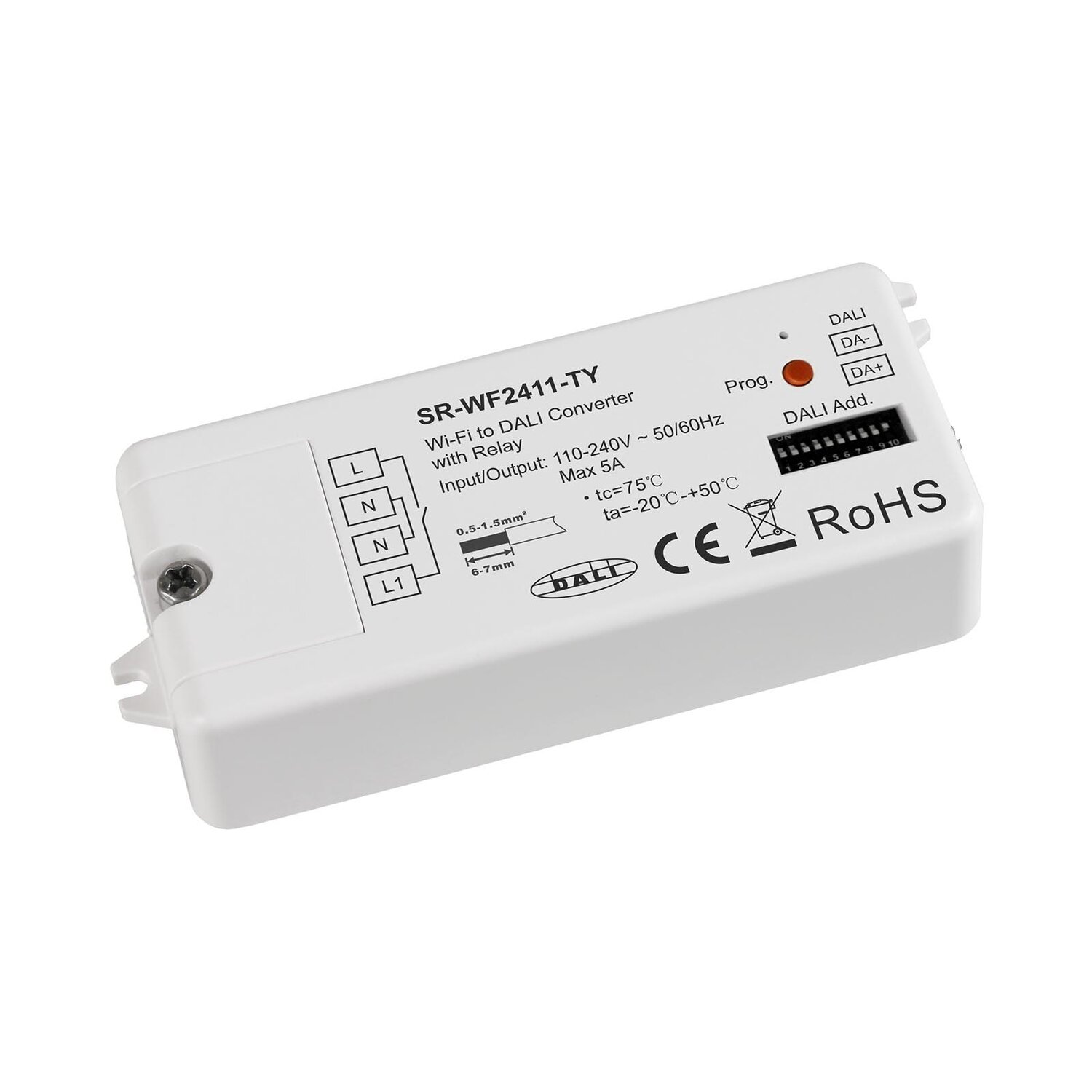

WiFi to DALI Converter

SR-WF2411-TY
Product description
  • WiFi to DALI Converter based on Tuya WiFi
  • WiFi signal input, integrated into existing DALI line, 110-240VAC power input
  • Controls DALI control gears on existing DALI line through WiFi
  • With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load
  • Voice control enabled through Amazon Alexa & Google Assistant
  • DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
  • Color control according to DALI specifications of Device Type 8,
  • Color type: Tc, XY coordinates, RGBW selectable by DIP switches
  • DALI address control mode or group control mode selectable by DIP switch
  • Enables to select the DALI address (00-63) to be controlled by DIP switches
  • Enables to select the DALI group (0-15) to be controlled by DIP switches
  • Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
  • Enable to control all devices on DALI line via broadcast
  • Waterproof grade: IP20

The WiFi to DALI Converter, based on Tuya WiFi, enables control of DALI control gears on an existing DALI line via WiFi, with 110-240VAC power input and integrated relay output supporting up to 5A for traditional incandescent and HV halogen lamps or 1.6A for LED loads. It supports voice control through Amazon Alexa and Google Assistant, and allows selection between DALI DT6 or DT8 device types via DIP switches, with configurable color types including Tc, XY coordinates, and RGBW. The converter offers flexible control options through DALI address, group, or broadcast modes, with DIP switch selection for DALI address (00–63) and group (0–15), enabling control of a specific group, address, or all devices on the DALI line.

Input Power 110-240VAC
Input Signal WiFi 2.4GHz
DALI DALI current consumption Max. 4mA
Output, relay Switching voltage 110-240VAC
Output, relay Max. Current Incandescent: 5A LED: 1.6A
Environment Operating temperature -20℃-+50℃ 8% to 80%
Environment Relative humidity -20℃-+50℃ 8% to 80%
Others Dimensions 95x37x20mm
