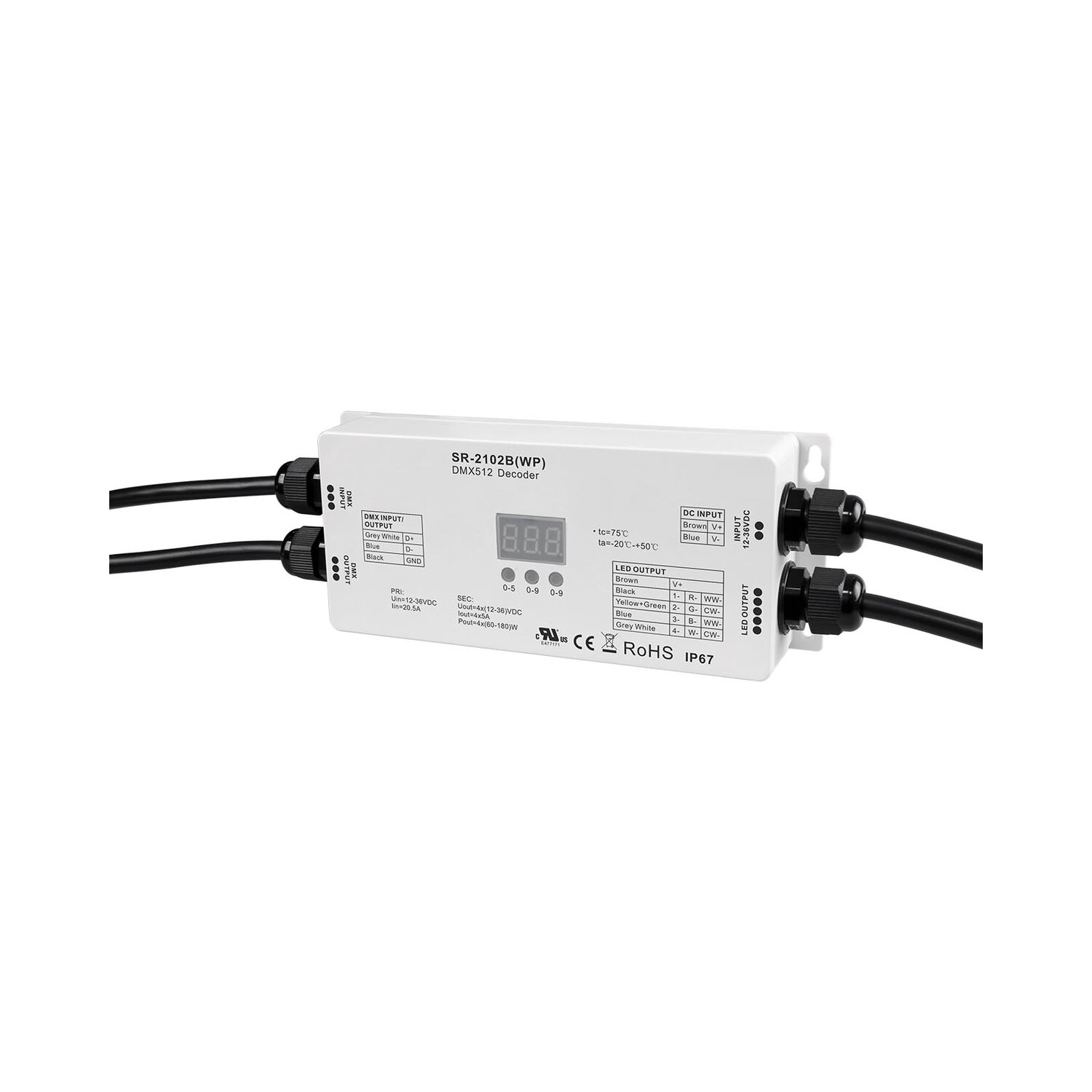

The Waterproof DMX512 Decoder features a standard DMX512 compliant control interface, allowing for free DMX address setting. Available in two types, Constant Voltage and Constant Current, it is suitable for different LED lamps.
It works with a power repeater to expand output power without limits and has an IP67 waterproof rating.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-48VDC | 12-48VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 180.5×73.6x38mm | 180.5×73.6x38mm | 180.5×73.6x38mm |
