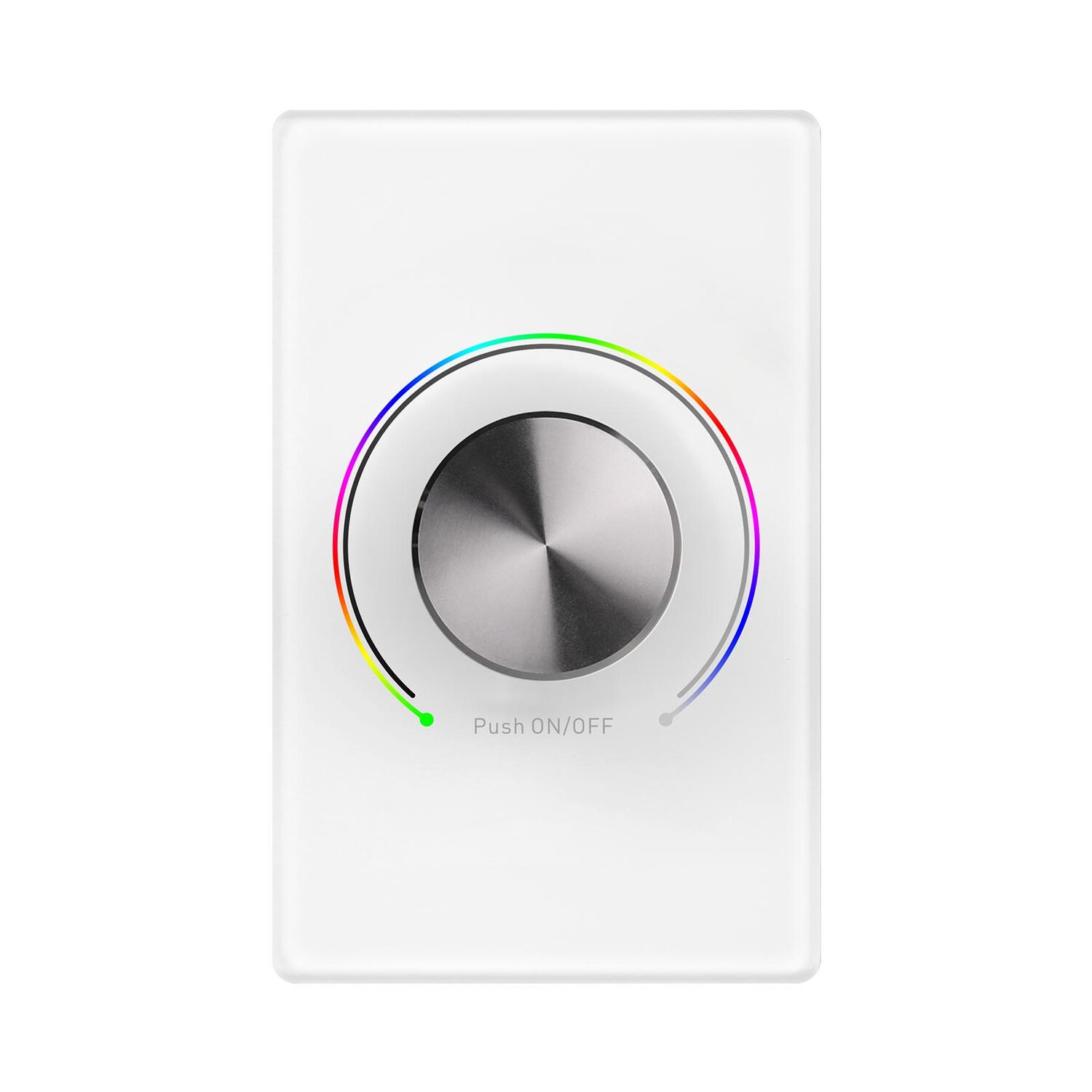

The Wall Mounted RF AC RGB Controller features a rotation-sensitive design, operates at 916.5MHz radio frequency, and is compatible with all universal series RF receivers. It allows control of RGB color for one zone of an RF receiver, offering a safe and reliable full isolation design.
| Designation | RF AC RGB Controller |
|---|---|
| Power connection | L,N AC mains |
| Operating voaltage | 100-240V AC |
| Input current | 15mA max |
| Output | RF signal |
| Perm. Cable cross-section | 1…4 mm2 |
| Ambient temperature | 0…+50℃ |
| Type of protection | IP 20 |
| Protection class | II |
| Dimensions | 75x120x53mm |
