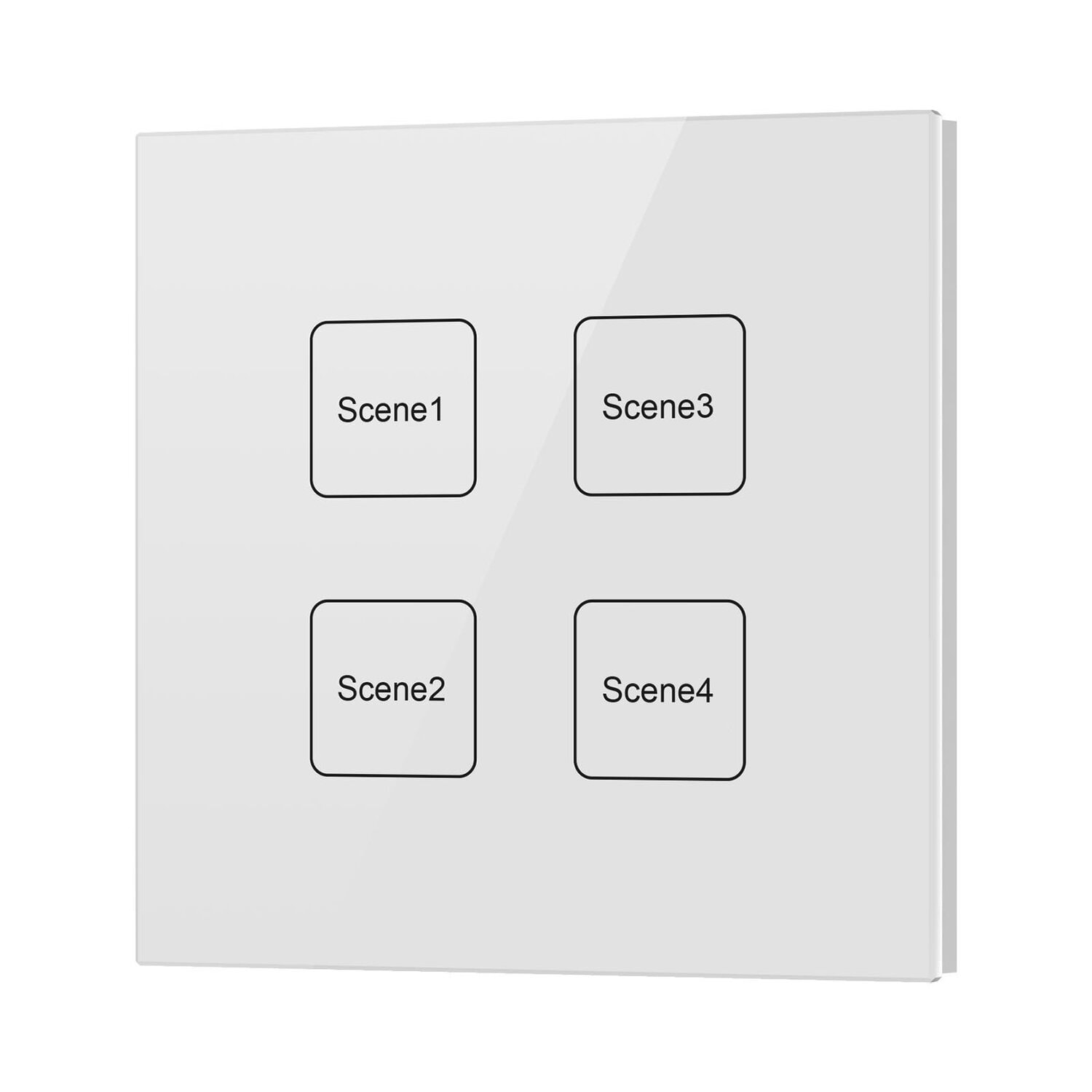

Wall-mounted DALI Scene Controller

SR-2400TS

Product description

Touch sensitive.
Glass interface (white, black)
Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
DALI bus powered, consumption current is 4mA.
Enables to recall 4 DALI scenes from total 16 DALI scenes preset in the control gears on DALI line.
Rotary switches to set starting DALI scene number to be recalled (settable from 0-15)
Waterproof grade: IP20.

The wall-mounted DALI scene controller features a touch-sensitive glass interface available in white and black, complies with DALI standard protocols IEC 62386-102 and IEC 62386-207, is powered by the DALI bus with a consumption current of 4mA, enables recalling 4 DALI scenes from a total of 16 preset scenes on the DALI line, and allows setting the starting DALI scene number to be recalled via rotary switches adjustable from 0 to 15.

Output Signal	DALI signal
Power Supply	Provided by DALI bus
Power consumption	4 mA
Operating temperature	0-40℃
Relative humidity	8% to 80%
Dimensions	86x86x29.1mm
