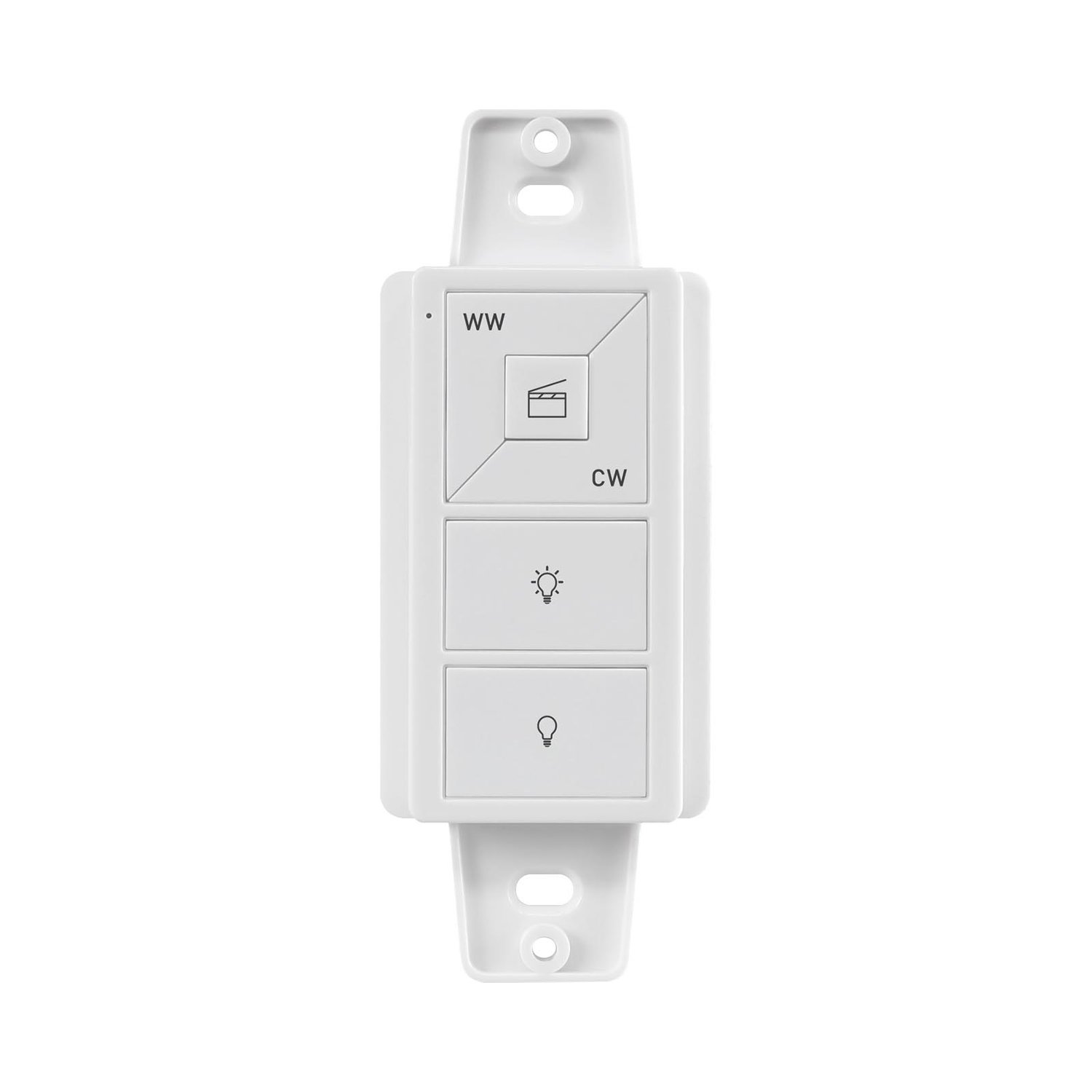

The Wall Mounted CCT ZigBee Remote Controller is a Zigbee 3.0 CCT remote that enables pairing with Zigbee lighting devices via touchlink commissioning without a coordinator, supports find and bind mode for connecting with devices in the same network, controls one group with up to 30 lighting devices, operates on the 2.4 GHz global frequency, features long battery life mesh technology, offers a transmission range of up to 30 meters, and is compatible with universal Zigbee gateways and CCT Zigbee lighting devices.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3VDC (CR2032) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) 30m |
Transmission Range (free field) 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 66×32.5×8.9mm |
