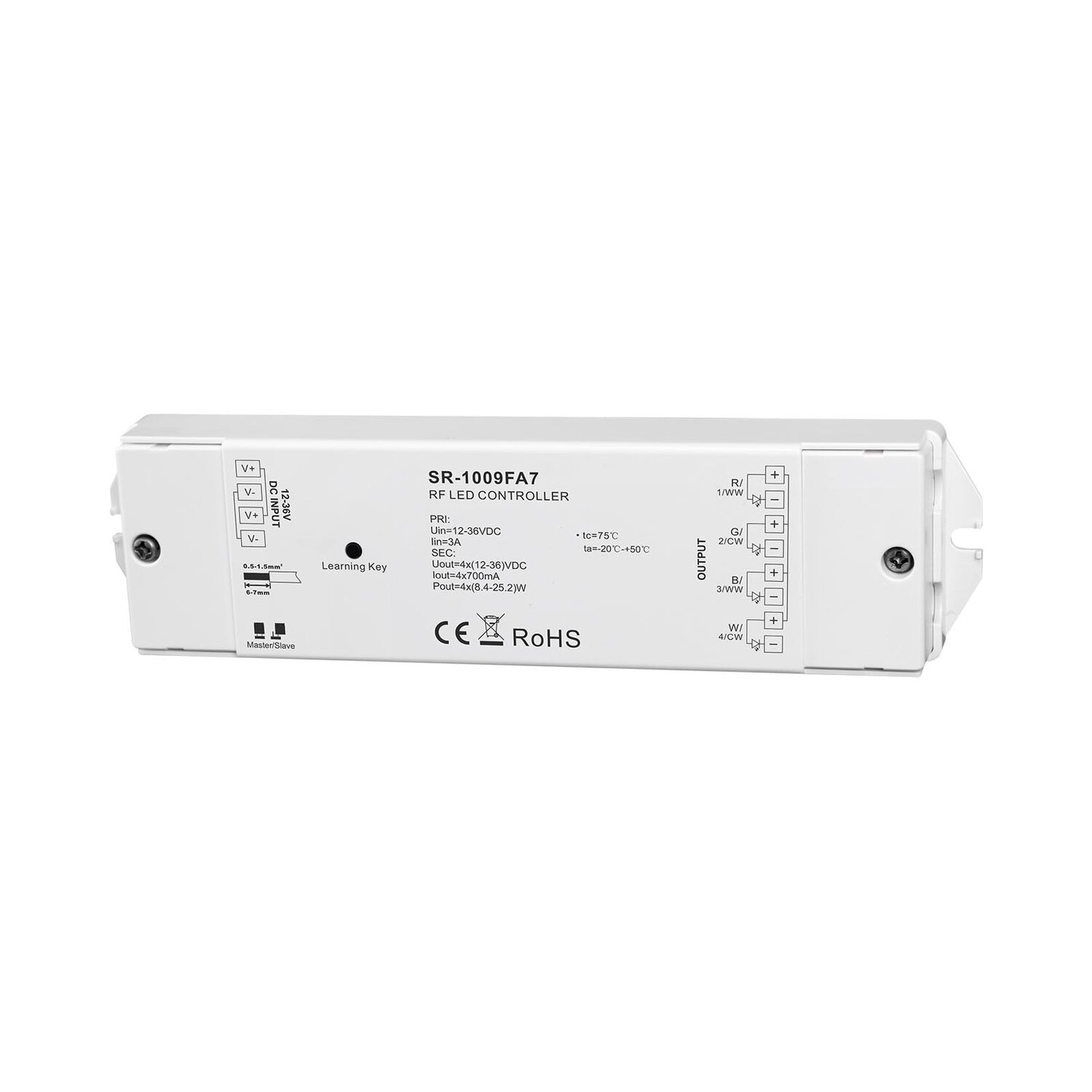

The SR-1009FA7 is 4CH 700mA RF constant current LED controller which can be compatible with a variety of remotes to control single color, dual color LEDs and RGBW LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. While working with WiFi-RF converters, the RF controller can be WiFi controlled by APP installed on IOS or Android mobile devices. Waterproof version is available with IP67 rating.
| No | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x500mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(6-18)W | 4x(8.4-25.2)W |
| Connector Current Rating | Max. 10A | Max. 10A | Max. 10A | Max. 10A |
| Wire Size 0.32-3.3mm 2 (12-22AWG) | Wire Size 0.32-3.3mm 2 (12-22AWG) | 0.32-3.3mm 2 (12-22AWG) | 0.32-3.3mm 2 (12-22AWG) | 0.32-3.3mm 2 (12-22AWG) |
| Remarks | Constant voltage | Constant current | Constant current | Constant current |
| Size(LxWxH) | 178x46x22mm | 178x46x22mm | 178x46x22mm | 178x46x22mm |
