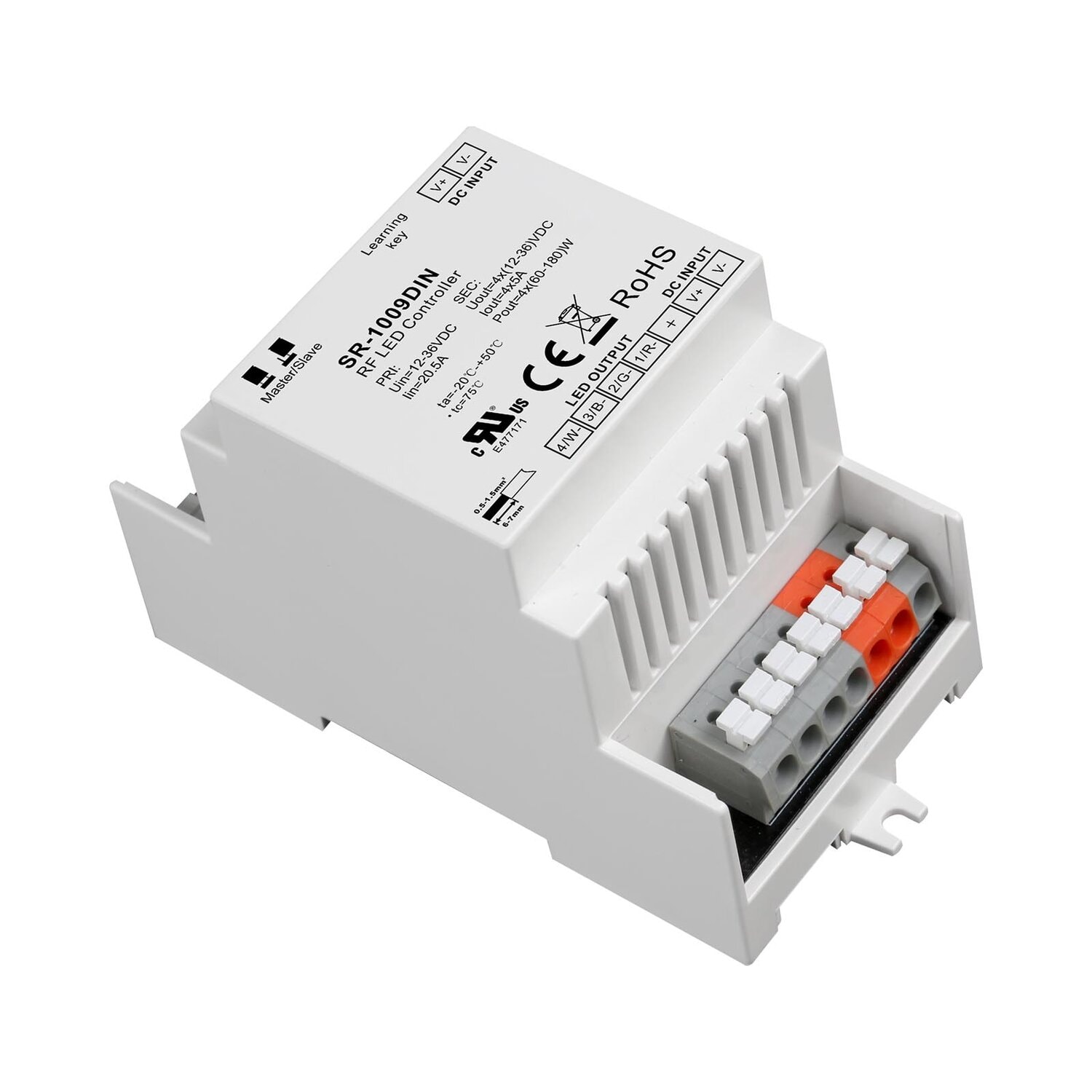

The RF RGBW LED controller SR-1009din is an din rail mounted RF receiver which can be compatible with a variety of remotes to control single color, dual color LEDs and RGBW LEDs with constant voltage output. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. While working with WiFi-RF converters, the RF controller can be WiFi controlled by APP installed on IOS or Android mobile devices.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Connector Current Rating | Max. 10A | Max. 10A | Max. 10A |
| Wire Size | 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) | 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) | 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 110x53x65mm | 110x53x65mm | 110x53x65mm |
