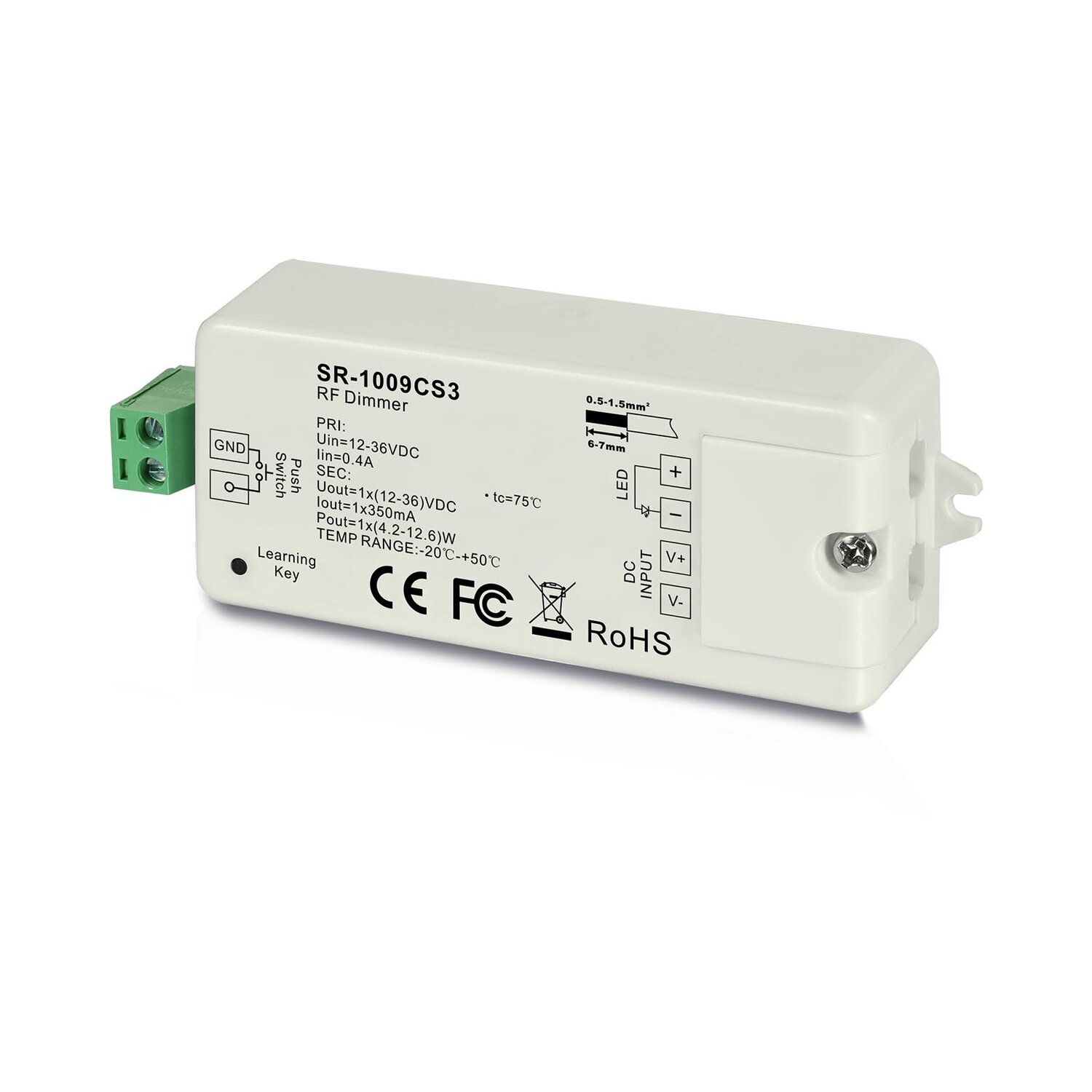

The Universal Series RF Receiver operates on radio frequencies of 868/869.5/916.5/434 MHz and is designed for versatile use.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-48VDC | 12-48VDC | 12-48VDC |
| Output Current | 1x8A@12-36VDC 1x4A@48VDC | 1x350mA | 1x700mA |
| Output Power | 1x(96-288)W@12-36VDC 1x192W@48VDC | 1x(4.2-16.8)W | 1x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 95x37x20mm | 95x37x20mm | 95x37x20mm |
