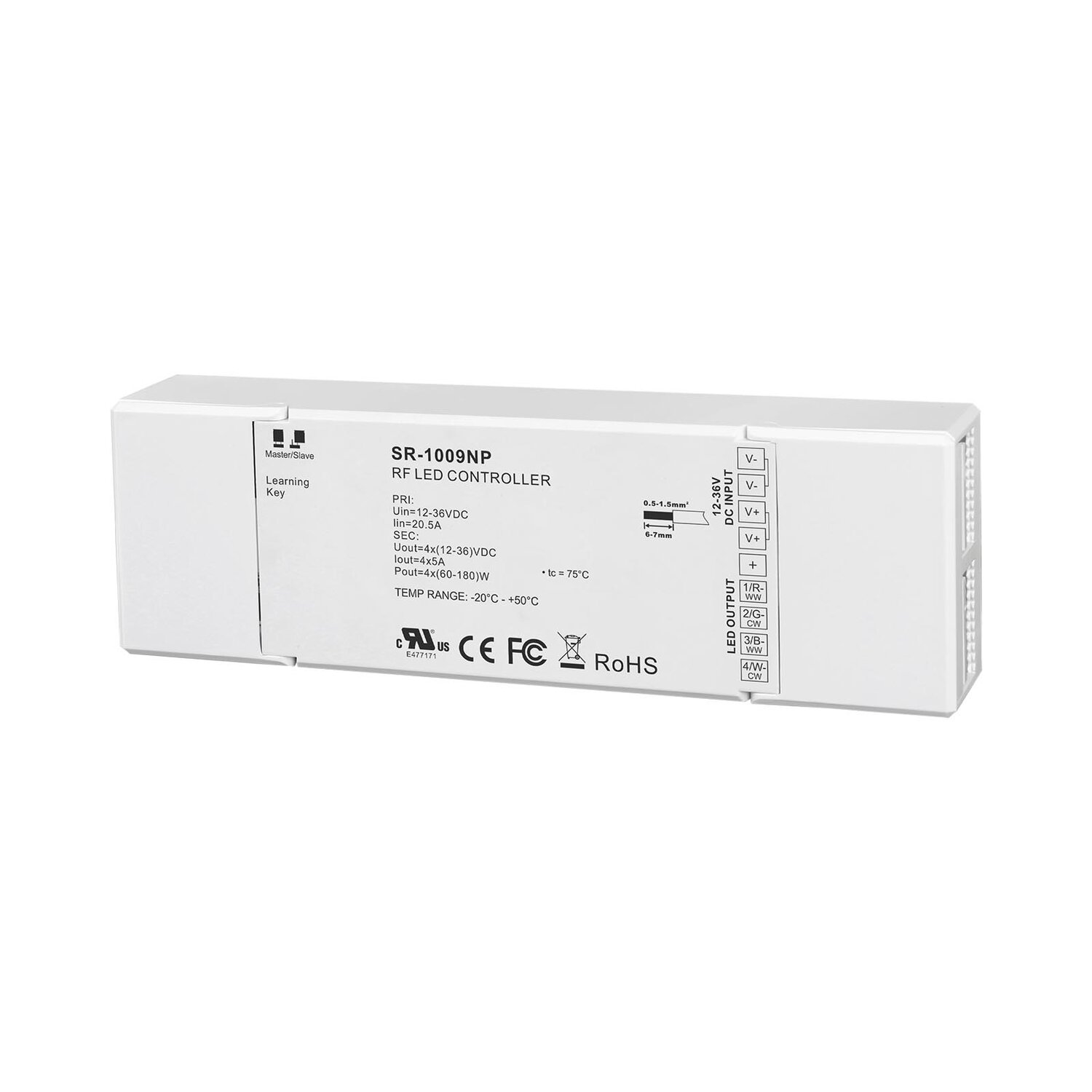

The Universal Series RF Receiver operates at radio frequencies of 869.5 MHz, 916.5 MHz, and 434 MHz, providing versatile connectivity options for various RF applications. It is designed to work seamlessly with universal RF controllers, enabling efficient control of connected devices.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Connector Current Rating | Max. 10A | Max. 10A | Max. 10A |
| Wire Size | 0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) |
0.32-3.3mm² (12-22AWG) 0.32-3.3mm² (12-22AWG) |
0.32-3.3mm² (12-22AWG) |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 170×53.4x28mm | 170×53.4x28mm | 170×53.4x28mm |
