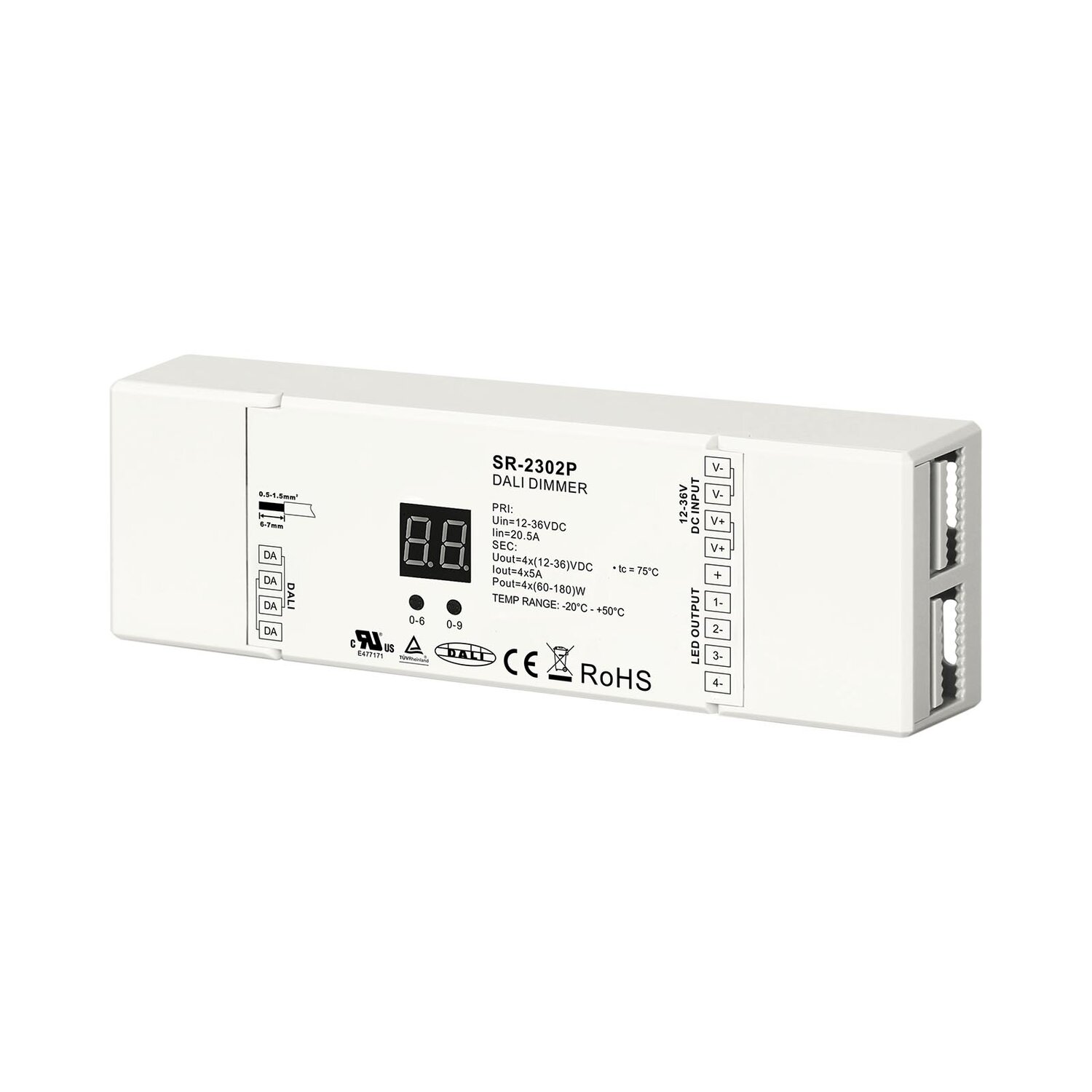

The Universal Series DALI Dimmer complies with IEC 62386-101: 2014, IEC 62386-102: 2014, and IEC 62386-207 Ed2 standards, featuring a built-in DALI-2 interface and supporting DALI DT6 devices.
It is compatible with all DALI systems available in the market and offers both manual and automatic DALI address setting, with a digital display for indicating the DALI address.
The dimmer includes four channels with the same address and can work with a power repeater to expand output power without limitation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 170×53.4x28mm | 170×53.4x28mm | 170×53.4x28mm |
| DALI Consumption | 2mA | 2mA | 2mA |
| Dimming Range | 0.1%-100% | 0.1%-100% | 0.1%-100% |
| Ambient Temperature | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ |
