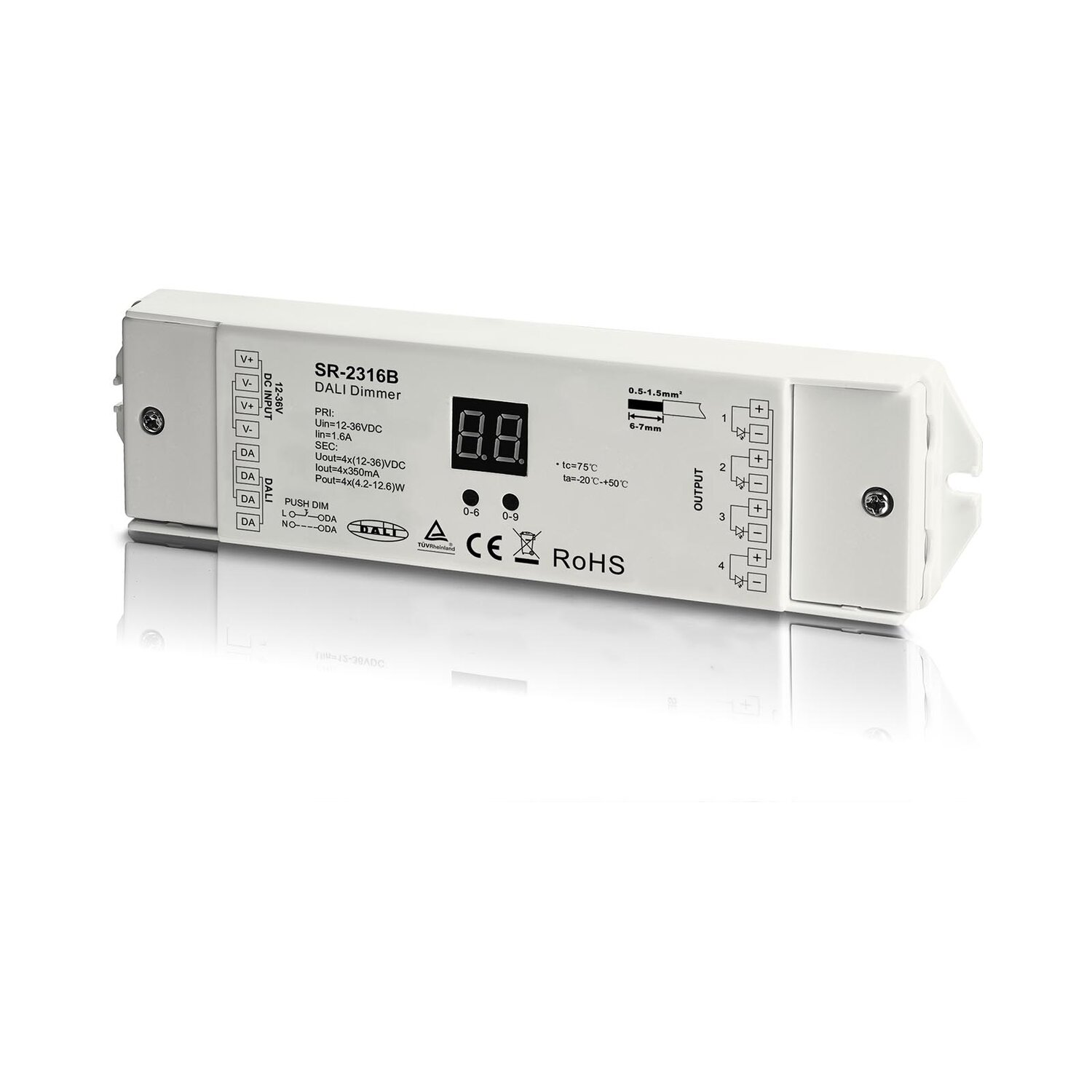

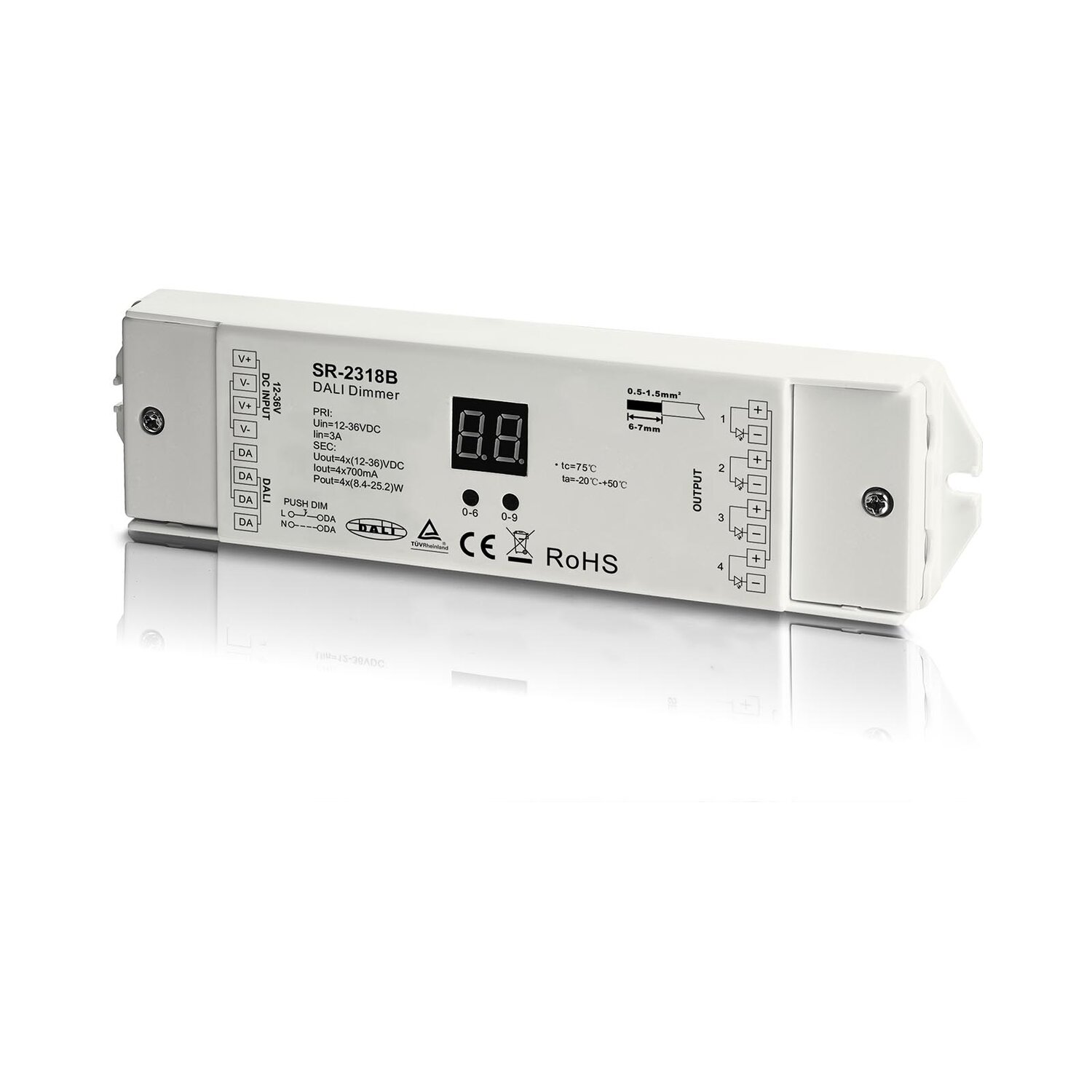

The Universal Series DALI Dimmer is a DALI DT6 device with a built-in DALI-2 interface, compliant with IEC 62386-101:2014, 62386-102:2014, and 62386-207 Ed2 standards, compatible with all DALI systems on the market. It supports both push dimming and DALI dimming modes, features four output channels with address settings from one to four, and offers manual or automatic DALI address configuration with a digital display for indication. The dimmer can be paired with power repeaters to expand output power without limitation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-48VDC | 12-48VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-16.8)W | 4x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 178x46x22mm | 178x46x22mm | 178x46x22mm |
| DALI Consumption | 2mA | 2mA | 2mA |
| Dimming Range | 0.1%-100% | 0.1%-100% | 0.1%-100% |
| Ambient Temperature | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ |
