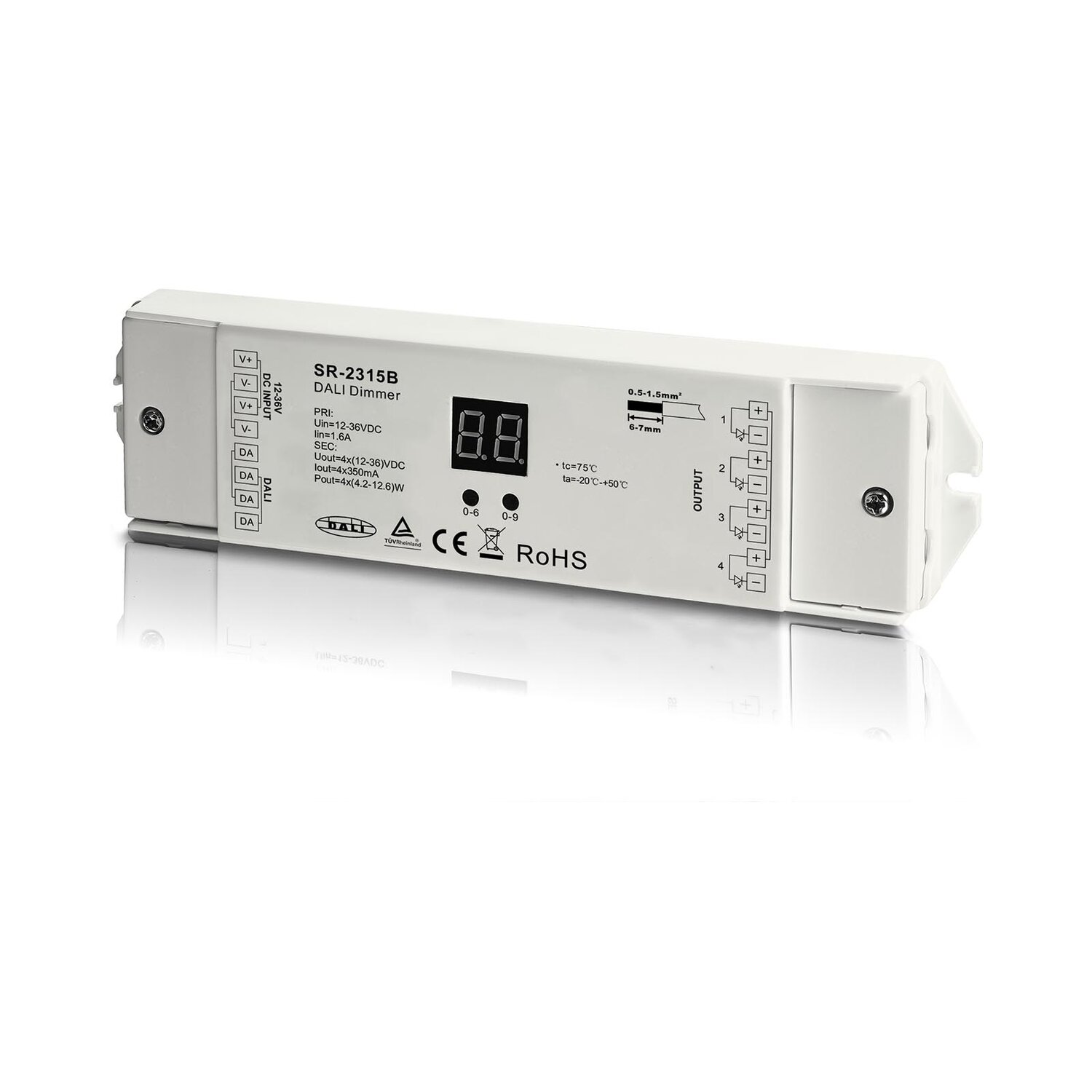

The Universal Series DALI Dimmer is a DALI DT6 device with a built-in DALI-2 interface, compliant with IEC 62386-101:2014, 62386-102:2014, and 62386-207 Ed2 standards, designed to match all DALI systems in the market. It offers four output channels with flexible address settings from one to four, supporting both manual and automatic DALI address configuration, with a digital display for address indication. The dimmer can be used with power repeaters to expand output power without limitation.
| No | 1 | 2 | 3 | 4 | 4 |
|---|---|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x650mA | 4x700mA | 4x900mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(7.8-23.4)W | 4x(8.4-25.2)W | 4x(10.8-32.4)W Constant current |
| Remarks | Constant voltage | Constant current | Constant current | Constant current | 4x(10.8-32.4)W Constant current |
| Size(LxWxH) | 178x46x22mm | 178x46x22mm | 178x46x22mm | 178x46x22mm | 178x46x22mm |
| DALI Consumption | 2mA | 2mA | 2mA | 2mA | 2mA |
| Dimming Range | 0.1%-100% | 0.1%-100% | 0.1%-100% | 0.1%-100% | 0.1%-100% |
| Ambient Temperature | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ |
