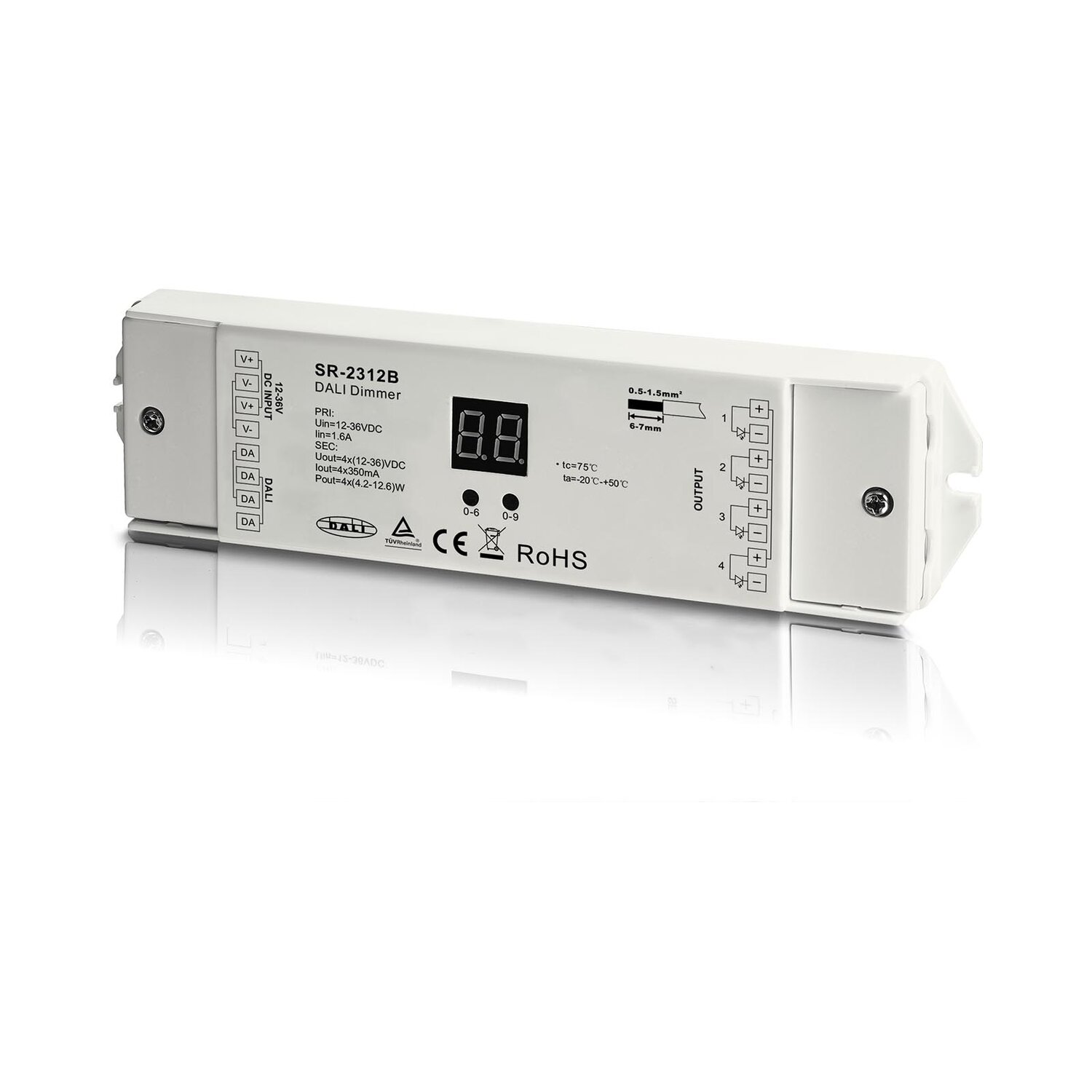

The Universal Series DALI Dimmer is a DALI DT6 device with a built-in DALI-2 interface, fully compliant with IEC 62386-101:2014, 62386-102:2014, and 62386-207 Ed2 standards, designed to be compatible with all DALI systems on the market. It features four output channels sharing the same DALI address, which can be set manually or automatically and is clearly indicated by a digital display. The dimmer also supports connection with power repeaters to expand output power without limitation.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-36VDC | 12-36VDC | 12-36VDC |
| Output Current | 4x5A | 4x350mA | 4x700mA |
| Output Power | 4x(60-180)W | 4x(4.2-12.6)W | 4x(8.4-25.2)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 178x46x22mm | 178x46x22mm | 178x46x22mm |
| DALI Consumption | 2mA | 2mA | 2mA |
| Dimming Range | 0.1%-100% | 0.1%-100% | 0.1%-100% |
| Ambient Temperature | -20℃ +50℃ | -20℃ +50℃ | -20℃ +50℃ |
