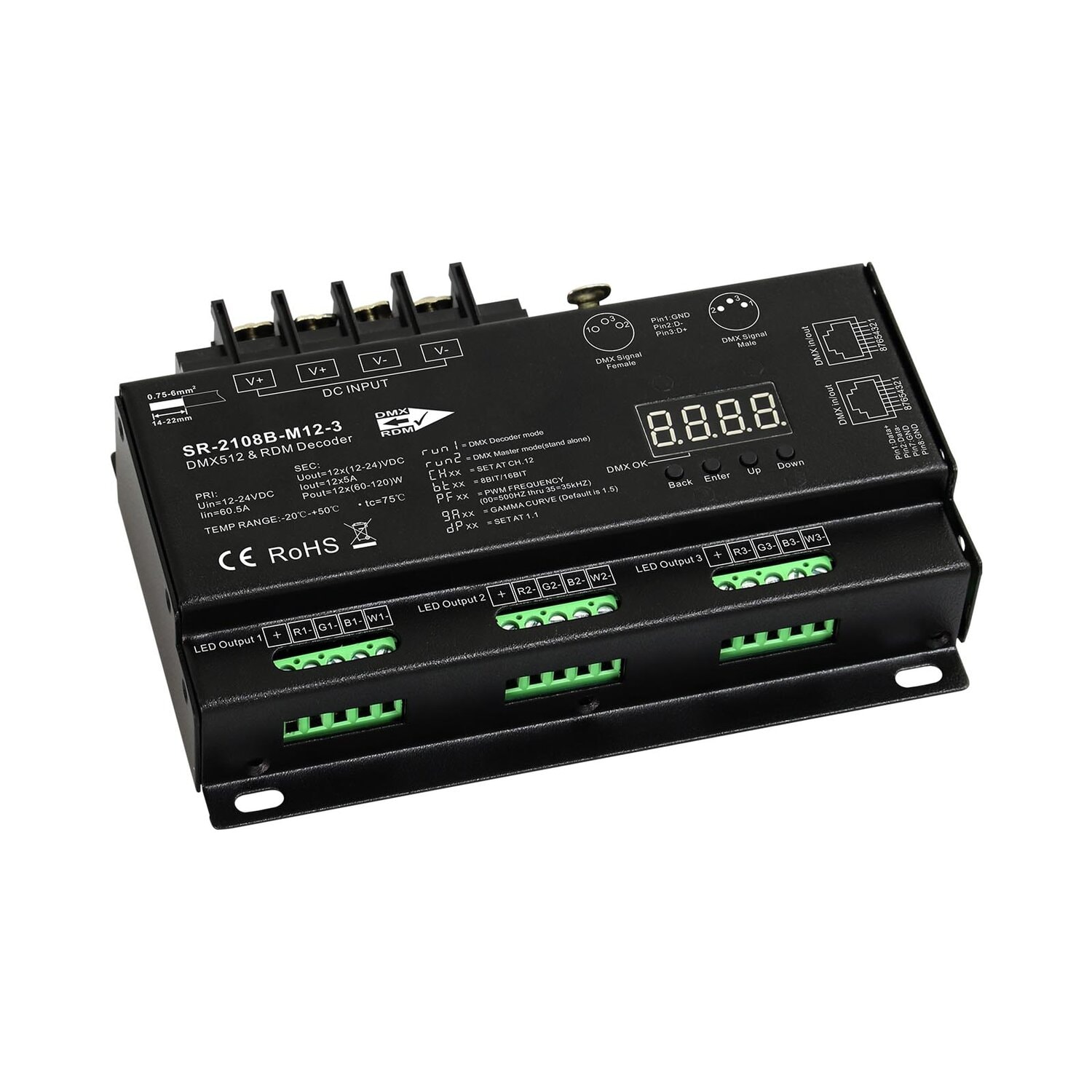

The Ultra-Pro 12CH RDM DMX512 Decoder supports both master and decoder modes with RDM functionality, featuring a metal housing and a digital display for direct data readout and DMX address configuration.
It includes multiple DMX input/output interfaces such as RJ45, XLR, and screw terminals, with 12 common anode PWM output channels and selectable DMX channel modes of 1CH, 4CH, 6CH, or 12CH.
The decoder allows configuration of PWM resolution to 8-bit or 16-bit, output frequency from 500Hz to 35kHz, gamma dimming curve from 0.1 to 9.9, and decoding mode, and is designed with galvanic isolation for enhanced signal integrity.
| No | 1 | 2 | 3 |
|---|---|---|---|
| Input Voltage | 12-24VDC | 12-48VDC | 12-48VDC |
| Output Current | 12x5A | 12x350mA | 12x700mA |
| Output Power | 12x(60-120)W | 12x(4.2-16.8)W | 12x(8.4-33.6)W |
| Remarks | Constant voltage | Constant current | Constant current |
| Size(LxWxH) | 165.5×99.7x38mm | 165.5×99.7x38mm | 165.5×99.7x38mm |
| Protection | Short circuit | Short circuit | Short circuit |
