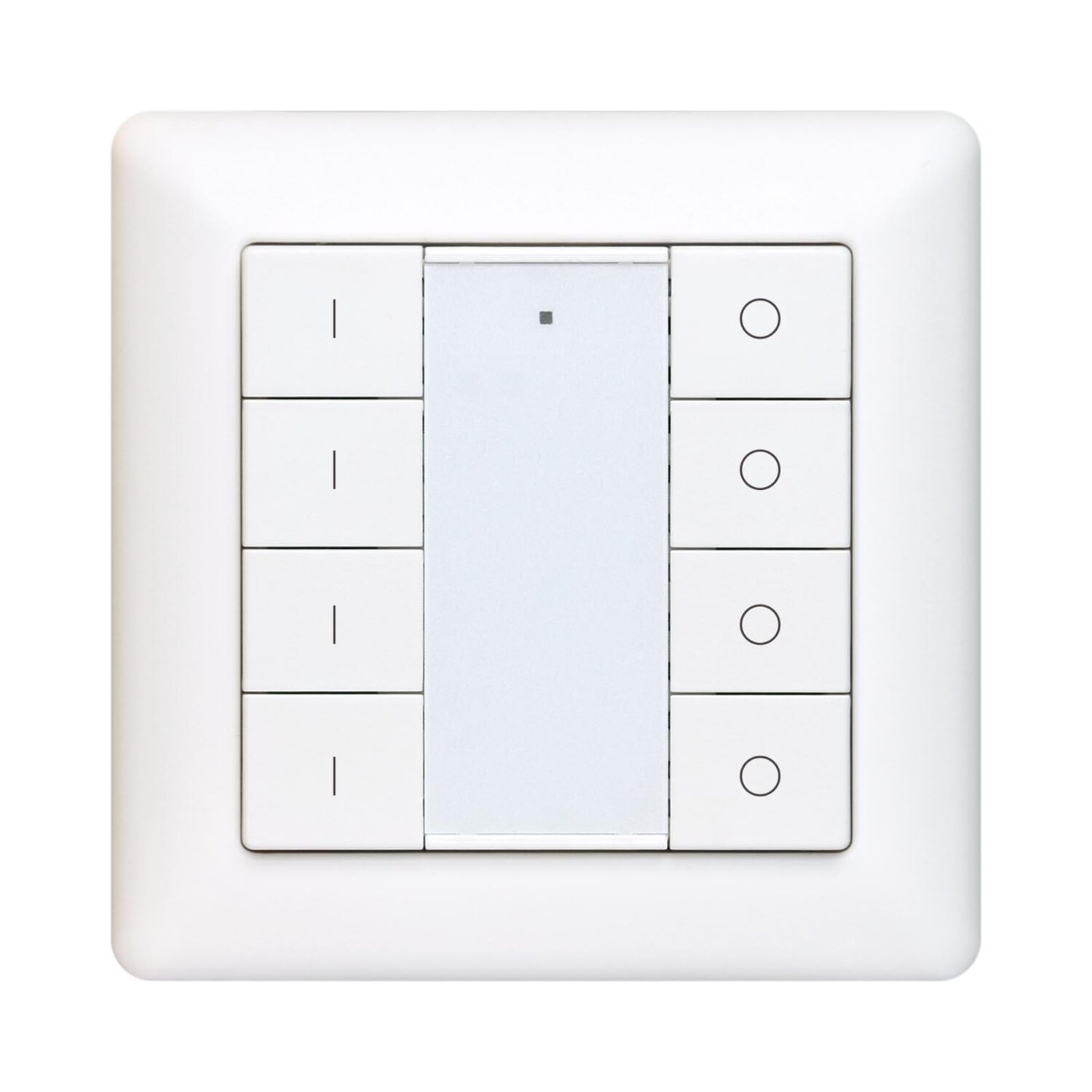

SR-ZG9001K8-DIM is a single color ZigBee remote control that enables switch and dimming control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices, and each group can bind maximum 30 devices.
It is a low cost ZigBee remote powered by a 3VDC button battery due to robust, reliable ZigBee PRO networking. Compatible with existing frames from Berker, Gira, Jung and Merten, the ZigBee remote is easy to be mounted on the wall.
The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
| Operation Frequency | 2.4GHz |
|---|---|
| Transmission Range (free field) |
30m |
| Power Supply | 3VDC (CR2450) |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimming Range | 0.1%-100% |
| Dimensions | 71.2×71.2×13.6mm |
| Protection Type | IP20 |
