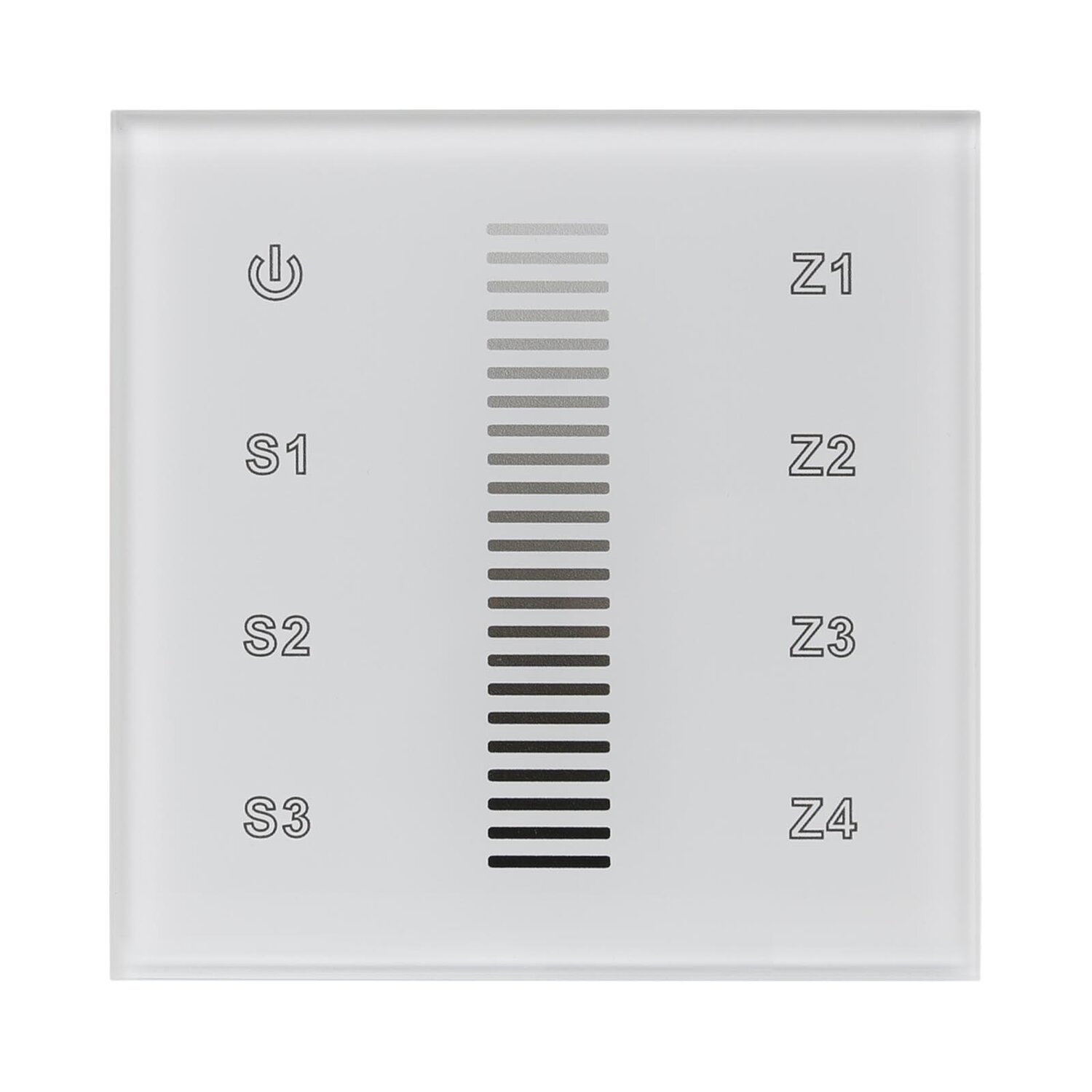

Wall Mounted LED touch dimmer switch SR-2830ADMX is a DMX512 LED controller which designed in accordance with standard protocol DMX512(1990) and offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, and designed with touch color line, the DMX512 master controller features accurate smooth dimming and switching functions without any flickering.
Each dimmer can control 4 different zones separately or synchronously with endless decoders in each zone, and 3 brightness or scenes can be saved for each zone. Smooth dimming from 0.1% to 100% without any flickering delivers comfortable lighting to human eyes.
Humanization backlighting function enables the DMX512 dimmer switch to be found even in the dark.
| Output Signal | DMX512 signal |
|---|---|
| Power Supply | 12-24VDC |
| Power consumption | < 20 mA |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 86x86x29.1mm |
