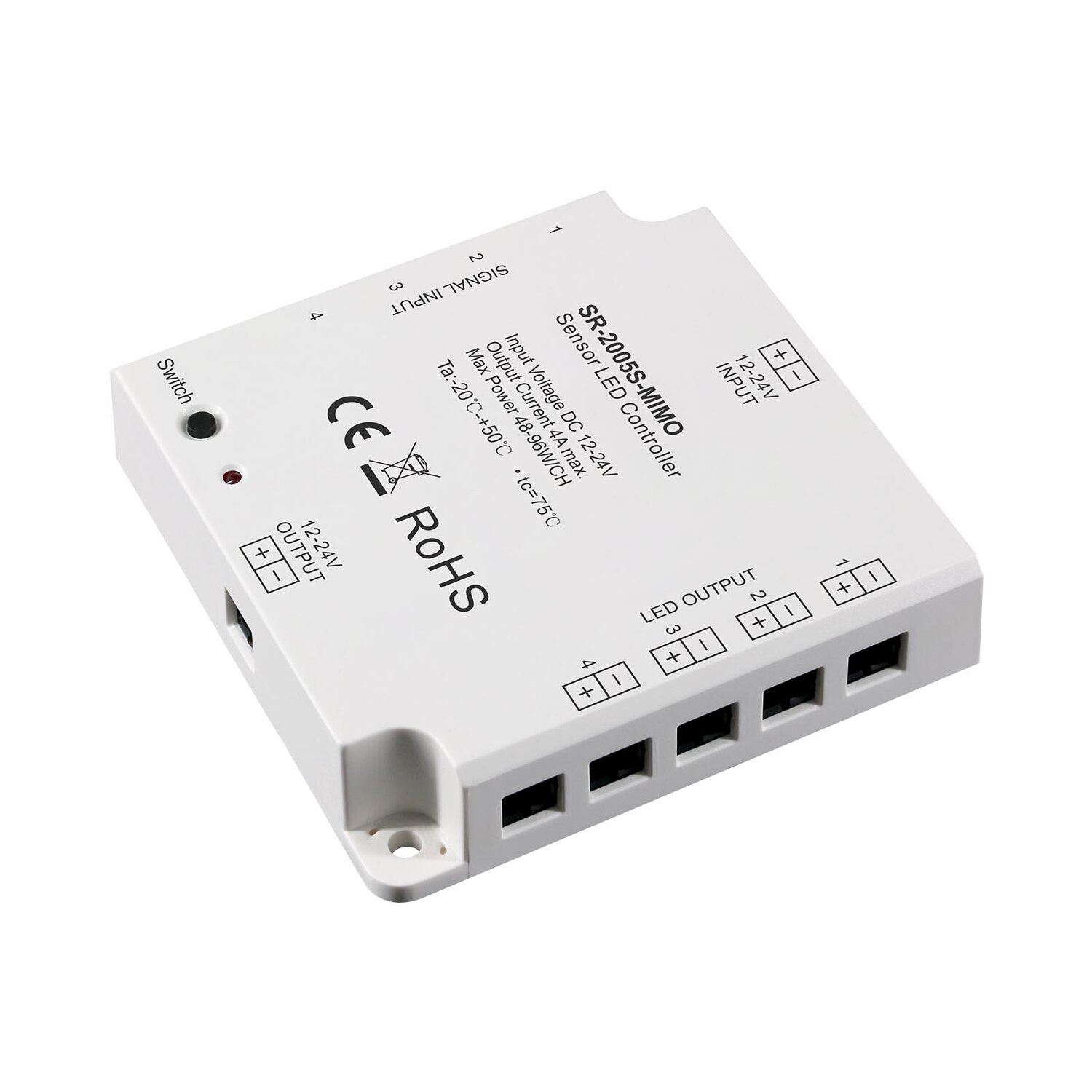

The Sensor LED Controller features 4 channels of sensor input and 4 channels of LED output, compatible with three types of sensors: IR sensor, PIR sensor, and push switch. It offers six different control modes, selectable via a program key on the controller.
With its super slim design, plug-and-play functionality, and ease of use, this controller is ideal for cabinet lighting applications.
| Signal Input | 4 x Sensor | 4 x Sensor |
|---|---|---|
| Input Voltage | 12V | 24V |
| Output Voltage | 4x12V | 4x24V |
| Output Power | 0-48W | 0-96W |
| Output Current | Max.4A | Max.4A |
| Size (LxWxH) | 70x70x16mm | 70x70x16mm |
| Working Temp | -20℃-+50℃ -4°F- +122°F |
-20℃-+50℃ -4°F- +122°F |
