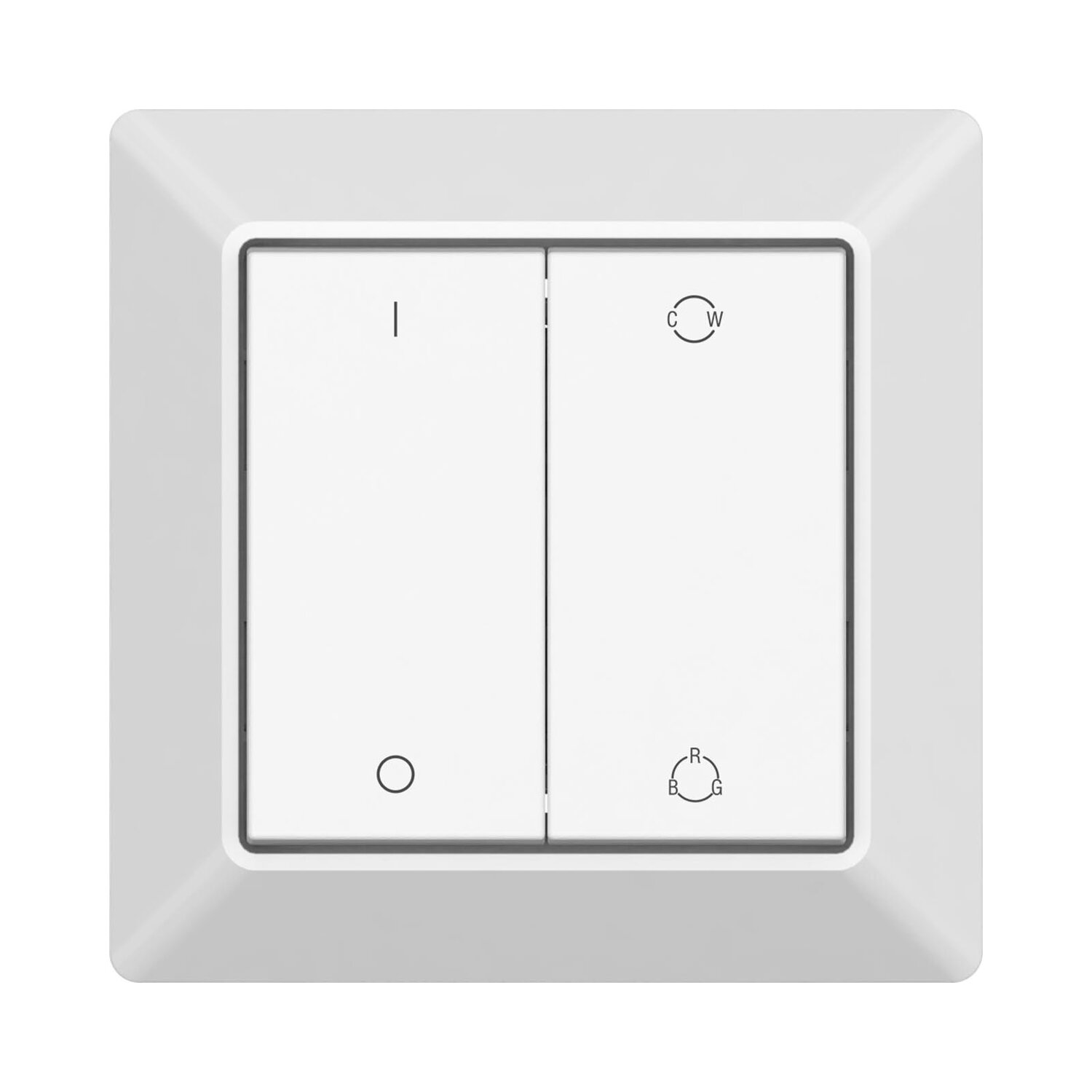

Product Description. This RGB, CCT, DIM 3-in-1 wall remote IS based on RF+Bluetooth Mesh.
For this self-powered wall remote, there is no battery replacement & re-installation costs. Moreover, with ultra long lifetime and more than 1 million times pushing, it is easily and quickly pair to the RF+Bluetooth receivers by simply pushing the buttons.
With standard size, this control is compatible with existing EU size frame. It enables to control 1 zone of receivers, and enables to control universal DIM, CCT, RGB, RGBW and RGB+CCT RF+Bluetooth devices.
Besides, with transmission frequency of 2.4 GHz, each receiver can be paired to max. 8 remote controls, and the transmission range between every two neighbor devices can be up to 30m. The controlled receiver status can be quickly synchronized to the smart APP.
| Protocol | 2.4G Mesh |
|---|---|
| Power Supply | Self powered by built-in nano generator |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 80.5×80.5×14.7mm / 86x86x14mm |
