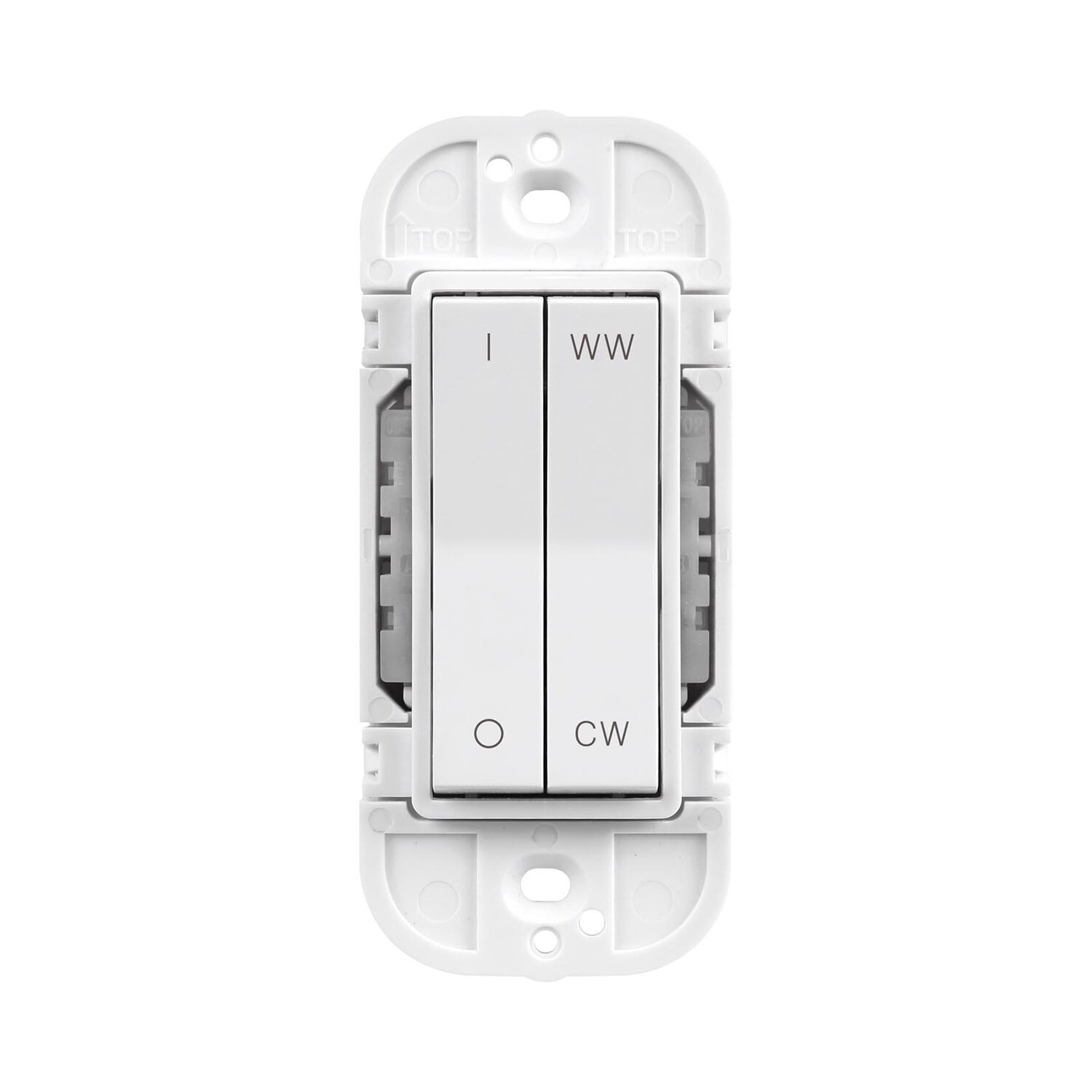

Product Description. This RF+Bluetooth CCT Wall Remote Controller is based on RF+Bluetooth Mesh.
For this self-powered wall remote, there is no battery replacement & re-installation costs. This controller is easily and quickly pair to the RF+Bluetooth receivers by simply pushing the buttons.
It enables to control 1 zone of receivers, and enables to control universal CCT RF+Bluetooth light devices. With mesh network for further control distance, receivers can transmit signal to each other, and each receiver can be paired to max. 8 remote controls.
The controller’s transmission frequency is 2.4 GHz, and the transmission range between every two neighbor devices up to 30m. Besides, with standard size, this control is compatible with existing EU size frame.
| Protocol | 2.4G Mesh |
|---|---|
| Power Supply | Self powered by built-in nano generator |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 44.9×106.2×19.2mm |
