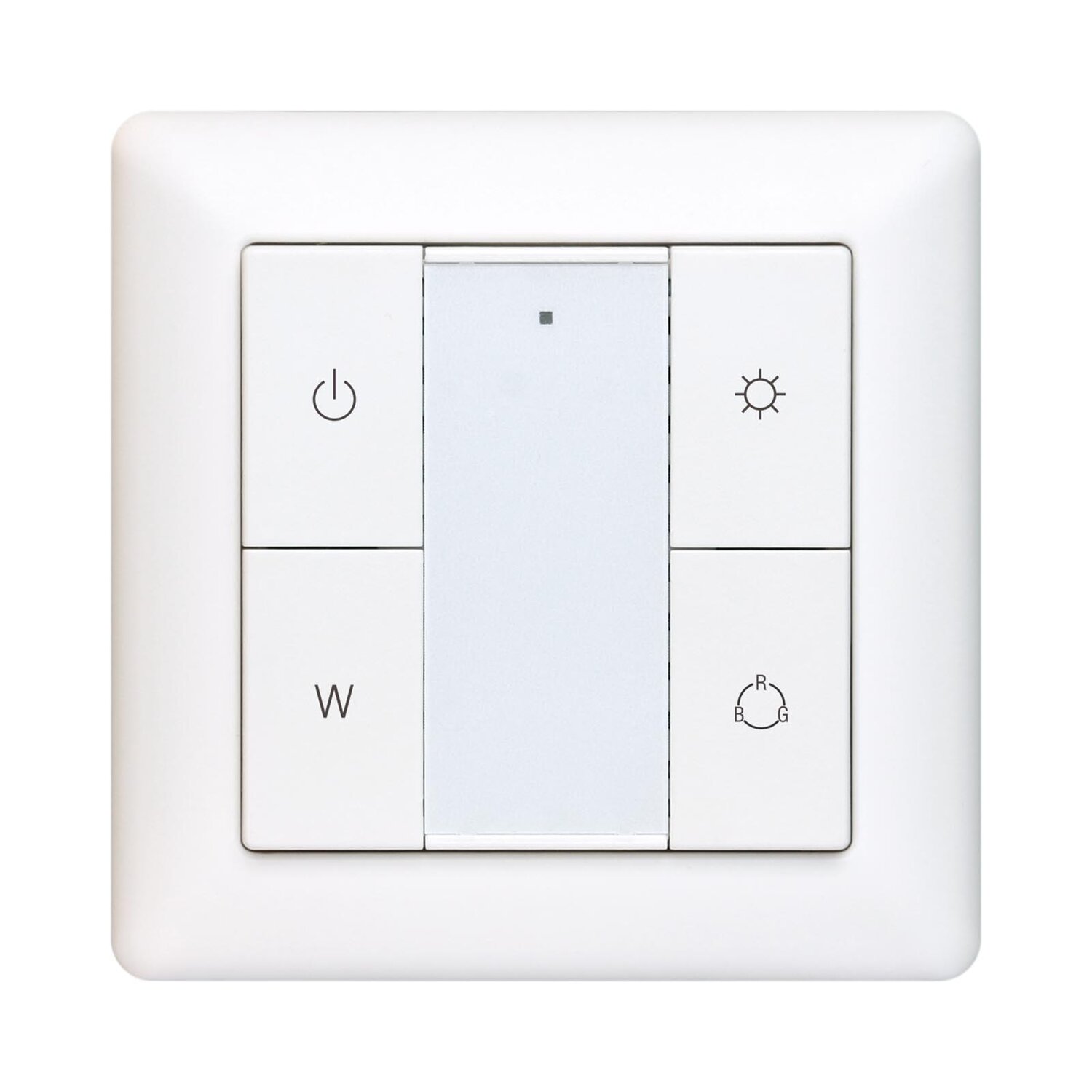

The RGBW Wall Mounted ZigBee Remote Controller is a Zigbee 3.0 remote that allows pairing with Zigbee lighting devices via touchlink commissioning without a coordinator, supports find and bind mode to connect with devices in the same network, manages one group with up to 30 lighting devices, operates on the 2.4 GHz global frequency, features long battery life mesh technology with a transmission range of up to 30 meters, and is compatible with universal Zigbee gateways as well as RGBW and RGB+CCT Zigbee lighting devices.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3VDC (CR2450) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimensions | 71.2×71.2×13.6mm |
