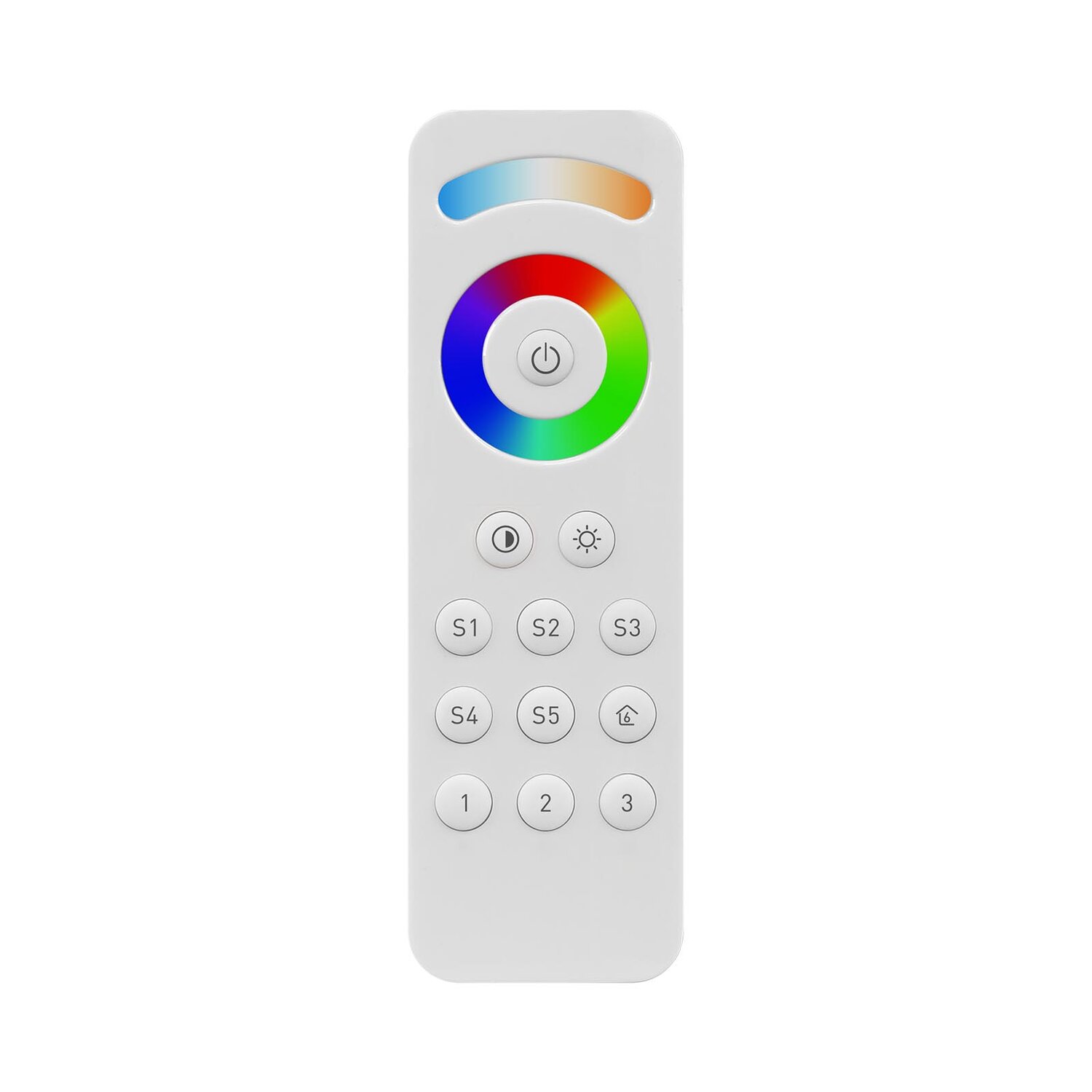

The RGB CCT DIM 3 in 1 Zigbee Remote is a Zigbee 3.0-based battery-powered controller that enables precise and responsive control of DIM, CCT, RGB, RGBW, and RGB+CCT Zigbee lighting devices via a highly sensitive touch color wheel, supports Touchlink commissioning and find and bind pairing, allows binding of up to 30 devices across 3 groups, features 6 preset scenes with memory for 5 custom scenes, enables RGB saturation adjustment, operates on 2.4 GHz globally with up to 30m transmission range, and is compatible with universal Zigbee Gateway products.
| Protocol | ZigBee 3.0 |
|---|---|
| Operation Voltage | 3V(2*AAA battery) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Dimming Range | 0.1%-100% |
| Dimension | 140x44x17mm |
| Protection Grade | IP20 |
