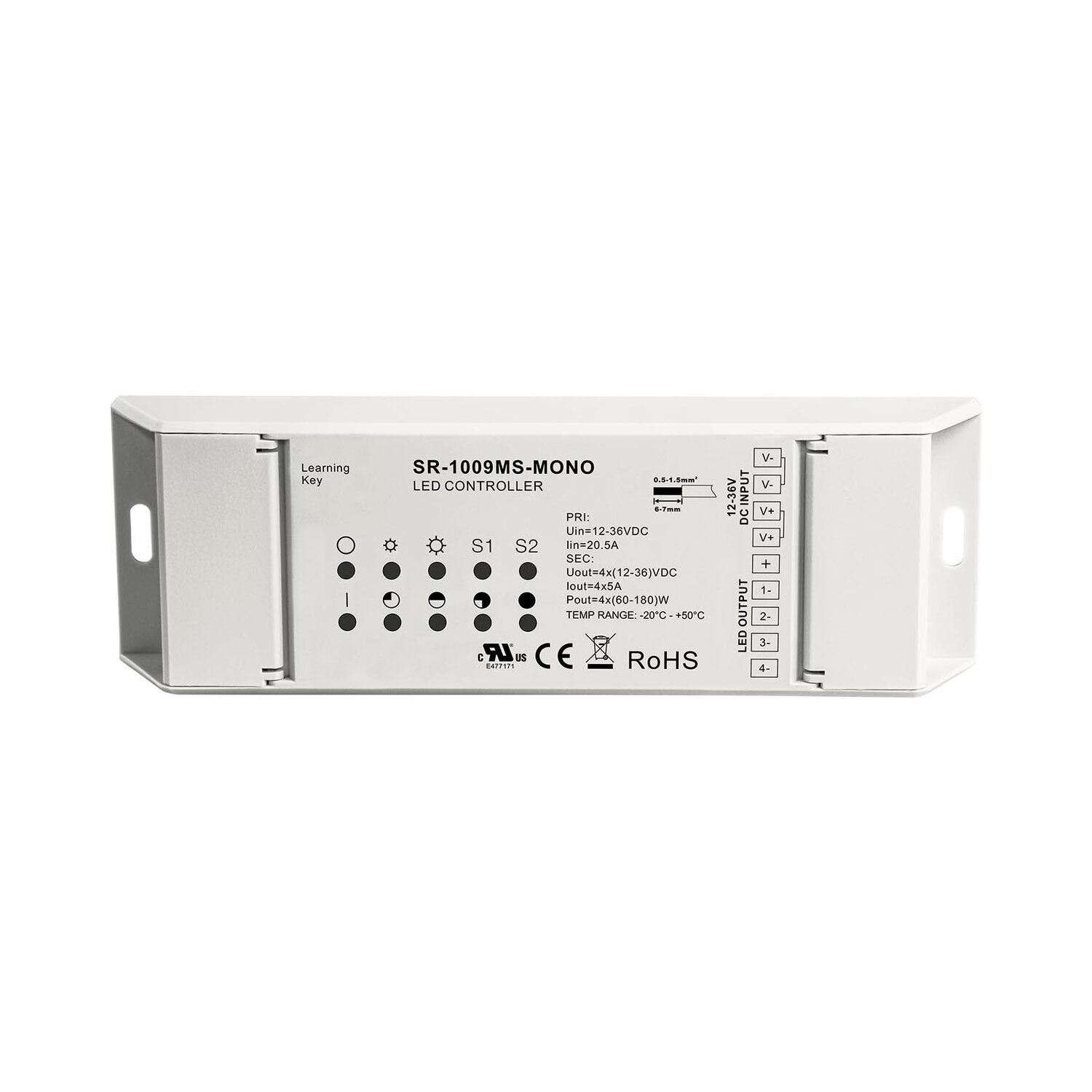

The RF+Manual LED Controller offers reliable and stable switch and dimming control without any flicker, ensuring smooth operation. It features a memory function that recalls the last scene, providing convenience and consistency in lighting setups.
The controller is capable of managing one zone and supports two different scenes, offering flexibility in lighting control.
| Product Data | Product Data |
|---|---|
| Output Power | 4x(60-180)W |
| Output Current | 4x5A |
| Power Supply | 12-36VDC |
| Connector Current Rating | Max. 10A |
| Wire Size | 0.32-3.3mm (12-22AWG) 2 |
| Temperature range | -20-+50℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 170×53.4x28mm |
| RF Remote | RF Remote |
| Output | RF signal |
| Operation Frequency | 869.5/916.5/434MHz |
| Power Supply | 3V(1xCR2025 battery) |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 136.3×38.9×10.7mm |
