The RF+Manual LED Controller offers reliable and stable switch and dimming control without any flashing, ensuring smooth operation. It features a memory function that recalls the last scene, and it allows control of one zone with two selectable scenes for added versatility.
| Output Power | 4x(60-180)W |
|---|---|
| Output Current | 4x5A |
| Power Supply | 12-36VDC |
| Connector Current Rating | Max. 10A |
| Wire Size | 0.32-3.3mm (12-22AWG) 2 |
| Temperature range | -20-+50℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 170×53.4x28mm |

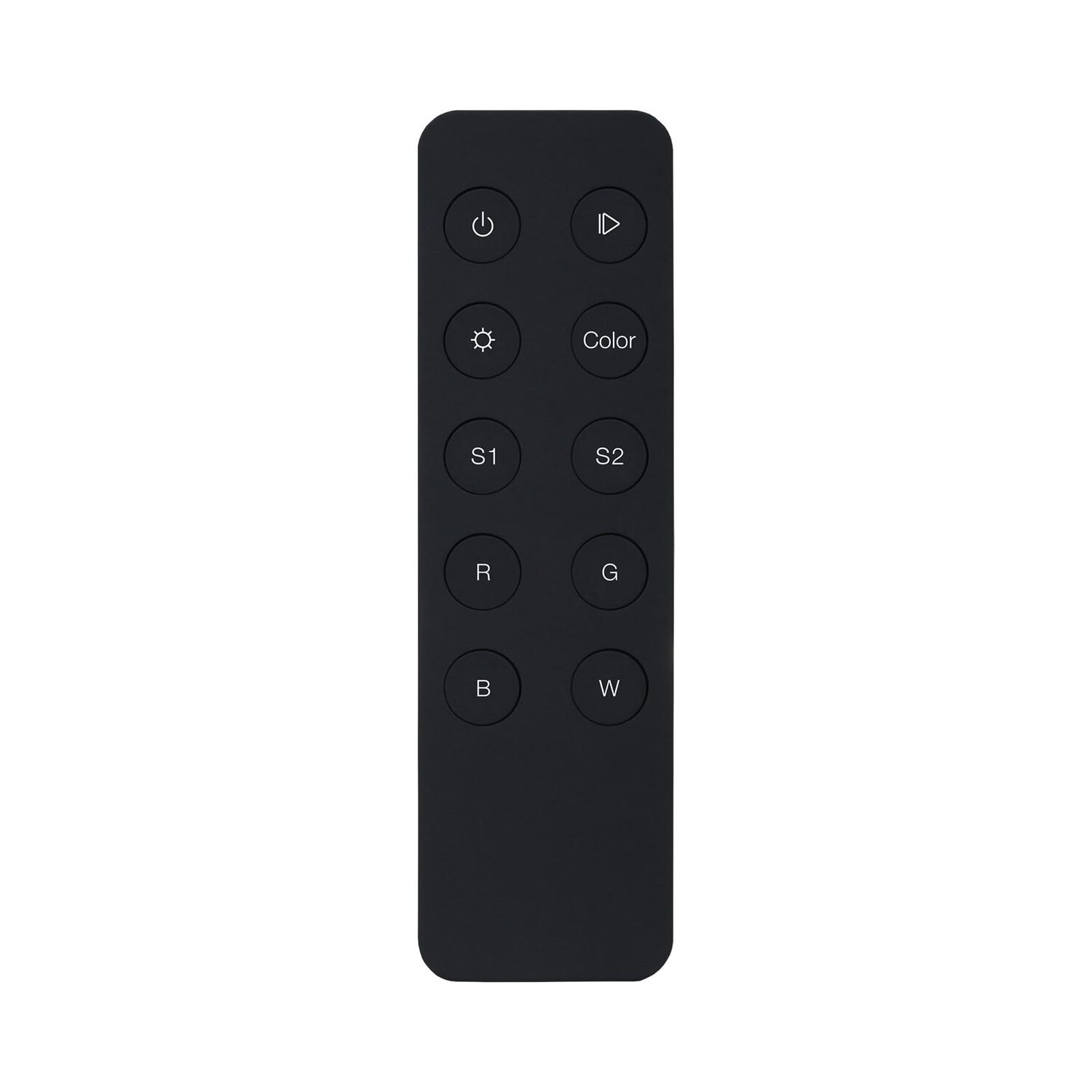

| RF Remote | RF Remote |
| Output | RF signal |
| Operation Frequency | 869.5/916.5/434MHz |
| Power Supply | 3V(1xCR2025 battery) |
| Operating temperature | 0-40℃ |
| Relative humidity | 8% to 80% |
| Dimensions | 136.3×38.9×10.7mm |
