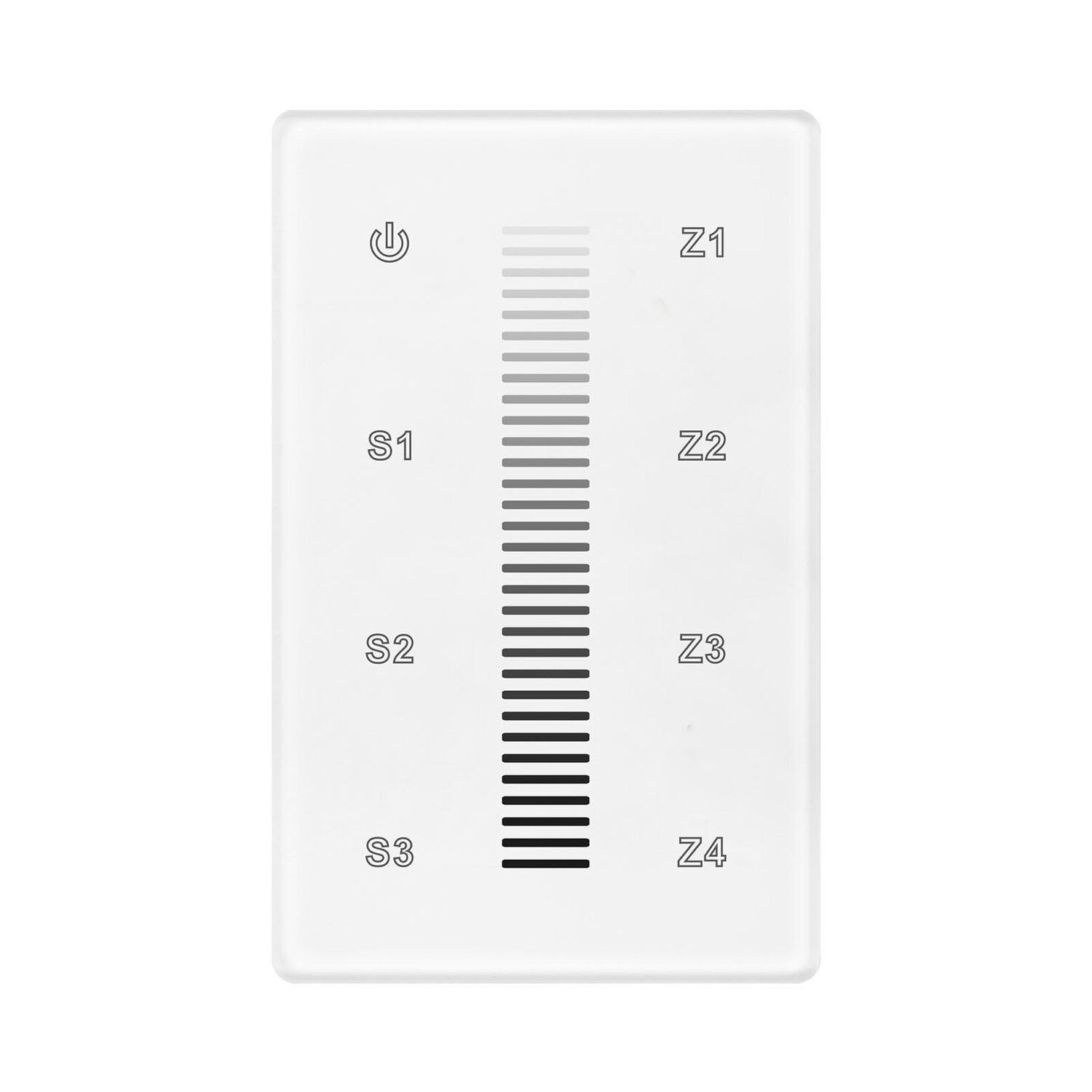

The RF Single Color Wall Mounted Controller features a touch-sensitive glass interface in white and black, and is compatible with all universal series RF receivers, operating on a frequency of 916.5MHz. It allows for single color control and can manage up to four zones both synchronously and separately.
| Versions | DC Version | AC Version |
|---|---|---|
| Output Signal | RF signal | RF signal |
| Power Supply | 12-24VDC | 100-240VAC |
| Power consumption | < 20 mA | < 15 mA |
| Operating temperature | 0-40℃ | 0-40℃ |
| Relative humidity | 8% to 80% | 8% to 80% |
| Dimensions | 75x120x29.1mm | 75x120x29.1mm |
